160LET - Eaton Bussmann 160A 240V High Speed British Standard Fuse Class aR 200kA Interrupt

160LET

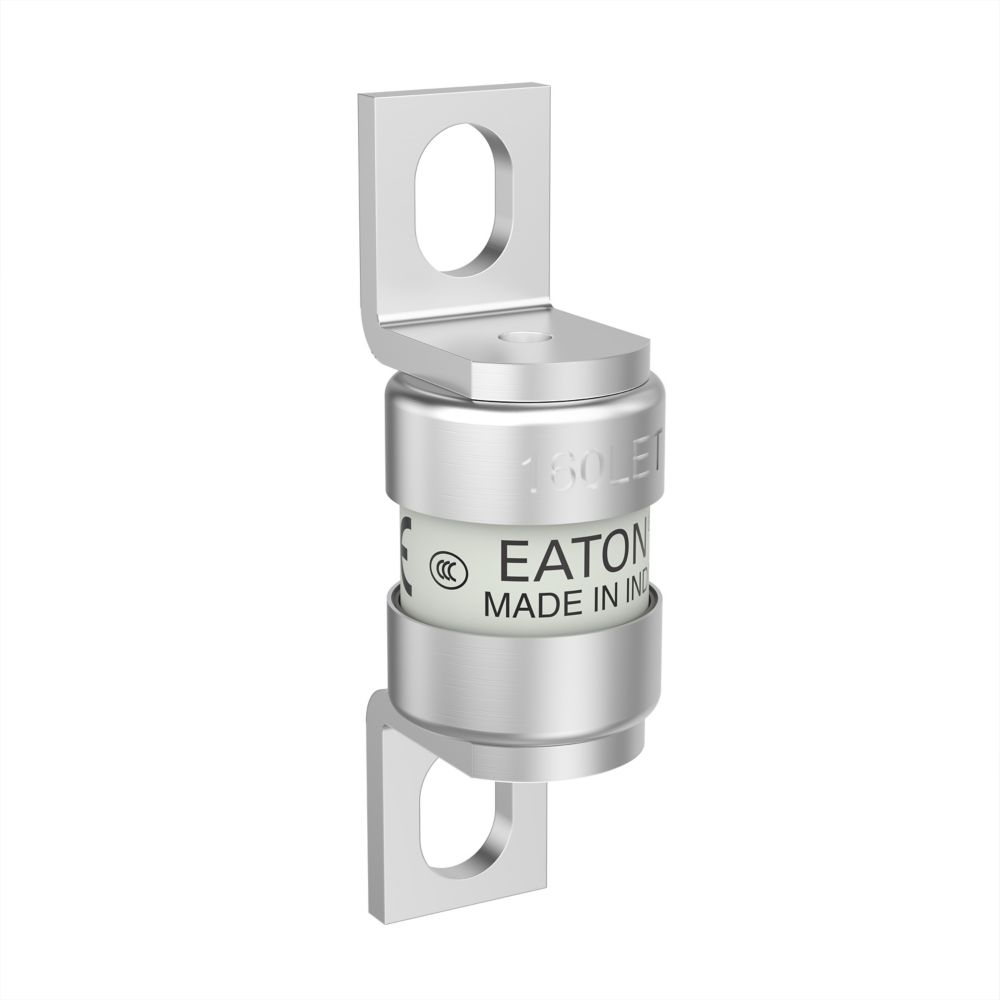

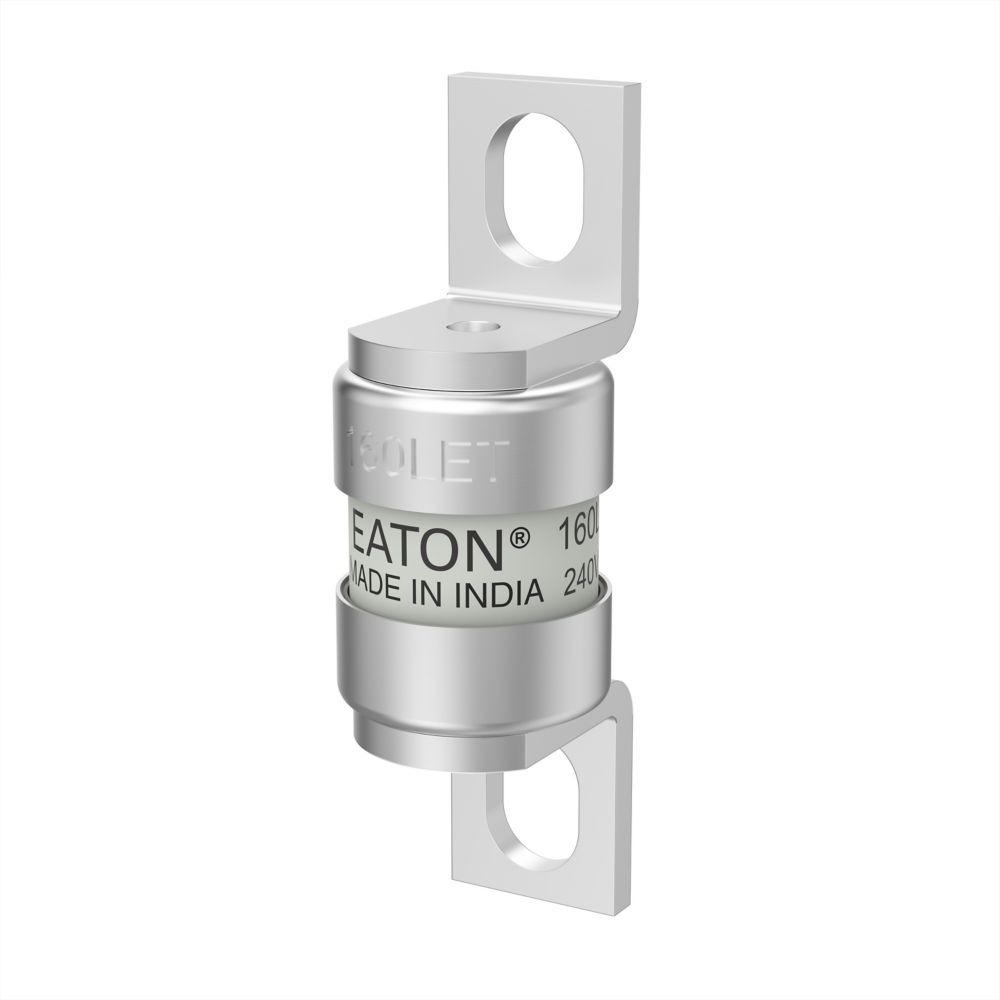

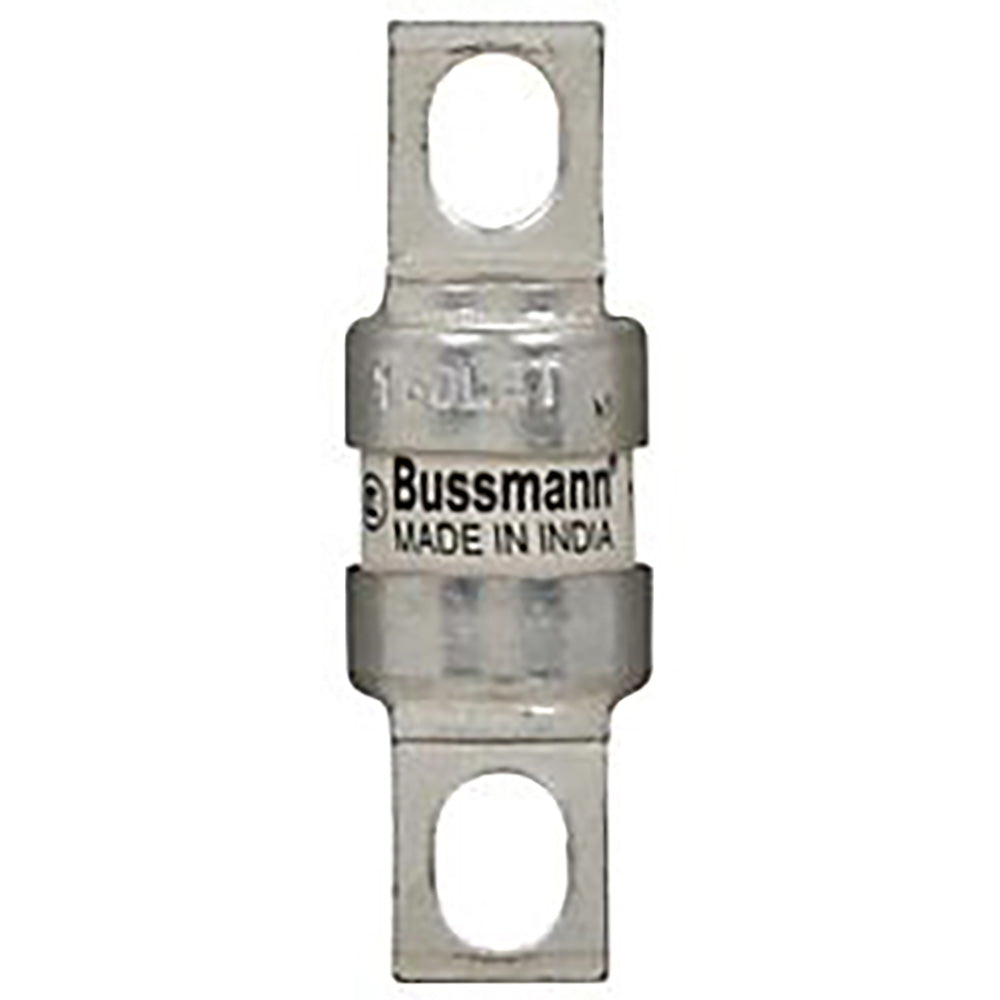

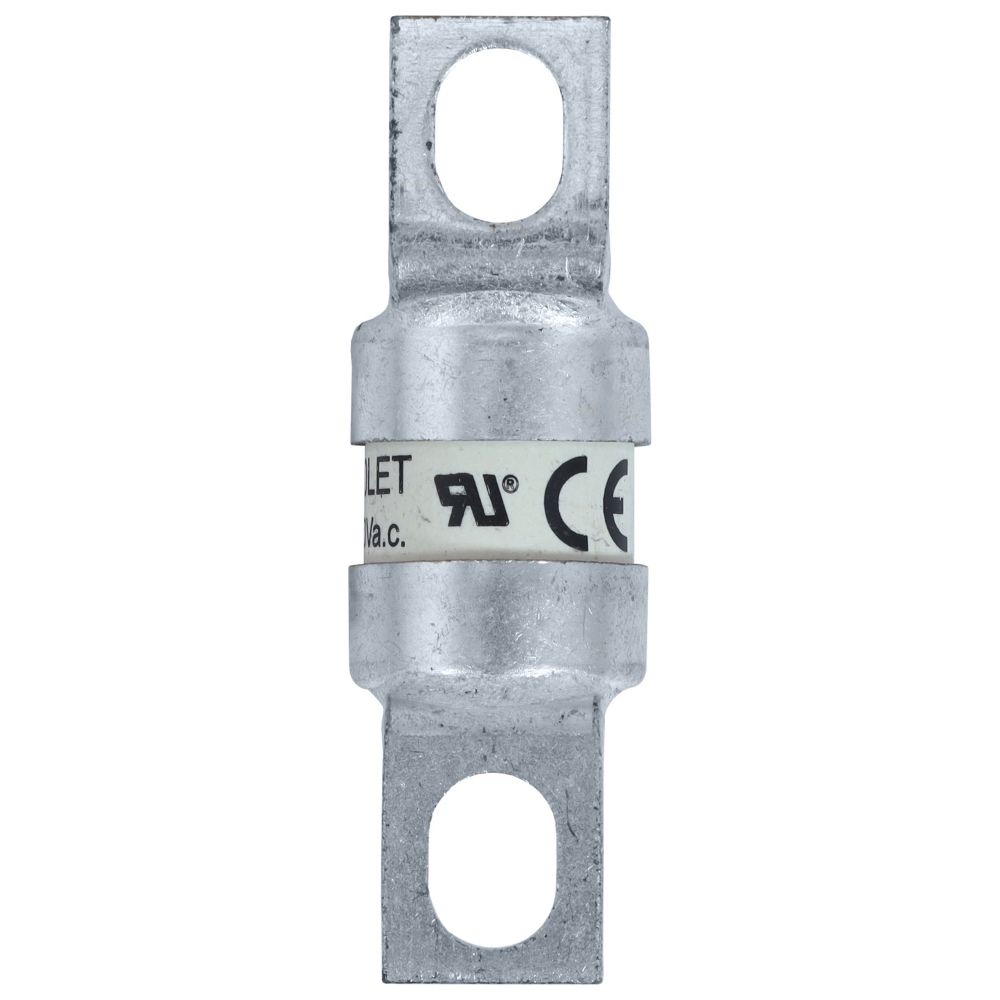

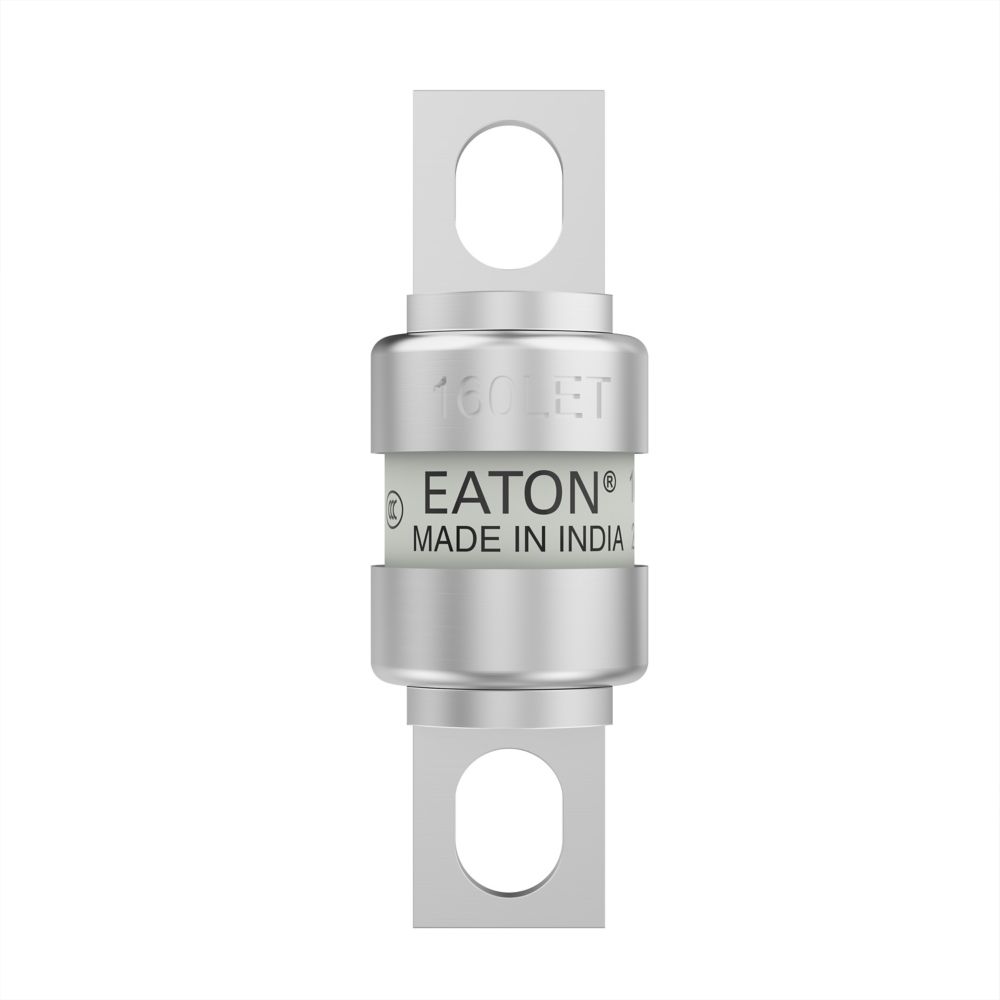

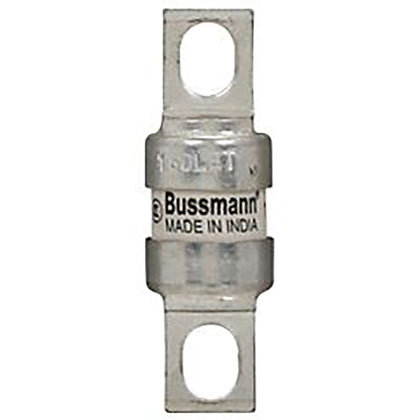

160LET is a high speed British standard fuse from Eaton Bussmann series rated at 160 amps and 240 volts AC.

This semiconductor fuse features a Class aR rating with a 200 kA RMS symmetrical interrupt capacity, suitable for protecting power converters, DC drives, and semiconductor circuits. It has a stud mounting type with a cartridge body and blade end terminals. Certified to IEC 60269-4 and UL recognized, it complies with CE and RoHS standards. The fuse offers excellent cycling capability, low arc voltage, and low energy let-through for reliable performance.

Key Specifications
• Amperage: 160 A
• Voltage Rating AC: 240 V
• Voltage Rating DC: 150 V
• Interrupt Rating: 200 kA RMS Symmetrical, 50 kA DC at 150 VDC
• Class: aR
• Mounting Type: Stud
• Fuse Body: Cartridge
• Terminal Type: Blade End
• Certifications: IEC 60269-4, UL Recognized, CE Marked, RoHS Compliant
• Application: Semiconductor protection, DC drives, power converters
• Physical Size: Approx. 56 mm length x 18 mm diameter

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 160LET
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : BS 88
• Type : LET
• Voltage : 240
• Amperage : 160
• AIC rating : 200kA@240Vac
• Connection : Stud

Product Data

• UPC : 051712831598
• GTIN : 00051712831598
• Country of Origin : India
• Dimensions : 55 mm x 18 mm x 18 mm (Length/Depth x Height x Width)
• Weight : 0.0736
