Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

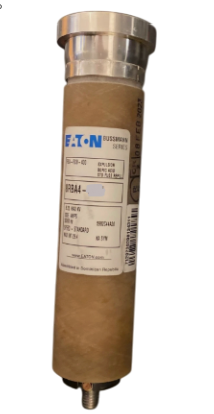

15RBA4-65E
15RBA4-65E is an Eaton RBA4 medium voltage fuse rated for 65 amperes and 14,000 volts nominal voltage.
This single barrel expulsion fuse is designed for medium voltage power protection applications. It features a standard speed class E rating with a maximum voltage of 16 kV and an interrupting rating of 29.4 kA at 14.4 kV. The fuse is constructed with glass epoxy and is suitable for use in RDB fuseholders, although mounting options for BA refills are no longer available. It meets IEEE Std. C37.41 certification standards.
- Amperage Rating: 65A
- Nominal Voltage: 14 kV
- Maximum Voltage: 16 kV
- Interrupt Rating: 29.4 kA @ 14.4 kV
- Type: RBA4 Single Barrel
- Class: Class E Standard Speed
- Construction: Glass Epoxy
- Certification: IEEE Std. C37.41
- Compatible with RDB Fuseholders
- Dimensions: 8.88 in length, 2.2 in width, 2.2 in height
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 15RBA4-65E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Section : Fuse Refills
- Family : RBA
- Type : RBA4
- Voltage : 14400
- Amperage : 65
- AIC rating : [email protected]
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 786670232971
- GTIN : 00786670232971
- Country of Origin : Dominican Republic
- Dimensions : 12.5 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 2.04
- Certification : IEEE Std. C37.41
