Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
15RBA4-15E

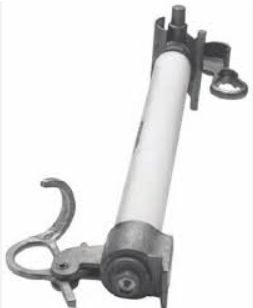

15RBA4-15E is an Eaton Type RBA4 Standard Speed Expulsion Fuse Refill Unit designed for medium voltage power distribution applications. This refill unit is engineered to replace superseded BA fuses and provides reliable circuit protection in indoor installations when paired with appropriate discharge filters or condensers. The unit features standard speed operation characteristics that comply with ANSI C37.46 E-Rated fuse performance standards, ensuring defined current response times and electrical interchangeability with other E-Rated fuses of the same classification. Key Specifications
- Amperage Rating: 15 A
- Voltage Rating: 15.5 kV
- Fuse Type: Type RBA4 Standard Speed Expulsion
- Class: E-Rated
- Length: 12 inches
- Width: 2.3 inches
- Depth: 2.3 inches
- Certification: UL Listed, Guide JEEG, File E240398
- Standards Compliance: ANSI C37.46
Specifications
- Part Number: 15RBA4-15E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Section : Fuse Refills
- Family : RBA
- Type : RBA4
- Voltage : 14400
- Amperage : 15
- AIC rating : [email protected]
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 78667023261
- GTIN : 00786670232612
- Country of Origin : Dominican Republic
- Dimensions : 12.5 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 2.3
- Certification : IEEE Std. C37.41
