Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
15RBA2-175E

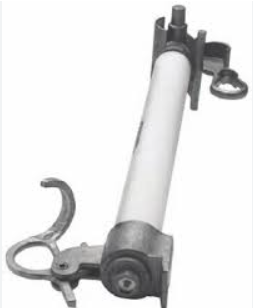

15RBA2-175E is an Eaton RBA2 type standard speed expulsion fuse refill unit designed for medium voltage power system protection up to 15.5 kV. This E-rated fuse is engineered for feeder circuit, switchgear, and transformer protection applications in indoor and outdoor installations. The RBA2 series provides reliable performance with time-current characteristics that meet IEEE/ANSI C37.46 standards for consistent coordination across different manufacturers' equipment.
- Amperage Rating: 175A
- Maximum Voltage: 15.5 kV
- Fuse Type: RBA2 Standard Speed Expulsion
- Class: E-Rated
- Interrupting Rating: 31.5-63 kA (symmetrical)
- Mounting: Refill Unit
- Standards: IEEE/ANSI C37.46, UL Listed Guide JEEG File E240398
- Application: Feeder circuit, switchgear, transformer protection
- Operating Range: Indoor/Outdoor
Specifications
- Part Number: 15RBA2-175E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Accessory
- Family : RBA
- Type : RBA2
- Voltage : 14400
- Amperage : 175
- AIC rating : [email protected]
- Class Rating : E
- Barrels : 1
Product Data
- UPC : 197573000787
- Dimensions : 11 in x 2.2 in x 2.2 in (Length/Depth x Height x Width)
- Weight : 1.2
