Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

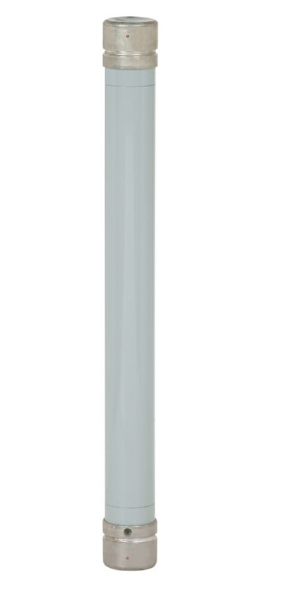

15RBA2-125E
15RBA2-125E is a medium voltage expulsion fuse refill designed for reliable circuit protection in industrial and commercial power distribution systems.This Eaton RBA fuse refill is rated for 125A continuous current and 14.4kV nominal voltage, with a maximum voltage of 15.5kV. It is classified as E Class and features a standard speed characteristic. The fuse is compatible with RBA and RDB fuseholders and is suitable for indoor applications when used with an exhaust control device. The design includes a 1-barrel configuration and is engineered to meet IEEE Std. C37.41 requirements.
- Part Number: 15RBA2-125E
- Manufacturer: Eaton
- Fuse Type: Medium Voltage Expulsion
- Amperage Rating: 125A
- Voltage Rating: 14.4kV nominal, 15.5kV maximum
- Class: E Class
- Speed: Standard
- Mounting: Compatible with RBA and RDB fuseholders
- Interrupt Rating: 14.4kA @ 14.4kV
- Series/Frame: RBA-200
- Certifications: IEEE Std. C37.41
- Application: Indoor, with exhaust control device
Specifications
- Part Number: 15RBA2-125E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Section : Fuse Refills
- Family : RBA
- Type : RBA2
- Voltage : 14400
- Amperage : 125
- AIC rating : [email protected]
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 786670230052
- GTIN : 00786670230052
- Country of Origin : Dominican Republic
- Dimensions : 10.8 in x 1.9 in x 2 in (Length/Depth x Height x Width)
- Weight : 1
- Certification : IEEE Std. C37.41
