Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
15NLE40E

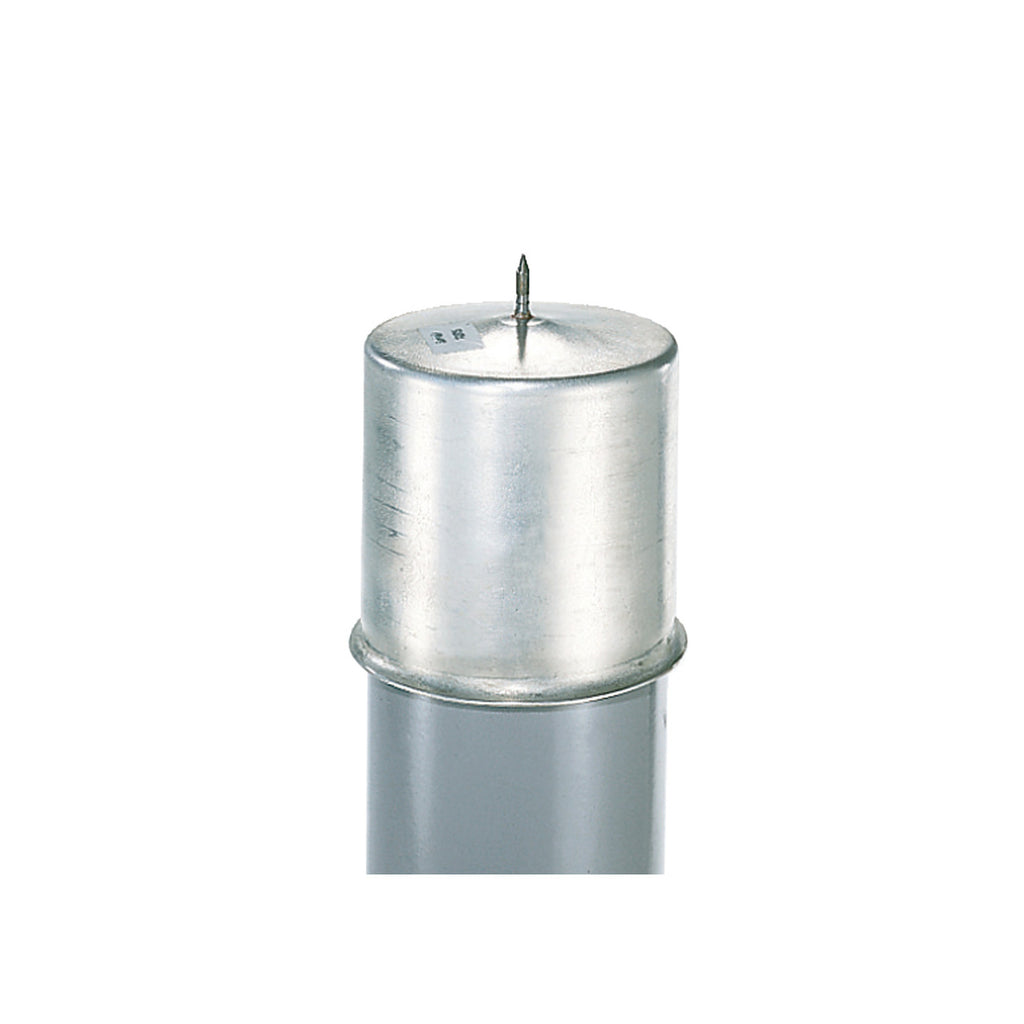

15NLE40E is a Littelfuse E Rated Medium Voltage Fuse designed for reliable protection in medium voltage applications. This cartridge fuse features a 15.5 kVAC voltage rating and a 40A current rating, making it suitable for use in feeder, transformer, and substation circuits. The 15NLE40E is engineered for high interrupting capacity and dependable performance in demanding environments. The 15NLE40E fuse is constructed with a 3-inch diameter and a length of 23-7/8 inches. It is a single barrel cartridge fuse with a non-standard termination style, ideal for medium voltage systems requiring robust overcurrent protection. This fuse is commonly used in power centers, substations, and industrial power distribution systems.
- Part Number: 15NLE40E
- Manufacturer: Littelfuse
- Fuse Type: Cartridge
- Current Rating: 40A
- Voltage Rating AC: 15.5 kVAC
- Interrupting Rating: 60,000A at 15.5 kVAC
- Mounting Type: Barrel
- Series: E Rated
- Diameter: 3 inches
- Length: 23-7/8 inches
- Application: Feeder, Transformer, Substation
Specifications
- Part Number: 15NLE40E
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : E Rated
- Type : E Rated
- Voltage : 15500
- Amperage : 40
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 20
Product Data
- UPC : 079458042184
- GTIN : 00079458042184
- Weight : 14
