Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
15NLE280E

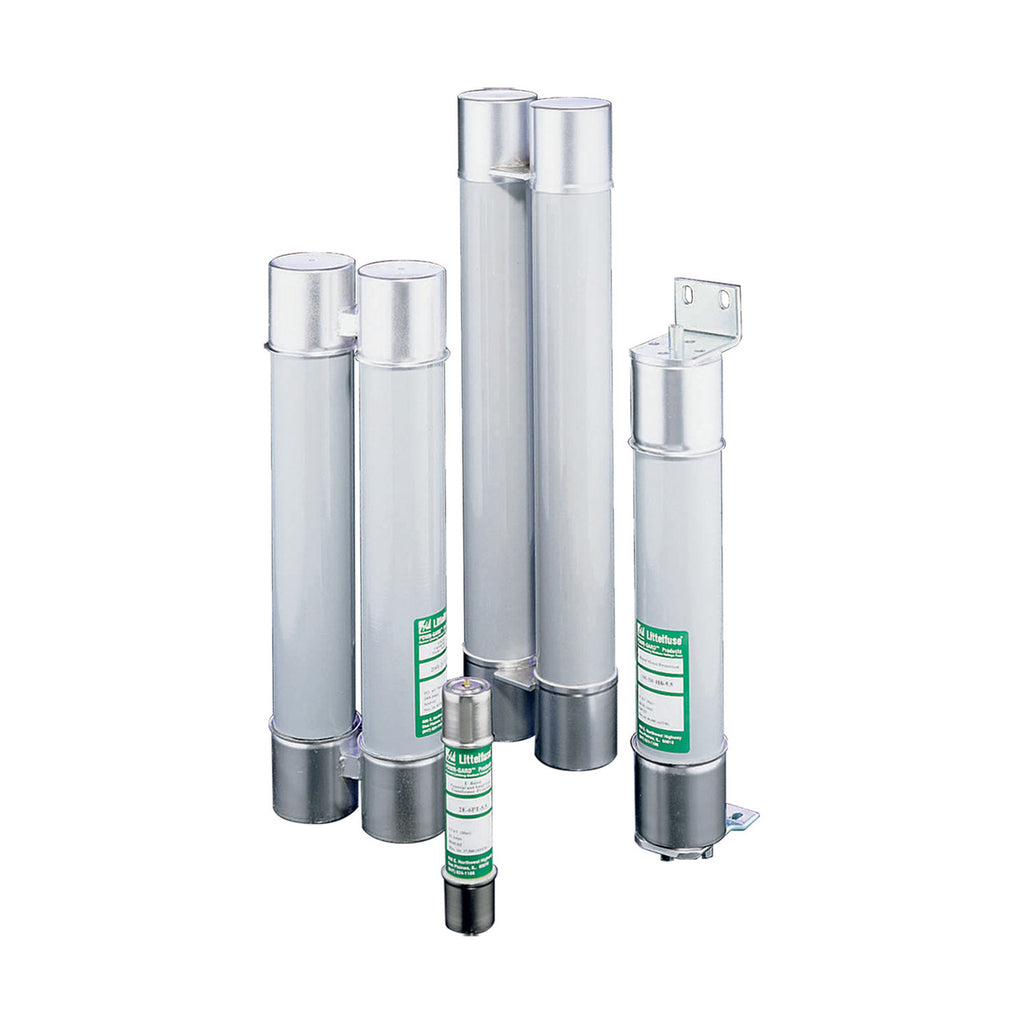

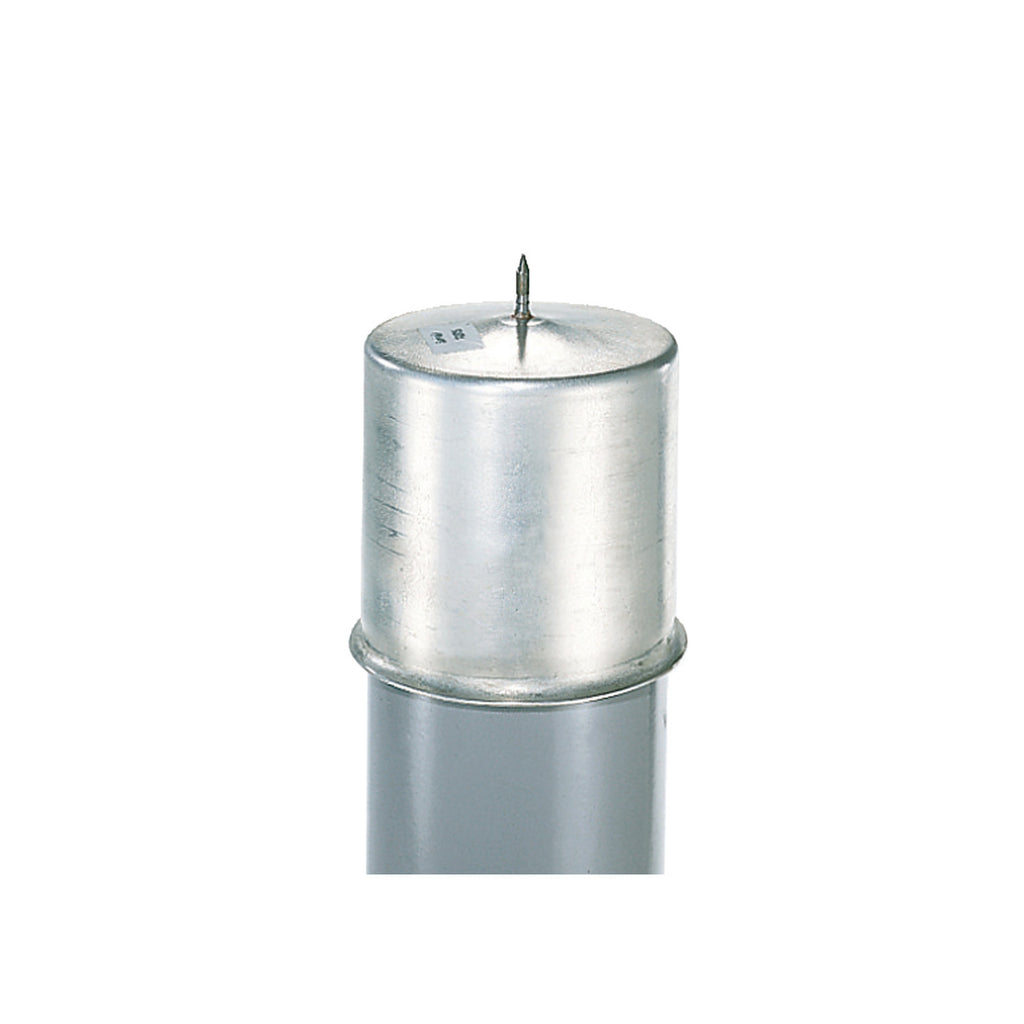

15NLE280E is an 80 amp, 15.5 kV E rated medium voltage fuse cartridge from Littelfuse designed for high voltage circuit protection.
This fuse features a 15.5 kVAC voltage rating with a 60,000 amp interrupting rating at 15.5 kVAC. It is a cartridge-style fuse with an 80E size group, measuring approximately 20 inches in length and 3 inches in diameter. The fuse is suitable for feeder, potential transformer, power center, power transformer, and substation applications requiring reliable medium voltage protection.
- Amperage: 80A
- Voltage Rating: 15.5 kVAC
- Fuse Type: E Rated Medium Voltage Fuse
- Interrupting Rating: 60,000 A at 15.5 kVAC
- Fuse Size/Group: 80E
- Termination Style: Cartridge (Non Standard)
- Length: 20 inches
- Diameter: 3 inches
- Application: Feeder, Potential Transformer, Power Center, Power Transformer, Substation
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 15NLE280E
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : E Rated
- Type : E Rated
- Voltage : 15500
- Amperage : 80
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 20
Product Data
- UPC : 007945804222
- GTIN : 00079458042221
- Weight : 27
