Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage
Description
15NLE100E

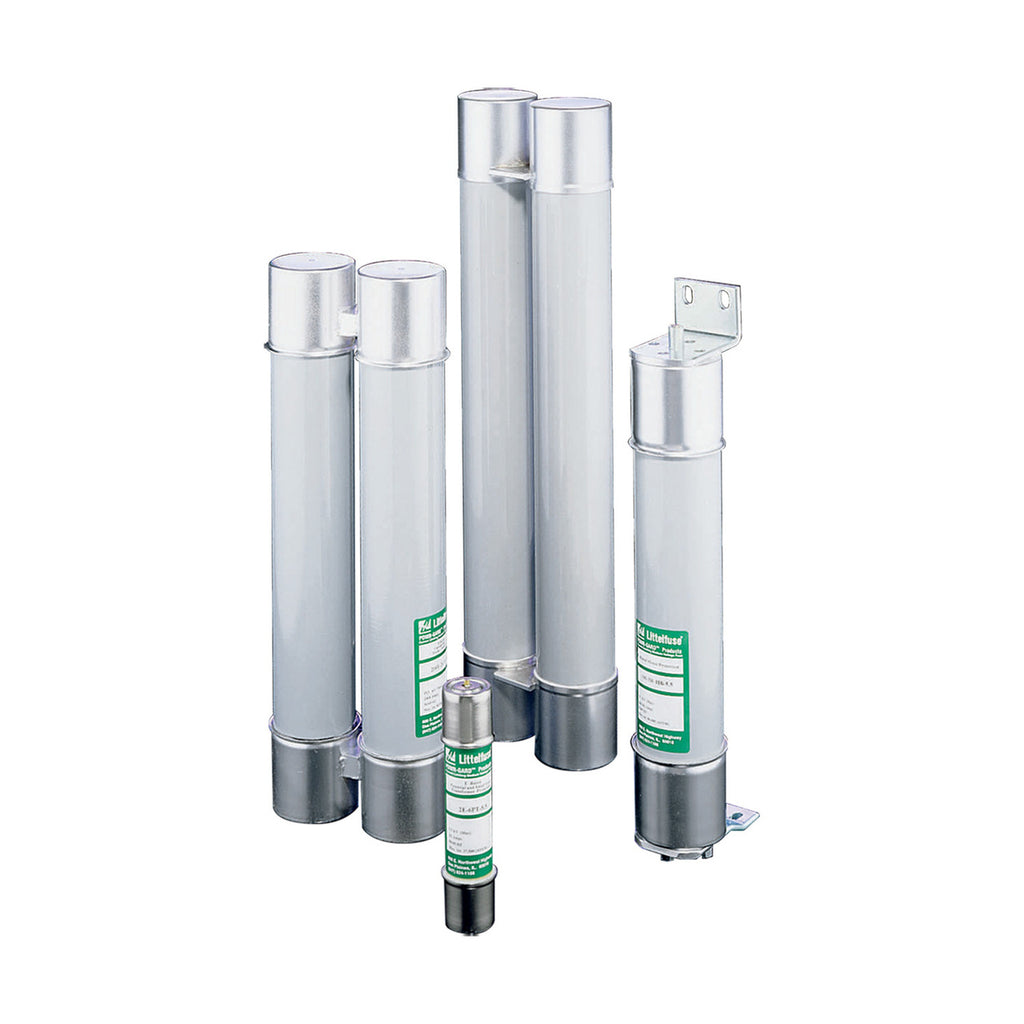

15NLE100E is a Littelfuse E-Rated medium voltage fuse designed for high-voltage electrical protection applications. This fuse provides reliable overcurrent protection for power distribution systems, including feeders, transformers, and substations.Engineered for use in medium voltage environments, the 15NLE100E features a cartridge (non-standard) termination style and a mechanical indicator for easy status monitoring. It is suitable for applications requiring a 15.5 kV AC voltage rating and a 100A current rating, with a robust interrupting capacity to handle fault currents safely.
- Part Number: 15NLE100E
- Manufacturer: Littelfuse
- Series: E-Rated
- Amperage: 100A
- Voltage Rating: 15.5 kV AC
- Interrupting Rating: 60 kA @ 15.5 kV AC
- Mounting Type: Ferrule Mounted
- Termination Style: Cartridge (Non Standard)

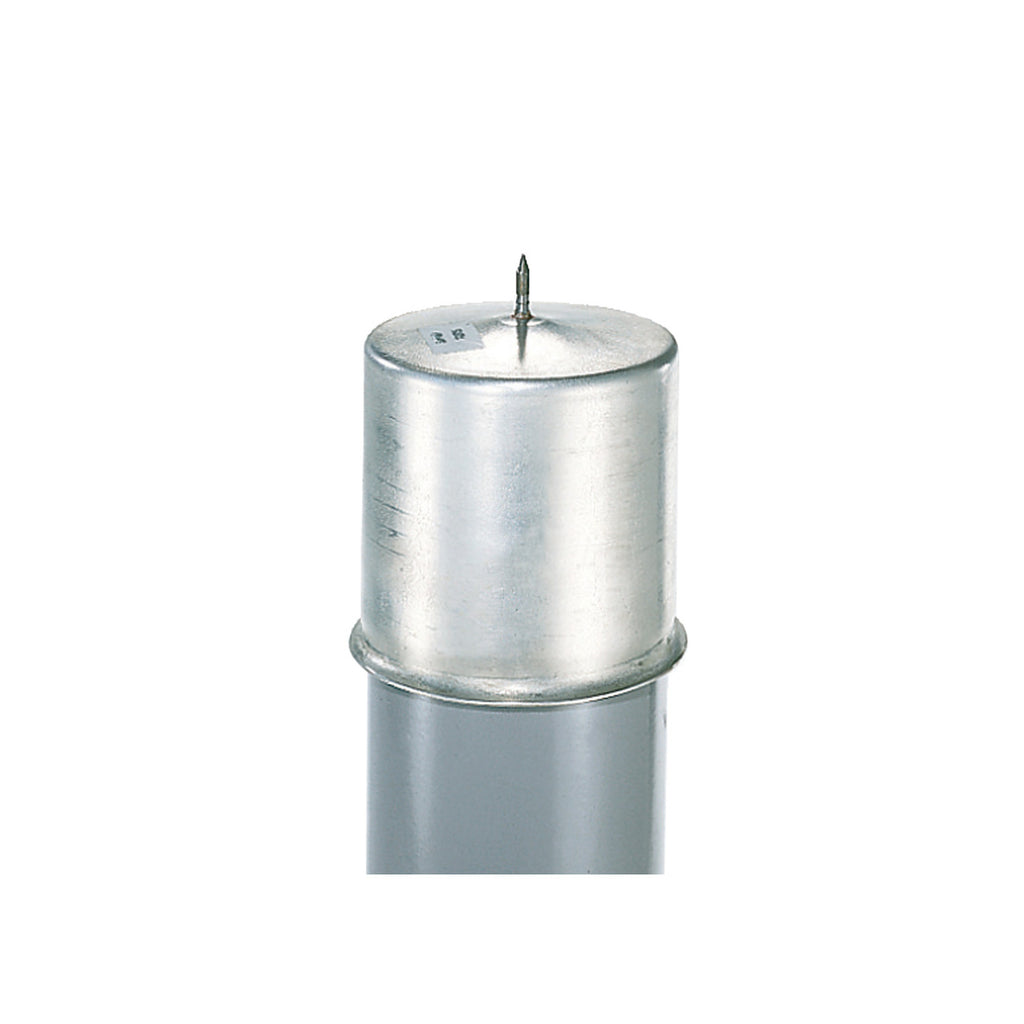

- Indicator Style: Mechanical Indicator
- Fuse Size/Group: 100E
- Application: Feeder, Transformer, Substation
- Dimensions: 20" x 23 7/8"
Specifications
- Part Number: 15NLE100E
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : Powr-Gard
- Type : E Rated
- Voltage : 15500
- Amperage : 100
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 20
Product Data
- UPC : 079458042238
- GTIN : 00079458042238
- Weight : 14
