Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

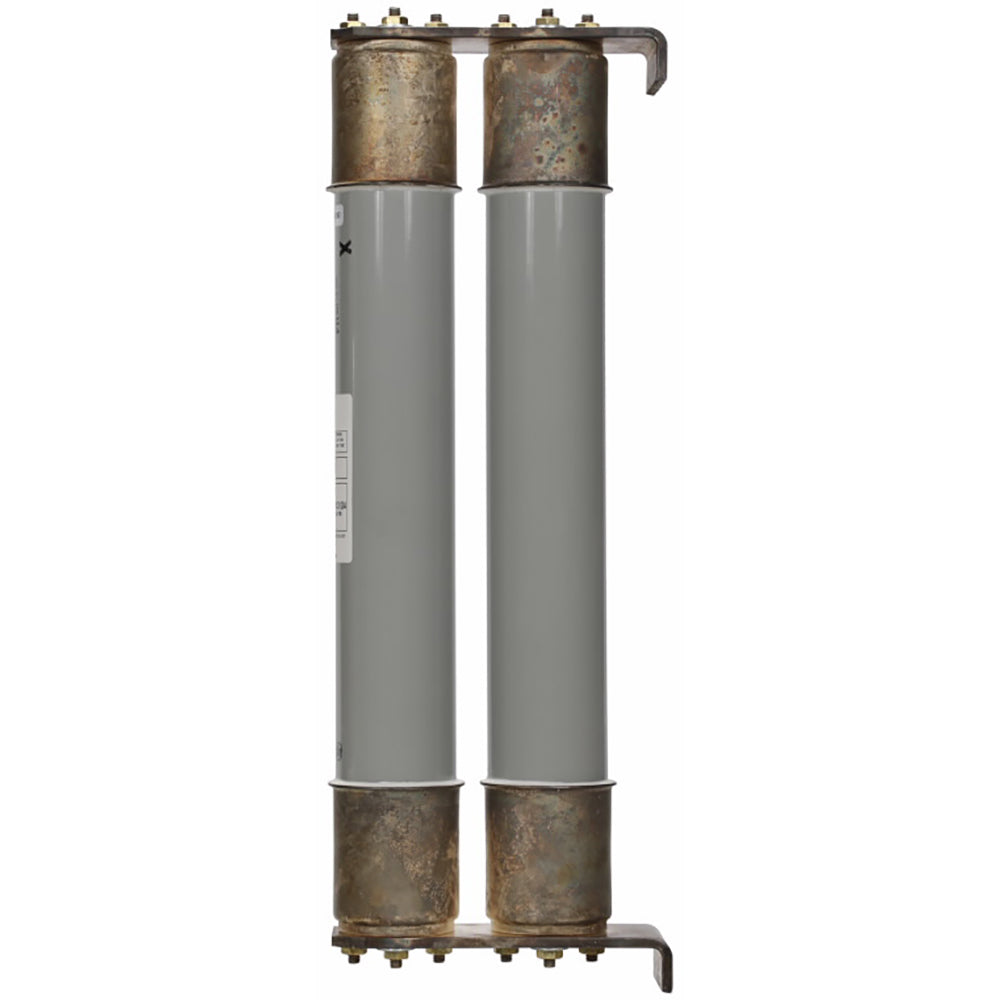

15HCL-150E
15HCL-150E is a Bussmann series Class E medium voltage cartridge fuse designed for feeder circuit, switchgear, and transformer protection applications.
This current-limiting fuse features a clip-lock design for secure mounting in medium voltage distribution equipment. The fuse provides reliable overcurrent protection with a 50 kA interrupting rating at 15.5 kV, making it suitable for industrial and utility power systems requiring ANSI C37.40 compliance.
- Voltage Rating: 15.5 kV
- Amperage: 150 A
- Fuse Type: Class E, E-Rated
- Interrupting Rating: 50 kA RMS Symmetrical
- Construction Type: Clip-Lock (HCL)
- Current Limiting: Yes
- Application: Feeder circuit, switchgear, transformer protection
- Standards: ANSI C37.40, UL Listed
- Cartridge Style: Medium voltage cartridge fuse
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 15HCL-150E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Voltage : 15500
- Amperage : 150
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
Product Data
- UPC : 782114892756
- GTIN : 00782114892756
- Country of Origin : Dominican Republic
- Dimensions : 25.06 in x 7.6 in x 3 in (Length/Depth x Height x Width)
- Weight : 20
- Certification : IEEE Std. C37.41
