2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
15CLE1-40E

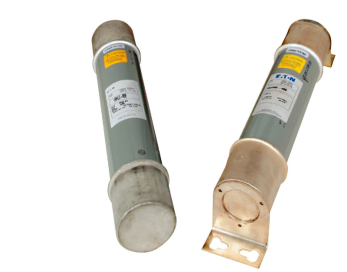

15CLE1-40E is an Eaton Bussmann series CLE medium voltage fuse designed for feeder circuit, switchgear, and transformer protection in indoor and outdoor applications. This single barrel, current-limiting fuse delivers reliable circuit protection with E-rated performance characteristics meeting ANSI C37.46 standards. Key Specifications
- Amperage Rating: 40A
- Voltage Rating: 15.5 kV AC
- Interrupt Rating: 63 kA RMS Symmetrical
- Fuse Type: Single Barrel Ferrule Style
- Fuse Diameter: 3 inches
- Overall Length: 23.9 inches
- E-Rated Classification
- UL Listed, Guide JEEG, File E240398
- Complies with IEEE Std. C37.41
- Conforms to ANSI C37.40
Specifications
- Part Number: 15CLE1-40E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Family : CLE
- Type : CLE-1
- Voltage : 15500
- Amperage : 40
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 21
Product Data
- Weight : 12
