Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

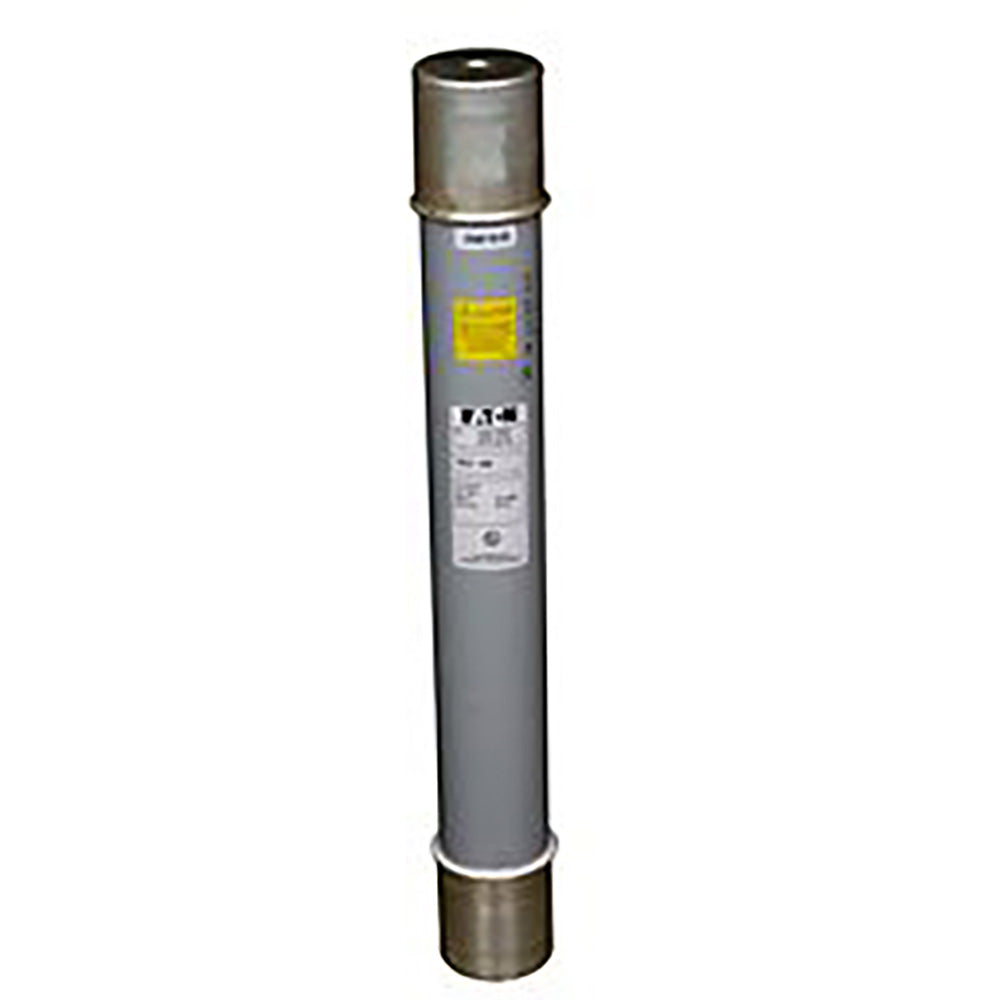

15CLE-30E
15CLE-30E is an Eaton Bussmann series CLE medium voltage fuse designed for feeder circuit, switchgear, and transformer protection in indoor and outdoor applications. This E-rated general purpose fuse delivers reliable performance for protecting electrical distribution systems at medium voltage levels. The single barrel cartridge design provides consistent interrupting capability across a wide range of fault conditions.Key Specifications
- Manufacturer: Eaton Bussmann
- Current Rating: 30 Amperes
- Voltage Rating: 15.5 kVAC
- Interrupting Rating: 63 kA RMS Symmetrical
- Fuse Type: Single Barrel Cartridge
- Physical Diameter: 3 inches
- Series: CLE (Long Construction)
- Rating: E-Rated per ANSI C37.46
- Certifications: UL Listed, Guide JEEG, File E240398
- Application: Feeder and component protection
- Mounting: Requires fuseclip holder
Specifications
- Part Number: 15CLE-30E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CLE
- Type : 15CLE
- Voltage : 15500
- Amperage : 30
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 21
Product Data
- UPC : 005171252630
- GTIN : 00051712526302
- Dimensions : 23.9 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 13
