Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

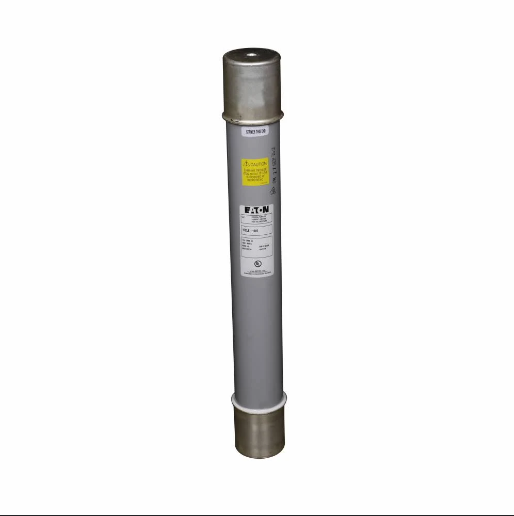

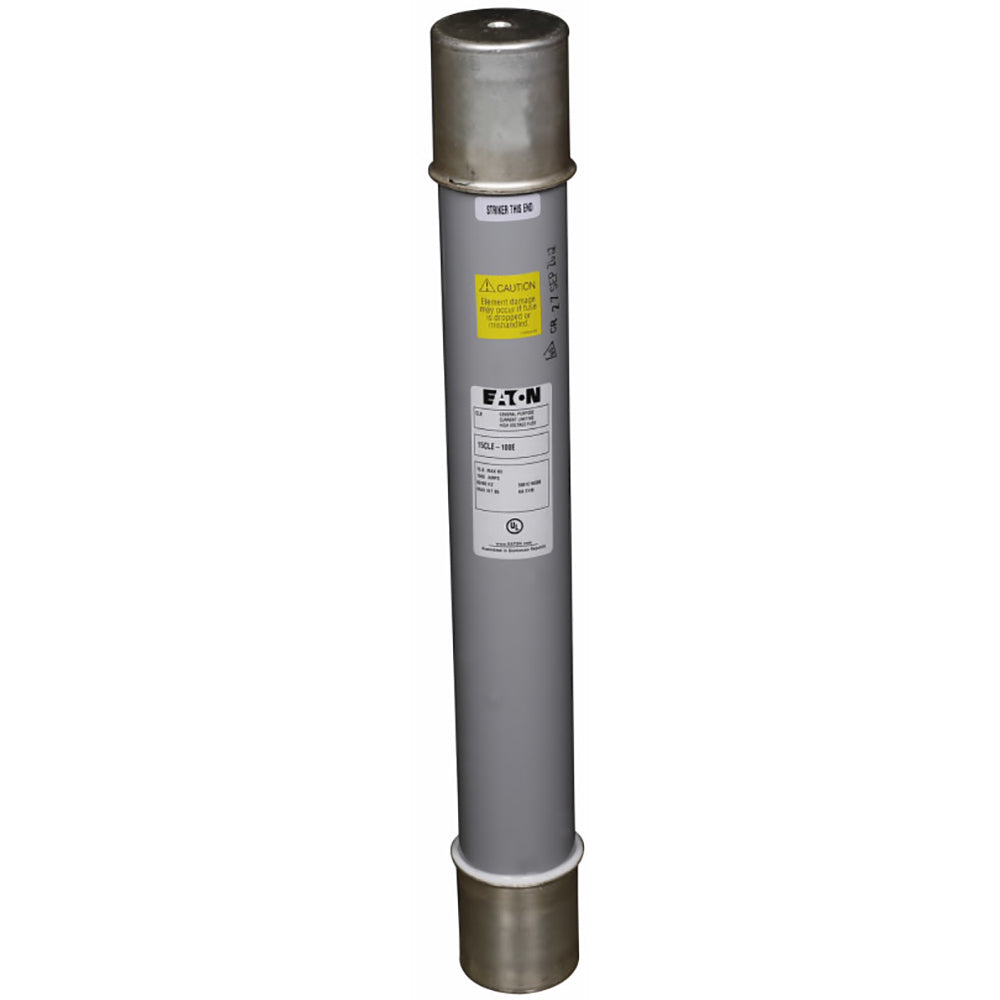

15CLE-300E
15CLE-300E is an Eaton Bussmann Series CLE medium voltage fuse designed for reliable circuit protection in indoor and outdoor applications.15CLE-300E features a double barrel design with a 300 ampere rating and 15 kV voltage rating. It is an E-rated fuse with a 63 kA interrupting rating, suitable for feeder circuit, switchgear, and transformer protection. This fuse meets ANSI C37.40 standards and is engineered to melt within 600 seconds at an RMS current between 220% and 264% of its rated current.
- Manufacturer: Eaton
- Series: Bussmann CLE
- Current Rating: 300 A
- Voltage Rating: 15 kV AC
- Fuse Type: Medium Voltage E-Rated
- Design: Double Barrel
- Interrupt Rating: 63 kAIC
- Mounting: Indoor/Outdoor
- Standards: ANSI C37.40
Specifications
- Part Number: 15CLE-300E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CLE
- Type : 15CLE
- Voltage : 15500
- Amperage : 300
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 20
Product Data
- UPC : 786670001881
- GTIN : 00786670001881
- Country of Origin : Dominican Republic
- Dimensions : 23.9 in x 6.3 in x 3 in (Length/Depth x Height x Width)
- Weight : 26
- Certification : IEEE Std. C37.41
