Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

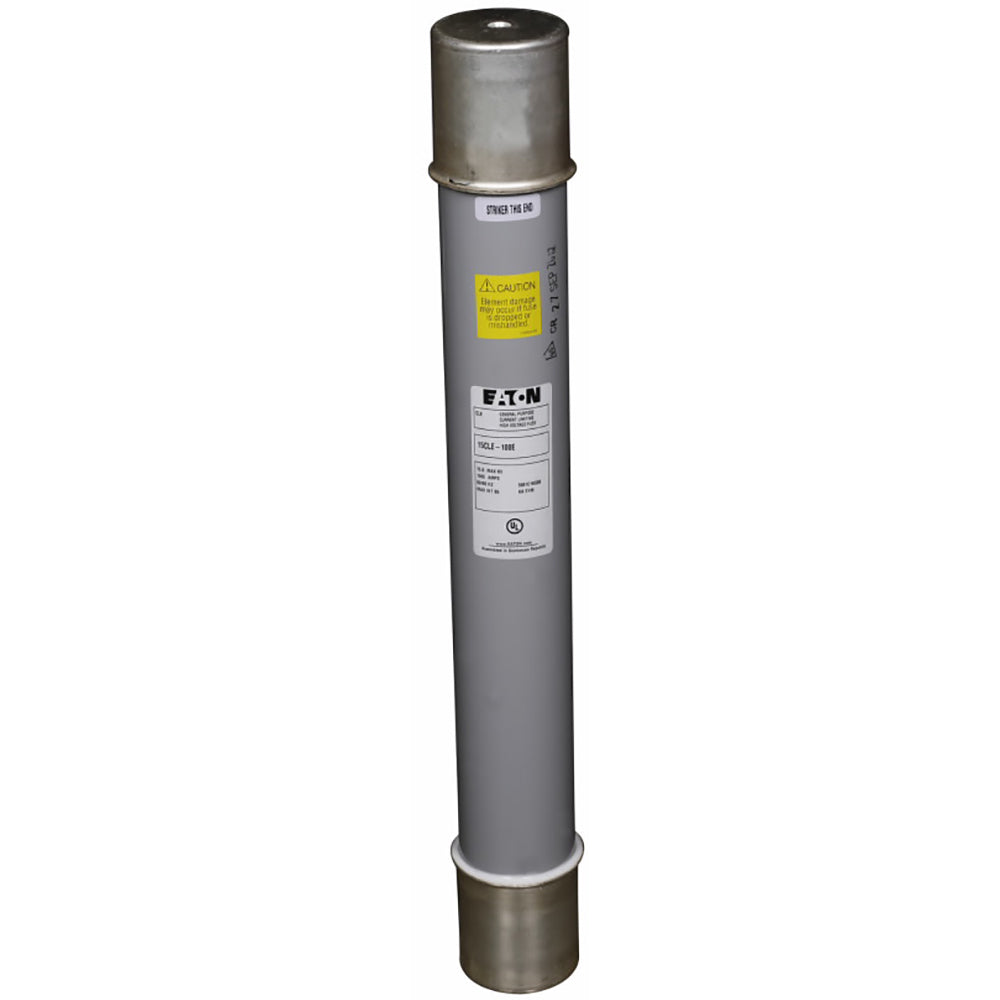

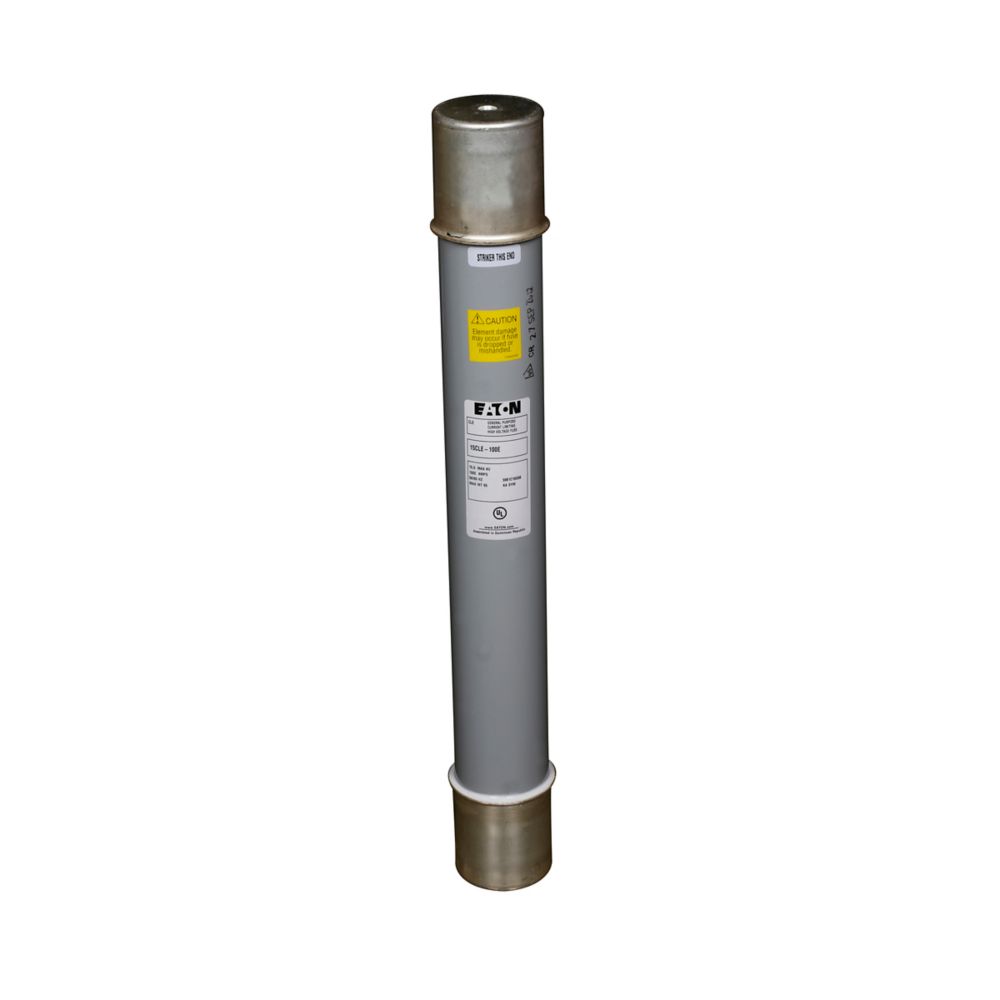

15CLE-100E
15CLE-100E is an Eaton Bussmann series medium voltage fuse designed for indoor and outdoor use with a single barrel construction.This 15CLE-100E fuse features a 100 ampere rating, 14.4 kV voltage rating, and a 63 kA interrupting rating. It is E-rated, CLE series, Class E, and suitable for feeder circuit, switchgear, and transformer protection. The fuse measures 28 inches in length, weighs 13.15 pounds, and complies with ANSI C37.46 and UL standards.
- Amperage: 100 A
- Voltage Rating: 14.4 kV
- Interrupt Rating: 63 kAIC
- Fuse Class: E-Rated, Class E
- Series/Frame: CLE
- Construction: Single barrel
- Mounting Type: Consult factory
- Indoor/Outdoor use
- Compliance: ANSI C37.46, UL Listed
- Length: 28 in
- Weight: 13.15 lb
Specifications
- Part Number: 15CLE-100E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CLE
- Type : 15CLE
- Voltage : 15500
- Amperage : 100
- AIC rating : [email protected]
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 21
Product Data
- UPC : 051712526265
- GTIN : 00786670001737
- Country of Origin : Dominican Republic
- Dimensions : 23.9 in x 3 in x 3 in (Length/Depth x Height x Width)
- Weight : 14
- Certification : IEEE Std. C37.41
