Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
155GXQSJ200ES

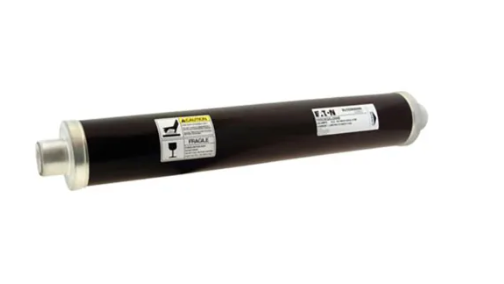

155GXQSJ200ES is an Eaton Bussmann series medium voltage DIN fuse designed for reliable circuit protection.155GXQSJ200ES features a 200 ampere rating and is rated for 15.5 kV AC voltage. It has a clip-in mounting method and includes a fuse indicator with striker for easy status identification. The fuse size measures 88 x 537 mm and it has a high interrupt rating of 65 kA, suitable for medium voltage applications. This fuse complies with DIN 43625, ANSI C37.46, and ANSI C37.40 standards.
- Amperage Rating: 200 A
- Voltage Rating: 15.5 kV AC
- Fuse Size: 88 x 537 mm
- Interrupt Rating: 65 kA
- Mounting Method: Clip-In
- Fuse Indicator: With Striker
- Series: Eaton Bussmann
- Compliance: DIN 43625, ANSI C37.46, ANSI C37.40
Specifications
- Part Number: 155GXQSJ200ES
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Type : 155
- Voltage : 15500
- Amperage : 200
- AIC rating : [email protected]
- Connection : DIN
- Diameter : 89
- Class Rating : E
- Barrels : 1
Product Data
- UPC : 051712540353
- Dimensions : 442 mm x 76 mm x 76 mm (Height x Length x Width)
- Weight : 11.49995931
