Description

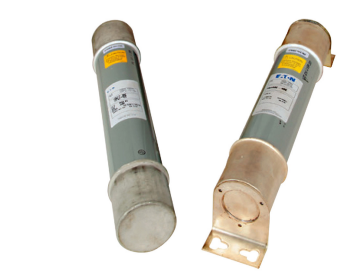

155F2DBX125ECPS
155F2DBX125ECPS is a medium voltage current-limiting fuse designed for reliable protection in power distribution systems. This Eaton Bussmann series fuse features an E-Rated design for enhanced performance and safety in demanding applications. The 155F2DBX125ECPS is engineered for use in feeder circuits, switchgear, and transformer protection. It utilizes a silver ribbon element and is built to meet ANSI C37.46 standards for medium voltage fuses. The fuse is current-limiting and features a ferrule connection for secure mounting.
- Part Number: 155F2DBX125ECPS
- Manufacturer: Eaton
- Series: Bussmann MV155F
- Voltage Rating: 15.5 kV
- Current Rating: 125A
- Interrupt Rating: 50 kAIC Symmetrical
- Mounting Type: Ferrule connection
- Class: E-Rated
- Type: Current-limiting
- Element: Silver ribbon
- Standards: ANSI C37.46
- UL Listed
Specifications
- Part Number: 155F2DBX125ECPS
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Type : 155
- Voltage : 15500
- Amperage : 125
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 2
- Clip Center : 15
Product Data
- Weight : 22
