Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
155F1DBX20ECPS

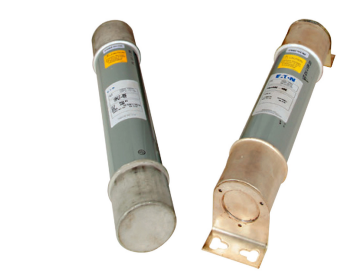

155F1DBX20ECPS is an Eaton Cooper Power series current limiting full range fuse designed for medium voltage power distribution and protection applications. This fuse delivers reliable circuit protection with a 15.5 kV voltage rating and 20 ampere current rating, featuring a 3 inch diameter ferrule mounted design with outdoor clip configuration. The fuse incorporates silver ribbon element technology and provides a 50 kA maximum interrupt current rating for enhanced system protection. It meets ANSI C37.46 E-Rated performance standards and is UL Listed under Guide JEEG.
- Voltage Rating: 15.5 kV
- Amperage Rating: 20 A
- Fuse Diameter: 3.0 inches
- Mounting Type: Ferrule Mounted with Outdoor Clip
- Maximum Interrupt Current: 50 kA Symmetrical
- Element Type: Silver Ribbon
- Series: Cooper Power E-Rated
- Certification: ANSI C37.46, UL Listed Guide JEEG
- Application: Feeder Circuit, Switchgear and Transformer Protection
Specifications
- Part Number: 155F1DBX20ECPS
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Type : 155
- Voltage : 15500
- Amperage : 20
- Connection : Ferrule
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 15
Product Data
- Weight : 22
