Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
155F080-IVBT

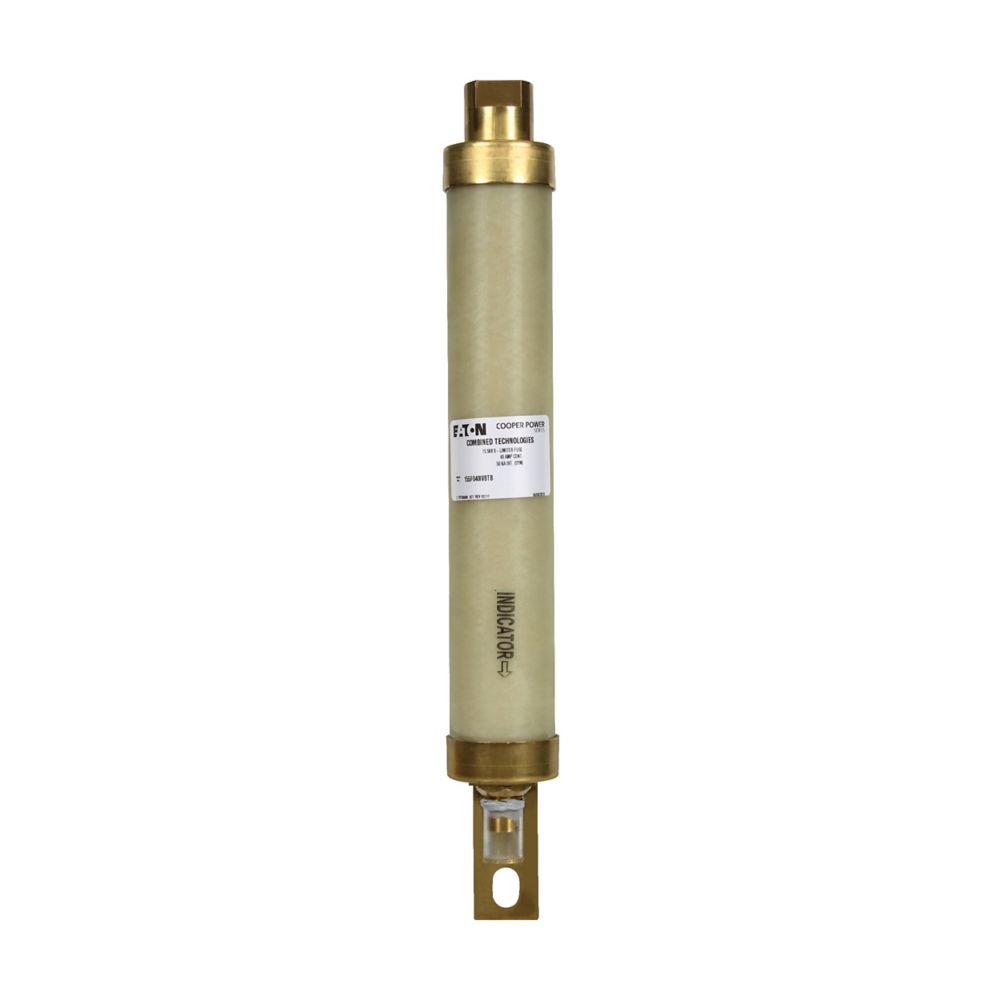

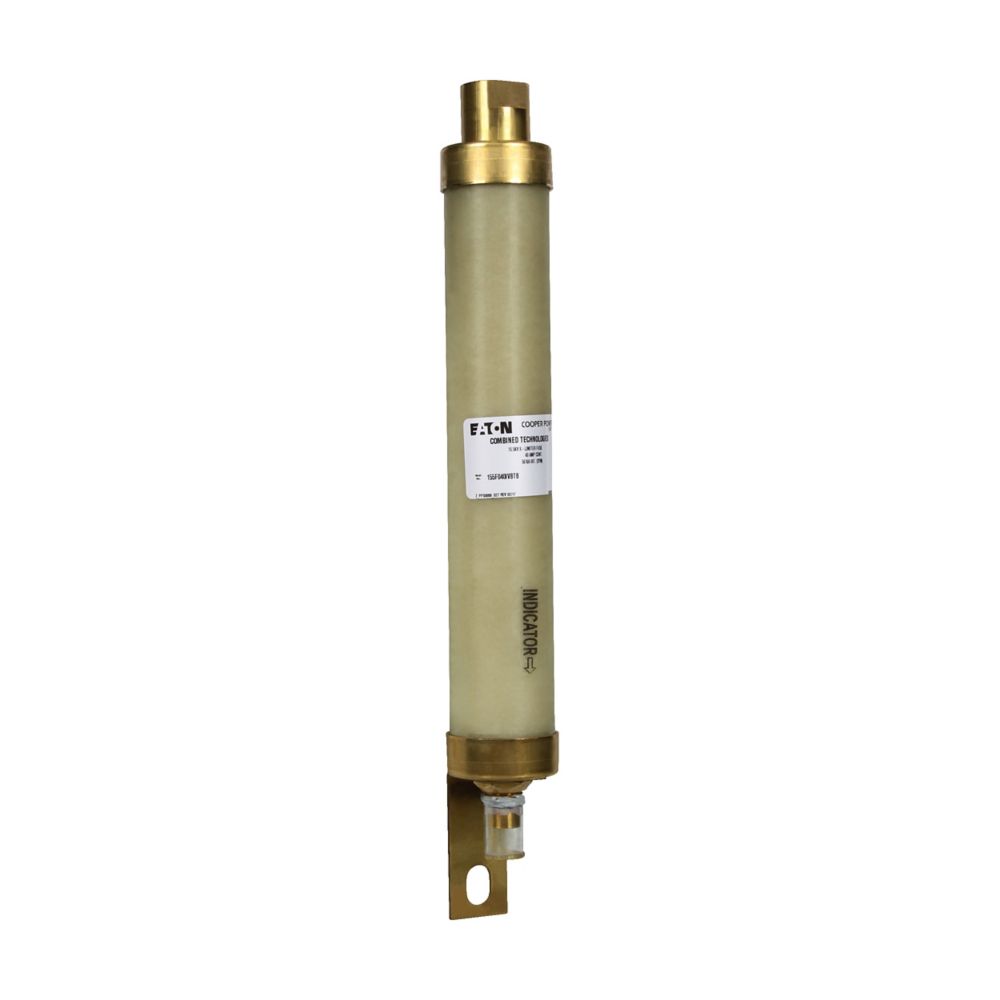

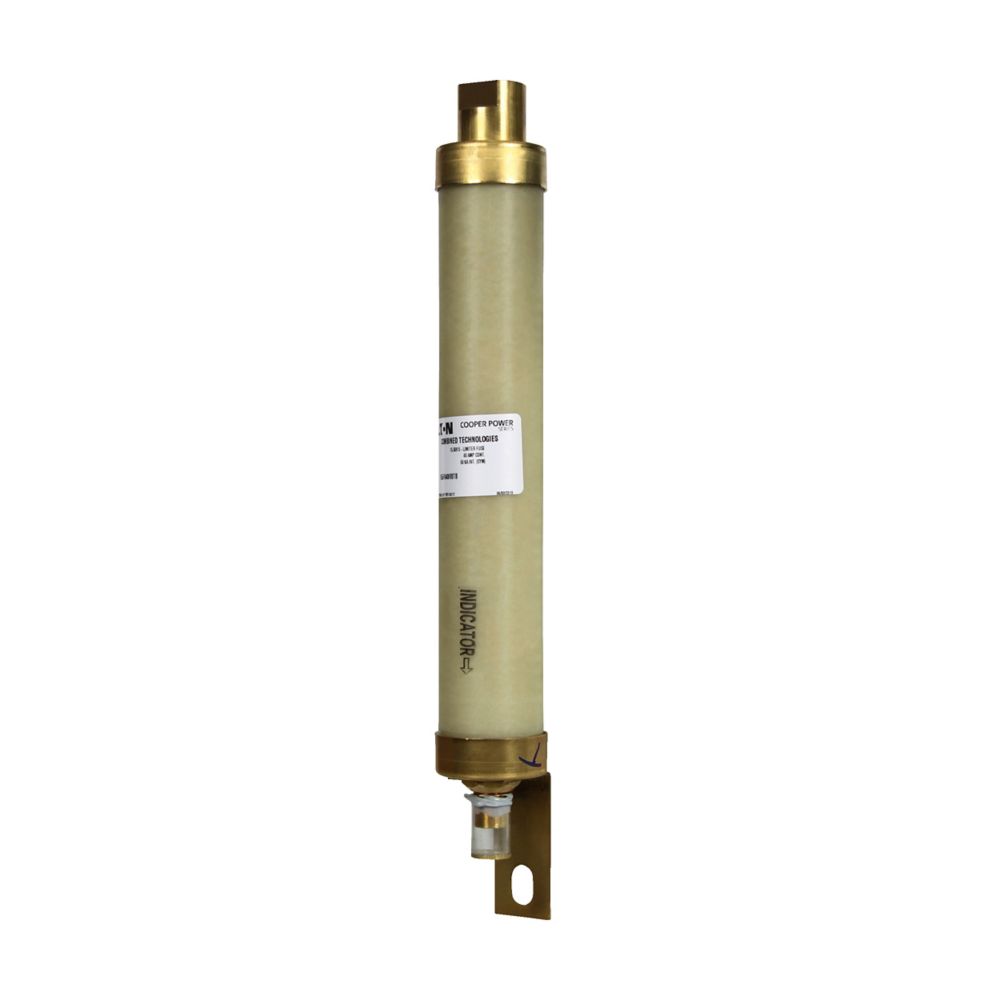

155F080-IVBT is a direct-connected capacitor fuse from Eaton's Cooper Power Series, designed for medium voltage capacitor bank protection. This fuse offers reliable performance in demanding electrical environments and is engineered for easy installation and long service life.Engineered for use in capacitor banks, the 155F080-IVBT fuse features a BT design for secure mounting and dependable operation. It is rated for 15.5 kV and 80 amperes, with a maximum interrupting rating of 50,000 A rms symmetrical. The fuse is suitable for applications requiring robust protection against overcurrent and short circuit events, and does not require derating for ambient temperatures below 100°C.
- Part Number: 155F080-IVBT
- Manufacturer: Eaton
- Series: Cooper Power Series
- Mounting Type: BT Design
- Voltage Rating: 15.5 kV
- Current Rating: 80 A
- Interrupting Rating: 50,000 A rms symmetrical
- Application: Direct-connected capacitor bank protection
- Temperature: No derating required below 100°C
- Design: Full-range, current-limiting
- Features: Red fuse indicator, bolt tab contact
- Compliance: Meets safe zone tank rupture curves for medium voltage capacitors
Specifications
- Part Number: 155F080-IVBT
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Voltage : 15500
- Amperage : 80
- Connection : Bolt-In
- Diameter : 3
- Class Rating : C
- Barrels : 1
Product Data
- UPC : 194006005760
- Dimensions : 18.3 in x x (Height x Length x Width)
- Weight : 7.5
- Certification : IEEE Std. C37.41
