Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description

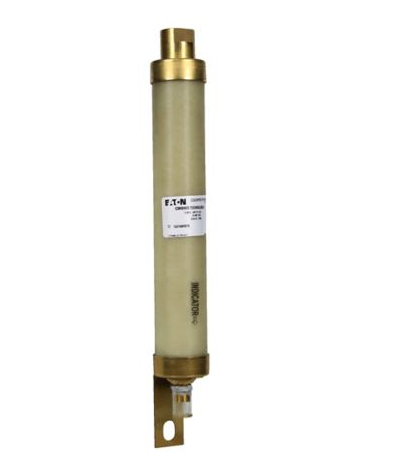

155F065-IVBTS
155F065-IVBTS is an Eaton Cooper Power series current limiting fuse designed for medium voltage applications with a 65 ampere rating and 15.5 kV voltage rating.155F065-IVBTS features a Class C distribution rating and X-Limiter fuse technology for reliable current limiting protection. It is intended for indoor mounting with bolt tab connections and has a maximum interrupting current of 50 kA. This fuse complies with IEEE Std. C37.41 certification standards.
- Amperage Rating: 65 A
- Voltage Rating: 15.5 kV
- Fuse Type: X-Limiter
- Fuse Rating: Distribution Class C
- Interrupting Current: 50 kA max
- Mounting Type: Indoor direct connect (bolt tab/bolt tab)
- Diameter: Approximately 3.16 inches
- Certification: IEEE Std. C37.41
Specifications
- Part Number: 155F065-IVBTS
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 15500
- Amperage : 65
- Connection : Special
- Diameter : 3
- Class Rating : C
- Barrels : 1
Product Data
- Weight : 9
