Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
155F065-I

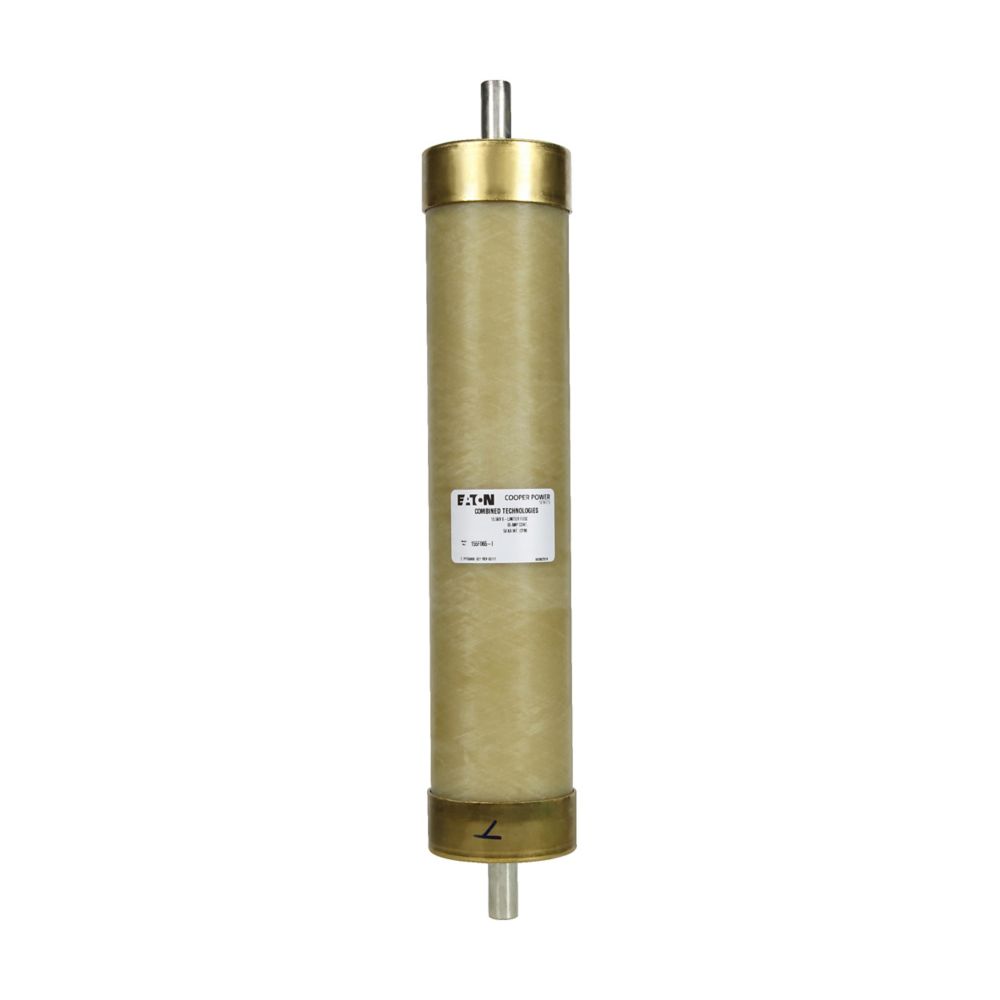

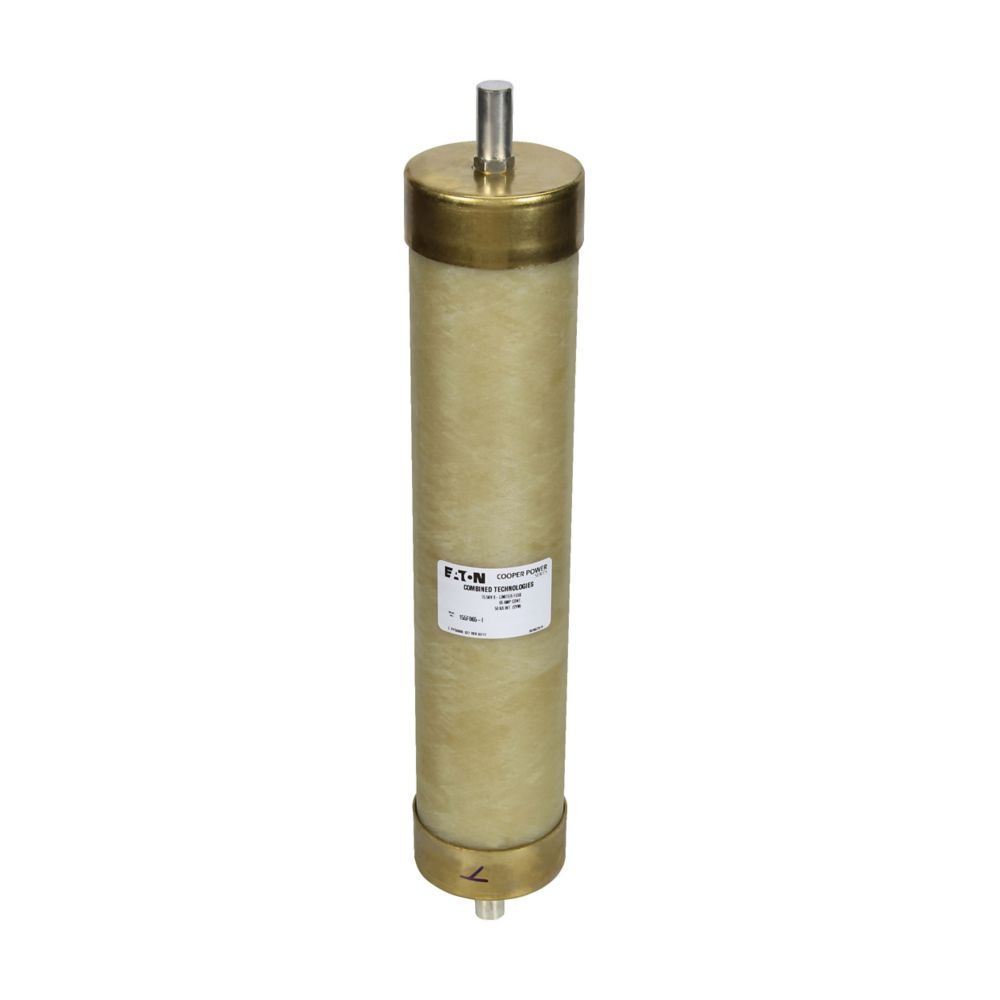

155F065-I is an Eaton Cooper Power series current limiting full range fuse designed for indoor clip mounting in pad-mounted transformers, switchgear, sectionalizing enclosures, industrial vaults, and metal clad switchgear. This X-Limiter fuse features a proprietary silicone sleeve that withstands extremely high arc temperatures while maintaining high bursting strength and arc withstand characteristics. The fuse is completely filled with sand and utilizes a threaded end cap assembly for reliable performance in distribution applications.
- Amperage Rating: 65 A
- Voltage Rating: 15.5 kV
- Maximum Interrupting Current: 50 kA
- Fuse Type: X-Limiter full range current limiting
- Fuse Rating: Distribution C
- Mounting Option: Indoor clip (5/8-inch standard clip-style)
- Product Diameter: 3.0 inches
- Product Height: 18.0 inches
- Product Weight: 7.56 lb
- Certification: IEEE Std. C37.41
- Optional blown-fuse indicator available
Specifications
- Part Number: 155F065-I
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Type : SX
- Voltage : 15500
- Amperage : 65
- Connection : NX
- Diameter : 3
- Class Rating : C
- Barrels : 1
Product Data
- UPC : 194006012652
- Dimensions : 17.5 in x x (Height x Length x Width)
- Weight : 23
- Certification : IEEE Std. C37.41
