Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
155F040-OVBTB

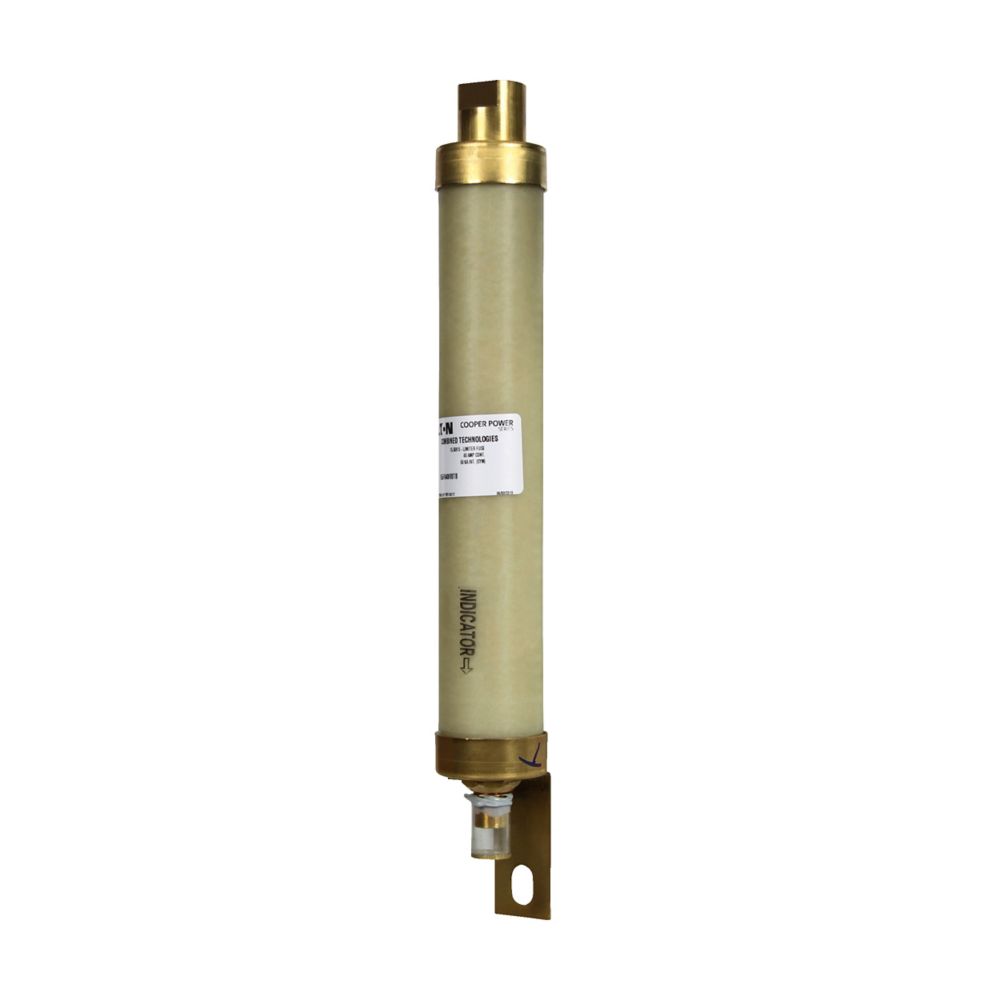

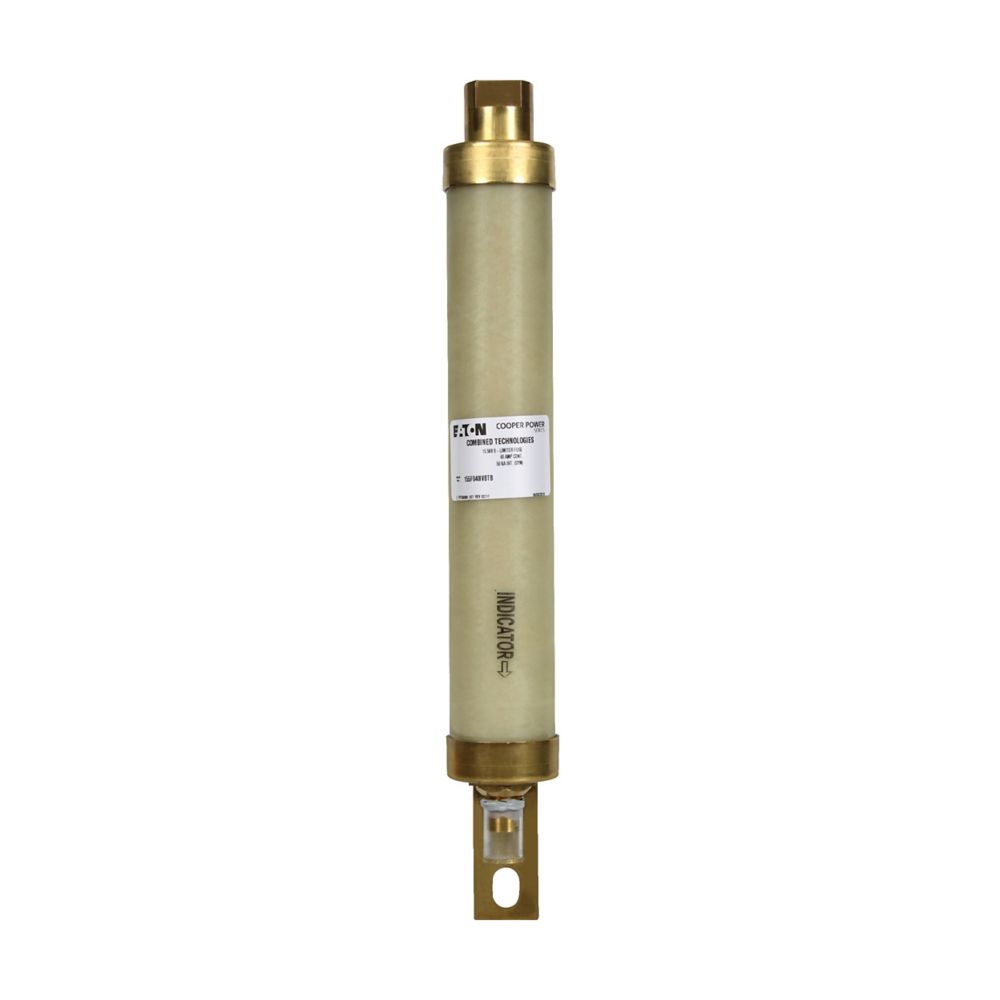

155F040-OVBTB is an Eaton Cooper Power series current-limiting capacitor fuse designed for outdoor direct connect applications in medium-voltage power distribution systems. This X-Limiter capacitor fuse provides reliable protection for capacitor banks and distribution circuits with a 40 ampere rating and 50 kA maximum interrupting current capacity. The fuse meets IEEE Std. C37.41 certification standards and is engineered to safely protect medium-voltage capacitors under standard-duty, heavy-duty, and extreme-duty operating conditions. Key Specifications
- Part Number: 155F040-OVBTB
- Manufacturer: Eaton
- Amperage Rating: 40 A
- Voltage Rating: 15.5 kV
- Fuse Type: X-Limiter capacitor fuse
- Mounting Option: Outdoor direct connect
- Maximum Interrupting Current: 50 kA
- Fuse Rating: Distribution C
- Connection Type: Cap bushing/bolt tab
- Product Diameter: 2.13 inch
- Certification: IEEE Std. C37.41
- Indicator: With Indicator
Specifications
- Part Number: 155F040-OVBTB
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 15500
- Amperage : 40
- Connection : Special
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- Weight : 4
