2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
155F040-IVBTB

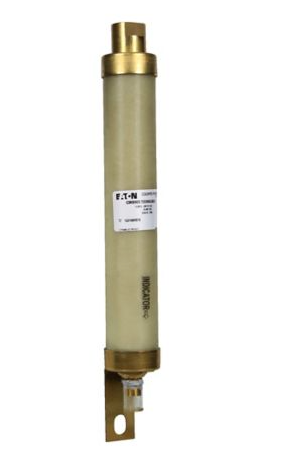

155F040-IVBTB is an Eaton Cooper Power series current-limiting capacitor fuse designed for indoor direct-connect applications in medium-voltage power distribution systems. This X-Limiter capacitor fuse provides reliable overcurrent protection with a maximum interrupting capacity of 50 kA, meeting IEEE Std. C37.41 certification standards. The fuse features a cap bushing and bolt tab connection design with an integral fuse indicator for blown fuse detection. Key Specifications
- Amperage Rating: 40 A
- Voltage Rating: 15.5 kV
- Fuse Type: X-Limiter capacitor fuse
- Fuse Rating: Distribution C
- Maximum Interrupting Current: 50 kA
- Connection Type: Cap bushing/bolt tab
- Mounting Option: Indoor direct connect
- Indicator: With indicator
- Certification: IEEE Std. C37.41
- Product Weight: 8.818 lb
- Product Dimensions: 15.75 in length, 2.2 in height, 2.1 in width
Specifications
- Part Number: 155F040-IVBTB
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 15500
- Amperage : 40
- Connection : Bolt-In
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- Weight : 4
