Description
155F025-IVBTB

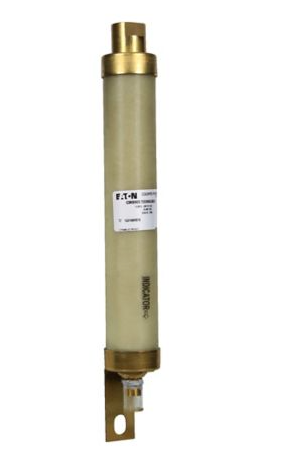

155F025-IVBTB is an Eaton Cooper Power series current-limiting capacitor fuse designed for indoor direct connect applications in medium-voltage power distribution systems. This X-Limiter capacitor fuse provides reliable protection for capacitor banks and distribution equipment with a compact, bolt tab connection design. The fuse features a visual indicator to signal blown status and meets IEEE Std. C37.41 certification standards for safe operation in standard-duty, heavy-duty, and extreme-duty capacitor applications. Key Specifications
- Part Number: 155F025-IVBTB
- Manufacturer: Eaton
- Amperage Rating: 25A
- Voltage Rating: 15.5 kV
- Maximum Interrupting Current: 50 kA
- Fuse Type: X-Limiter Capacitor Fuse
- Fuse Rating: Distribution C
- Mounting: Indoor Direct Connect
- Connection Type: Bolt Tab/Bolt Tab
- Indicator: With Indicator
- Product Dimensions: 2.13 inch diameter, 17.5 inch length, 2.2 inch height, 2.1 inch width
- Weight: 8.377 lb
- Certification: IEEE Std. C37.41
Specifications
- Part Number: 155F025-IVBTB
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 15500
- Amperage : 25
- Connection : Special
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- Weight : 4
