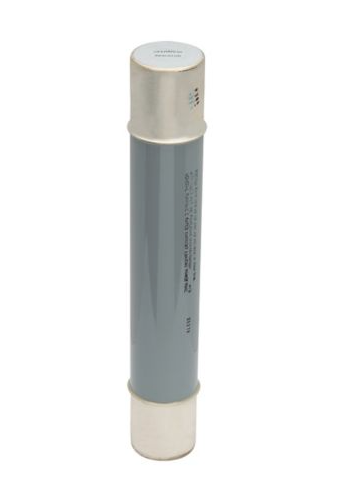

151D961G02 - Eaton 230A 4.8kV Class R Single Barrel Fuse 5CLS-12R 50kAIC

151D961G02

151D961G02 is an Eaton Bussmann series CLS fuse designed for medium voltage power distribution systems. This single barrel, Class R fuse provides reliable protection for motors and branch circuits with a 230A current rating and 4.8kV voltage rating. The 5CLS-12R designation indicates its compatibility with standard fuse holders and its suitability for motor start applications. The fuse features a current-limiting design for superior short-circuit protection and is built to meet demanding industrial requirements. This Eaton 5CLS-12R fuse is engineered for use in AC power distribution systems, offering robust overload and cycling capabilities. Its true dual-element spring-trigger construction allows for sizing at 125% FLA for motor backup protection. The fuse is designed for easy installation in standard fuse blocks and holders, and its open fuse indicator provides a positive visual indication of fuse operation for faster troubleshooting.

• Amperage Rating: 230 A
• Voltage Rating: 4.8 kV
• Interrupt Rating: 50 kAIC
• Class: Class R
• Barrels: Single barrel
• Series/Frame: 5CLS-12R
• Special Features: Motor start, current-limiting, open fuse indicator
• Mounting Type: Standard fuse block/holder
• Dimensions: 15.9 x 3 x 3 in
• Weight: 8 lb
• Compliances: IEEE Std. C37.41
• Applications: AC power distribution, motor protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 151D961G02
• Manufacturer : Eaton
• Brand : Eaton
• Category : Fuse
• Item Subcategory : Medium Voltage
• Voltage : 5080
• Amperage : 12
• Connection : Ferrule
• Diameter : 3
• Class Rating : R
• Barrels : 1
• Clip Center : 12

Product Data

• Weight : 9
