Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

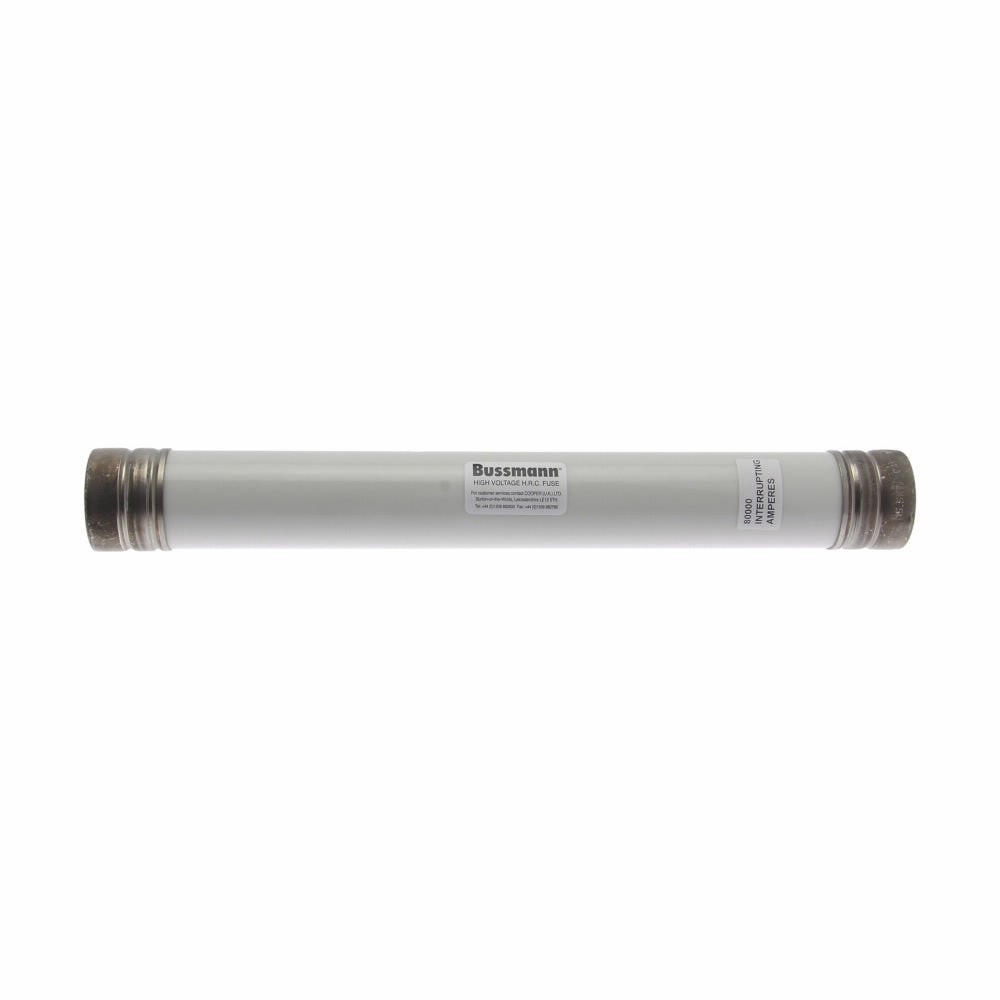

15.5CAV3E
15.5CAV3E is an Eaton Bussmann series VT fuse-link designed for medium voltage auxiliary backup protection in industrial and utility applications. This single barrel medium voltage fuse delivers reliable performance in AC circuits rated 15.5 kV with a 3 ampere rating and 80 kA interrupt capacity. Key Specifications
- Part Number: 15.5CAV3E
- Manufacturer: Eaton Bussmann
- Amperage Rating: 3 A
- Voltage Rating: 15.5 kV AC
- Interrupt Rating: 80 kA
- Fuse Class: E
- Fuse Type: VT Fuse-link
- Mounting Type: Bolted-On
- Terminal Type: Ferrule
- Dimensions: 327 x 41.3 mm
- Weight: 2.22 LB
- Standards: IEC, US
Specifications
- Part Number: 15.5CAV3E
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : CAV
- Type : CAV
- Voltage : 15500
- Amperage : 3
- AIC rating : [email protected]
- Diameter : 1.63
- Class Rating : E
- Barrels : 1
- Clip Center : 1.2
Product Data
- UPC : 05171283113
- GTIN : 00051712831130
- Country of Origin : United Kingdom
- Dimensions : 327 mm x 41.3 mm x 41.3 mm (Length/Depth x Height x Width)
- Weight : 2.369
