Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
14RBA2-GDM

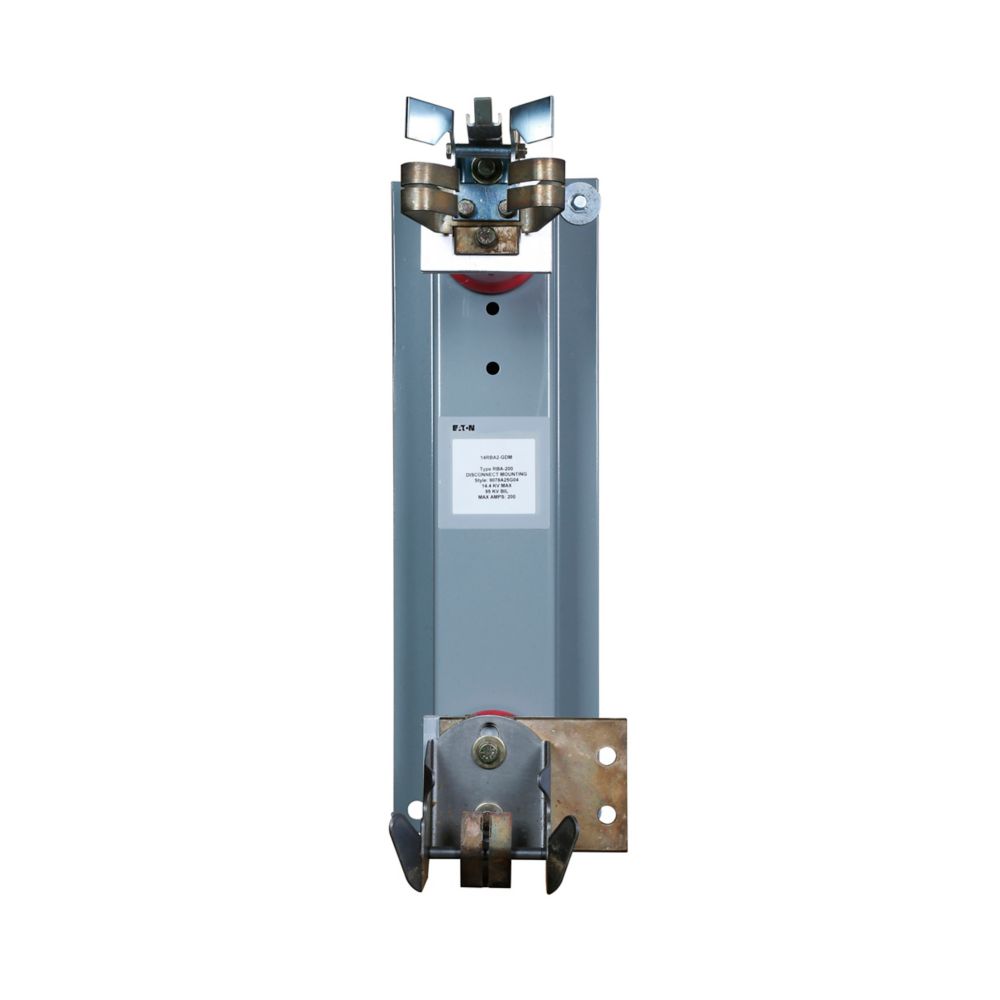

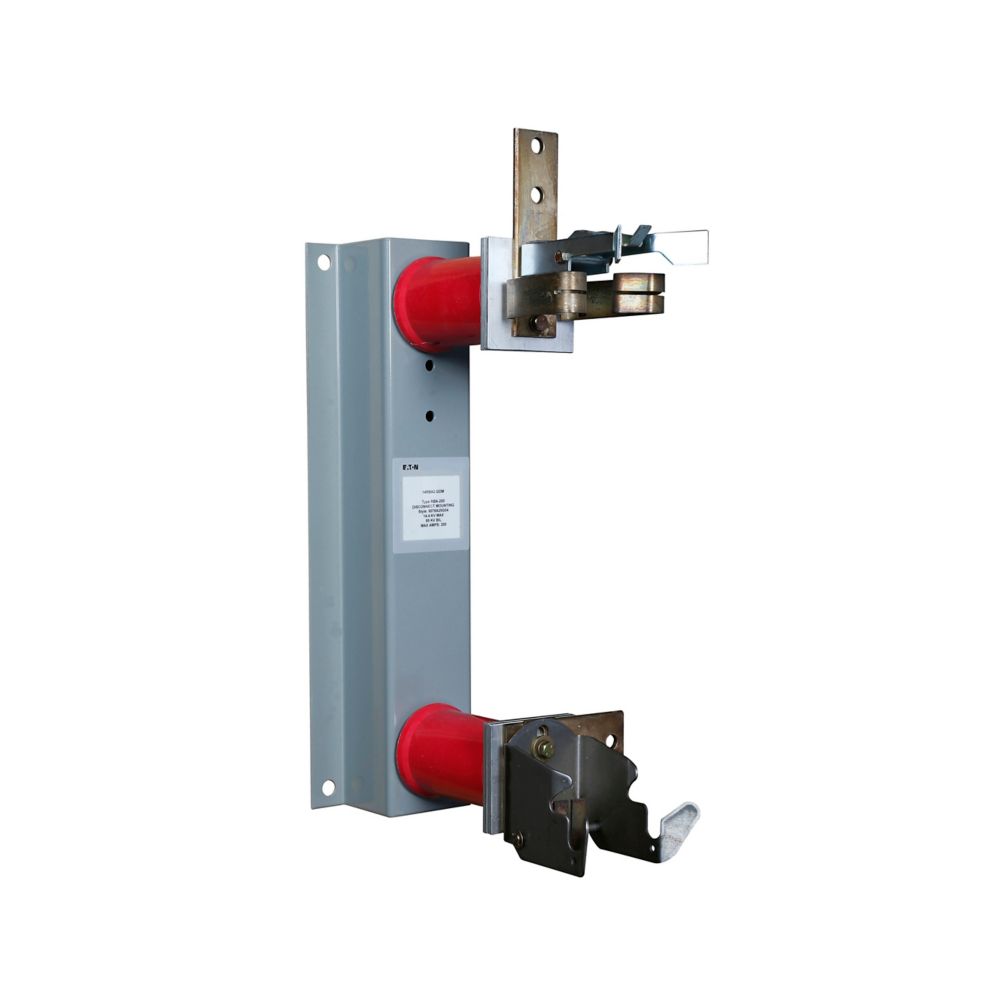

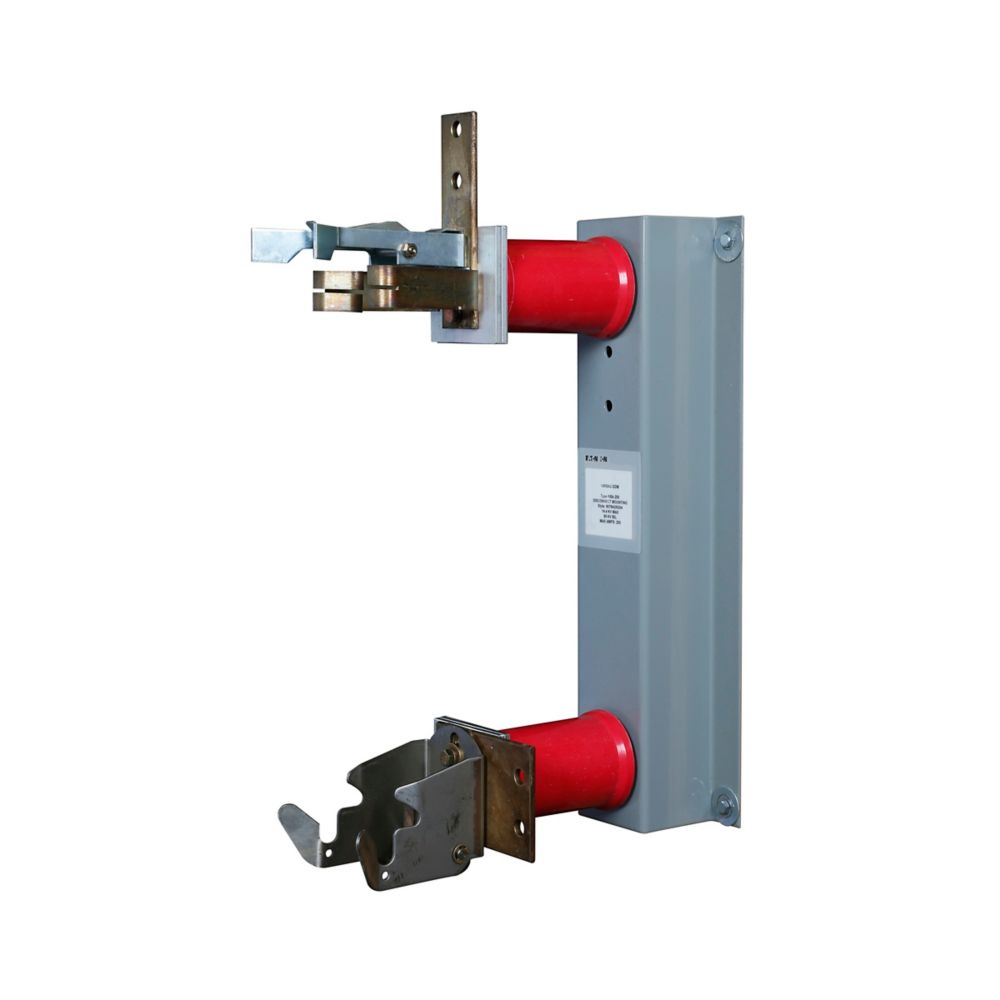

14RBA2-GDM is an Eaton expulsion fuse disconnect mounting designed for use with Type RBA expulsion fuses. This accessory provides secure mounting and reliable disconnect functionality for power distribution systems. The 14RBA2-GDM features a glass polyester insulator and is rated for 200A and up to 14 kV. It is engineered for use in both indoor and weatherproof enclosures, supporting safe and efficient fuse operation. The mounting includes upper and lower fuse clamps, a stainless steel latch, and spring fingers for positive electrical connection.
- Part Number: 14RBA2-GDM
- Manufacturer: Eaton
- Amperage: 200A
- Maximum Voltage: 14 kV
- Insulator Type: Glass Polyester
- Mounting Type: Disconnect
- Compatible Fuse Type: RBA
- Application: Indoor or Weatherproof Enclosure
- Electrical Connection: Spring Fingers and Clip Contacts
- Maximum Interrupting Current: 19,000 A
- Basic Insulation Level (BIL): 95 kV
- Operating Temperature: Standard Industrial
Specifications
- Part Number: 14RBA2-GDM
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Voltage : 14400
- Amperage : 200
Product Data
- UPC : 78667025004
- GTIN : 00786670250043
- Country of Origin : United States
- Dimensions : 25.49 in x 16.75 in x 7 in (Length/Depth x Height x Width)
- Weight : 20
