Product Info
- Manufacturer:Siemens
- Sub-Category:Motor Starter
Description
14FUF32AG

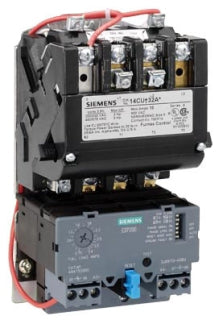

14FUF32AG is a Siemens NEMA Size 2 motor starter designed for industrial motor control applications.This motor starter features a 45 ampere current rating with a 240 VAC coil voltage and 3 poles. It includes a solid state overload relay for reliable motor protection and supports motor power ratings up to 15 hp at 240 VAC. The starter is non-reversing with box lug line and load side connections and is designed for open enclosure mounting. It operates with dual voltage and dual frequency coils and offers rugged industrial construction with large silver cadmium contacts and gravity dropout for durability.
- Manufacturer: Siemens
- Part Number: 14FUF32AG
- Current Rating: 45 Amps
- Coil Voltage: 240 VAC
- Number of Poles: 3
- NEMA Frame Size: 2
- Solid State Overload Relay
- Non-Reversing Starter
- Open Enclosure Mounting
- Auxiliary Contact Rating: 10 A at 600 VAC, 5 A at 600 VDC
- Motor Power: Up to 15 hp at 240 VAC
- Operating Temperature Range: -4 to 104 ¡F
Specifications
- Part Number: 14FUF32AG
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 14
- Type : 14FU
- Voltage : 600
- Amperage : 52
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
- Nema Rating : 2
- Nema Starter Size : 2
Product Data
- UPC : 783087947306
- GTIN : 00783087947306
- Country of Origin : Mexico
- Dimensions : 3.5 in x 8.13 in
- Weight : 3.999
- Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
