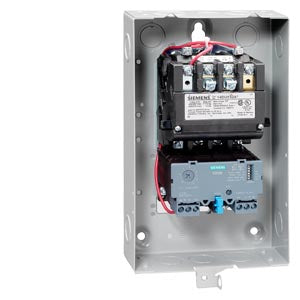

14DUE32BJ - Siemens Heavy Duty Full Voltage Non-Reversing Motor Starter 27A 600V 3 Pole NEMA 1

14DUE32BJ

14DUE32BJ is a Siemens heavy duty full voltage non-reversing motor starter designed for reliable motor control in industrial applications. This starter features a 24 VAC coil and is built for 3-phase motors with a 27A current rating and 600V load voltage. It is suitable for use in standard NEMA 1 enclosures and provides robust protection for motors up to 7.5 HP. This non-combination motor starter is ideal for applications requiring simple, dependable motor starting and stopping without reversing capability. The unit is constructed for durability and ease of installation, making it a preferred choice for a wide range of industrial environments.

• Part Number: 14DUE32BJ
• Manufacturer: Siemens
• Amperage: 27A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Motor Power: 7.5 HP
• Control Voltage: 24 VAC
• Mounting Type: NEMA 1 Enclosure
• Reversing Capability: Non-Reversing
• Frequency: 60 Hz
• Wattage: 8.6 W
• Auxiliary Contact Form: 1NO

At Essential Parts, we offer fast shipping

Specifications

• Part Number: 14DUE32BJ
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14DU
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
• Configuration : Non-Reversing
• Aux Contacts : 1NO
• Coil Voltage Maximum : 24
• Nema Rating : 1
• Amperage Maximum : 40
• Amperage Minimum : 10
• Enclosure : 1

Product Data

• UPC : 783087945937
• GTIN : 00783087945937
• Country of Origin : Mexico
• Dimensions : 7 in x 11 in
• Weight : 8.025
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
