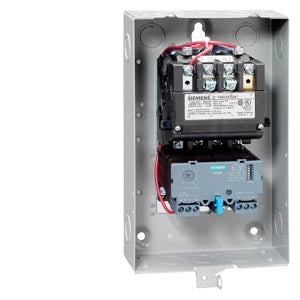

14DUE32BD - Siemens 27A 600V 3-Pole 3-Phase NEMA Size 1 Non-Reversing Motor Starter

14DUE32BD

14DUE32BD is a Siemens Class 14 NEMA Size 1 non-reversing motor starter designed for reliable 3-phase motor control applications. This starter provides robust protection and control for motors up to 27A at 600V, making it suitable for a wide range of industrial environments. The 14DUE32BD features a 3-pole configuration and is rated for 3-phase operation with a maximum load voltage of 600V. It is a non-reversing starter, ideal for applications where motor direction does not need to be changed. The unit is built to NEMA standards and is designed for easy integration into standard control panels.

• Part Number: 14DUE32BD
• Manufacturer: Siemens
• Series: Class 14
• Frame: NEMA Size 1
• Amperage: 27A
• Voltage: 600V
• Poles: 3
• Phase: 3-Phase
• Mounting Type: Standard Width
• Control Type: Non-Reversing
• Motor Power: 7.5 HP @ 208V 3-Phase
• Wattage: 5590 W

At Essential Parts, we offer fast shipping, lowest price, and expert support to help (more...)

Specifications

• Part Number: 14DUE32BD
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14DU
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
• Configuration : Non-Reversing
• Aux Contacts : 1NO
• Coil Voltage Maximum : 208
• Coil Voltage Minimum : 200
• Nema Rating : 1
• Amperage Maximum : 40
• Amperage Minimum : 10
• Enclosure : 1

Product Data

• UPC : 783087945883
• GTIN : 00783087945883
• Country of Origin : Mexico
• Dimensions : 6.41 in x 10.97 in
• Weight : 8.148
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
