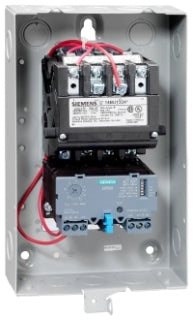

14DUD32BL - Siemens 22A 600V 3 Pole Motor Starter NEMA 1 Non-Reversing Full Voltage

14DUD32BL

14DUD32BL is a Siemens motor starter designed for full voltage, non-reversing motor control applications.This motor starter features a 22 amp continuous current rating and supports up to 600 volts load voltage. It is a 3-pole device housed in a NEMA 1 enclosure, suitable for three-phase motors. The control coil voltage is rated for 240 VAC at 50 Hz and 277 VAC at 60 Hz. It is a heavy-duty, full-voltage, non-combination starter ideal for industrial motor control with reliable overload protection.

Key Specifications
• Amperage: 22 A continuous current rating
• Voltage: 600 VAC load voltage rating
• Control Voltage: 240 VAC (50 Hz), 277 VAC (60 Hz)
• Poles: 3
• Phase: 3-phase
• Mounting Type: NEMA 1 enclosure
• Type: Full voltage, non-reversing motor starter
• Interrupt Rating: Not explicitly specified
• Series/Frame: Size 1 (Class 14)
• Trip Unit: Solid-state overload relay (typical for this class)
• Certifications: UL Listed, CSA Certified (typical for Siemens starters)
At Essential Parts, we offer fast shipping(more...)


Specifications

• Part Number: 14DUD32BL
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14DU
• Voltage : 600
• Amperage : 22
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LIT - Long-Time, Instantaneous and Targets
• Configuration : Non-Reversing
• Coil Voltage Maximum : 277
• Nema Rating : 1
• Amperage Maximum : 22
• Amperage Minimum : 5.5
• Protection : Solid State



Product Data

• UPC : 783087945258
• GTIN : 00783088000000
• Country of Origin : Mexico
• Weight : 8.025
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
