Product Info
- Manufacturer:Siemens
- Sub-Category:Motor Starter
Description

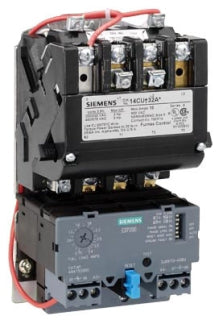

14DUD32AD
14DUD32AD is a Siemens 3 pole, non-reversing motor starter designed for three-phase applications with a 22 amp rating and 600V load voltage.This motor starter features a 208V AC coil, NEMA Size 1 frame, and solid-state overload relay with an amp range of 5.5-22A. It supports full voltage starting and is suitable for industrial motor control applications requiring reliable overload protection and control.
- Amperage: 22A
- Voltage - Load: 600V AC
- Control Voltage: 208V AC coil
- Poles: 3
- Type: Non-Reversing Motor Starter
- Frame/Size: NEMA Size 1
- Overload Relay: Solid-state, 5.5-22A range
- Phase: Three-phase
- Interrupt Rating: Not specified
- Frequency: 60 Hz
- Certifications: Not specified
Specifications
- Part Number: 14DUD32AD
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 14
- Type : 14DU
- Voltage : 600
- Amperage : 22
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LIT - Long-Time, Instantaneous and Targets
- Configuration : Non-Reversing
- Coil Voltage Maximum : 208
- Coil Voltage Minimum : 200
- Nema Rating : 1
- Amperage Maximum : 22
- Amperage Minimum : 5.5
- Protection : Solid State
Product Data
- UPC : 783087945098
- GTIN : 00783088000000
- Country of Origin : Mexico
- Dimensions : 3.5 in x 7.44 in
- Weight : 4.054
- Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
