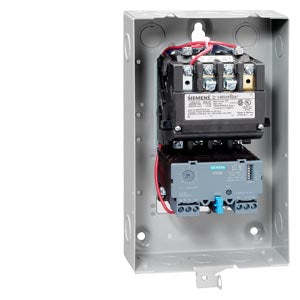

14DUC32BA - Siemens 3-Pole Full Voltage Motor Starter 3-12A 120/240VAC NEMA 1 Non-Reversing

14DUC32BA

14DUC32BA is a Siemens full voltage motor starter designed for reliable motor control applications. It features a 3-pole configuration with a control voltage range of 120 to 240 VAC and supports motor loads up to 5 horsepower.This non-reversing motor starter is built with a NEMA 1 enclosure and is suitable for use with motors requiring 3 to 12 amps of current. It supports voltages up to 600 VAC and is ideal for industrial motor control with screw-type connections.

• Amperage: 3 to 12 Amps
• Voltage: 120/240 VAC control voltage, up to 600 VAC load voltage
• Poles: 3
• Mounting Type: NEMA 1 enclosure
• Motor Power: Up to 5 HP
• Non-Reversing starter
• Connection Type: Screw
• Interrupt Rating: Standard for Class 14 starters
• Series/Frame: Class 14
• Certifications: UL Listed, CSA Certified (typical for Siemens motor starters)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 14DUC32BA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14DU
• Voltage : 600
• Amperage : 12
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 2 hp HP @ 3 Phase - 240V 2 hp HP @ 3 Phase - 480V 5 hp
• Configuration : Non-Reversing
• Aux Contacts : 1NO
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220
• Nema Rating : 1
• Amperage Maximum : 12
• Amperage Minimum : 3
• Enclosure : 1

Product Data

• UPC : 783087944275
• GTIN : 00783087944275
• Country of Origin : Mexico
• Dimensions : 6.41 in x 10.97 in
• Weight : 7.998
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
