Product Info
- Manufacturer:Siemens
- Sub-Category:Motor Starter
Description
14CUC32BJ

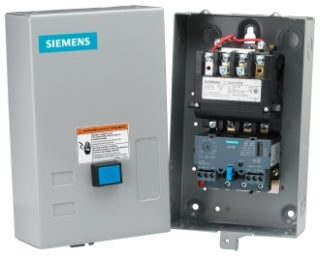

14CUC32BJ is a Siemens motor starter designed for 3-phase motor control applications with a 12 ampere rating and 600 volts voltage capacity.14CUC32BJ features a 3-pole configuration, Size 0 frame, and NEMA 1 fiberglass enclosure, making it suitable for HVAC and industrial motor starting needs. It operates on 24 VAC coil voltage and provides reliable full voltage starting for single motor loads.
- Key Specifications
- Amperage: 12 Amps
- Voltage: 600 Volts
- Poles: 3
- Phase: 3
- Mounting Type: Size 0 frame
- Enclosure Type: NEMA 1 Fiberglass
- Control Type: Non-reversing motor starter
- Coil Voltage: 24 VAC
- Interrupt Rating: Standard industrial rating
- Application: HVAC and general motor control
Specifications
- Part Number: 14CUC32BJ
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 14
- Type : 14CU
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Configuration : Non-Reversing
- Coil Voltage Maximum : 24
- Amperage Maximum : 12
- Amperage Minimum : 3
- Protection : Solid State
Product Data
- UPC : 783087941212
- GTIN : 00783088000000
- Country of Origin : Mexico
- Dimensions : 7 in x 11 in
- Weight : 7.998
- Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
