Product Info
- Manufacturer:Siemens
- Sub-Category:Motor Starter
Description

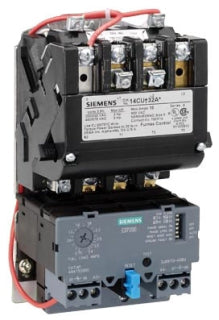

14CUB32AH
14CUB32AH is a Siemens heavy duty full voltage non-reversing motor starter designed for reliable motor control applications.This motor starter features a 3-pole configuration with an 18 ampere current rating and supports motor voltages up to 600 VAC. It is a NEMA Size 0 starter suitable for controlling 0.5 HP AC motors with 3-phase power. The starter includes a 480V AC coil voltage and screw-type terminal connections. It is designed for open mounting and provides manual on/off control with overload protection.
- Manufacturer: Siemens
- Part Number: 14CUB32AH
- Current Rating: 18 Amps
- Voltage Rating: 600 VAC Load Voltage
- Coil Voltage: 480V AC
- Number of Poles: 3
- Motor Type: AC Motor
- Motor Power: 0.5 HP
- Phase: 3 Phase
- Mounting Type: Open
- Reversing Capability: Non-Reversing
- NEMA Size: 0
Specifications
- Part Number: 14CUB32AH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 14
- Type : 14CU
- Voltage : 600
- Amperage : 4
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 1/2 hp HP @ 3 Phase - 240V 3/4 hp HP @ 3 Phase - 480V 1 1/2 hp
- Configuration : Non-Reversing
- Aux Contacts : 1NO
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 440
- Amperage Maximum : 3.4
- Amperage Minimum : 0.75
Product Data
- UPC : 783087940222
- GTIN : 00783087940222
- Country of Origin : Mexico
- Dimensions : 3.5 in x 7.44 in
- Weight : 3
- Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
