14CUB32AF - Siemens 3-Pole Non-Reversing Full Voltage Motor Starter 0.75-3.4A 600V NEMA 0

14CUB32AF

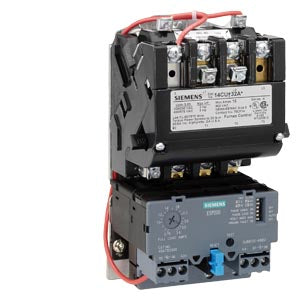

14CUB32AF is a Siemens 3-pole non-reversing full voltage motor starter designed for three-phase motors with a NEMA size 0 frame.This motor starter supports a load current range of 0.75 to 3.4 amps and operates at a maximum voltage of 600 VAC. It features a solid-state overload relay with an amp range of 0.75-3.4A and is suitable for motors up to 0.5 hp. The starter is designed for reliable operation with a control voltage of 110-120 VAC and supports up to 10 million operating cycles.

Key Specifications
• Amperage Rating: 0.75 - 3.4 Amps
• Voltage Rating: 600 VAC Maximum
• Poles: 3 Pole
• Mounting Type: NEMA Size 0
• Motor Power: 0.5 HP
• Phase: 3 Phase
• Interrupt Rating: Not specified
• Trip Unit: Solid-state overload relay
• Operating Cycles: 10,000,000
• Control Voltage: 110-120 VAC
• Certifications: Not specified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 14CUB32AF
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 14
• Type : 14CU
• Voltage : 600
• Amperage : 4
• Phase : 3
• Poles : 3
• Configuration : Non-Reversing
• Coil Voltage Maximum : 120
• Amperage Maximum : 3.4
• Amperage Minimum : 0.75



Product Data

• UPC : 783087817692
• GTIN : 00783087817692
• Country of Origin : Mexico
• Dimensions : 1.61 x 1.087 x 0.807 inch
• Weight : 3
• Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
