Product Info
- Manufacturer:Siemens
- Sub-Category:Motor Starter
Description
14CUB32AC

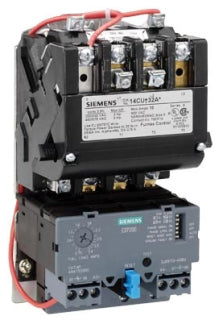

14CUB32AC is a Siemens NEMA 0 non-reversing motor starter designed for reliable three-phase motor control applications. This starter features a solid-state overload relay and is suitable for use with motors up to 18A at 600V AC. The 14CUB32AC motor starter is built for industrial environments and provides full-voltage starting for three-phase AC motors. It is rated for 220-240/440-480V AC control voltage and is compatible with a wide range of motor loads. The unit is designed for panel mounting and does not include an enclosure.
- Part Number: 14CUB32AC
- Manufacturer: Siemens
- Motor Type: AC Motor
- Control Type: Motor Starter
- Number of Motors: 1
- Load Voltage: 600V AC
- Control Voltage: 220-240/440-480V AC
- Output Current: 18A
- Poles: 3
- Phase: 3
- NEMA Size: 0
- Mounting Type: Panel Mount
- Overload Type: Solid-State
- Frequency Rating: 50/60 Hz
Specifications
- Part Number: 14CUB32AC
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Class 14
- Type : 14CU
- Voltage : 600
- Amperage : 4
- Phase : 3
- Poles : 3
- Configuration : Non-Reversing
- Coil Voltage Maximum : 480
- Coil Voltage Minimum : 440
- Amperage Maximum : 3.4
- Amperage Minimum : 0.75
Product Data
- UPC : 783087940185
- GTIN : 00783087940185
- Country of Origin : Mexico
- Weight : 3
- Certification : CSA 22.2 No.14, NEMA ICS 2, UL 508
