Product Info
- Manufacturer:Siemens
- Sub-Category:Motor Starter
Description
14BUC32AJ

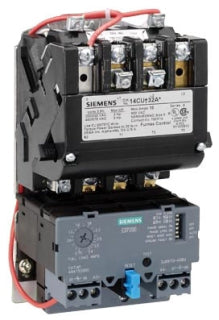

14BUC32AJ is a Siemens NEMA 00 size 3 pole 3 phase motor starter with a 24VAC coil and solid state overload relay adjustable from 3 to 12 amps. Designed for reliable motor control in industrial applications, this starter features a non-reversing configuration and includes a normally open auxiliary contact for low voltage protection. This Siemens 14BUC32AJ motor starter is rated for up to 600V and provides solid-state overload protection with manual or automatic reset options. The rugged industrial design ensures durability and easy maintenance, with straight thru wiring and large silver cadmium contacts for reliable operation. Heater packs must be purchased separately.
- NEMA Size: 00
- Number of Poles: 3
- Rated Voltage: 600V
- Rated Current: 3-12A adjustable
- Coil Voltage: 24VAC
- Motor Type: 3 Phase AC
- Overload Type: Solid State
- Mounting Type: DIN Rail or Panel Mount
- Interrupt Rating: 100kA
- Frame/series: 14BUC
- Reset Type: Manual or Automatic
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: 14BUC32AJ
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Motor Starter
- Voltage : 600
- Amperage : 12
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LIT - Long-Time, Instantaneous and Targets
- Coil Voltage Maximum : 24
- Nema Rating : 00
- Protection : Solid State
Product Data
- UPC : 783087939127
- GTIN : 00783088000000
- Country of Origin : Mexico
- Weight : 3
