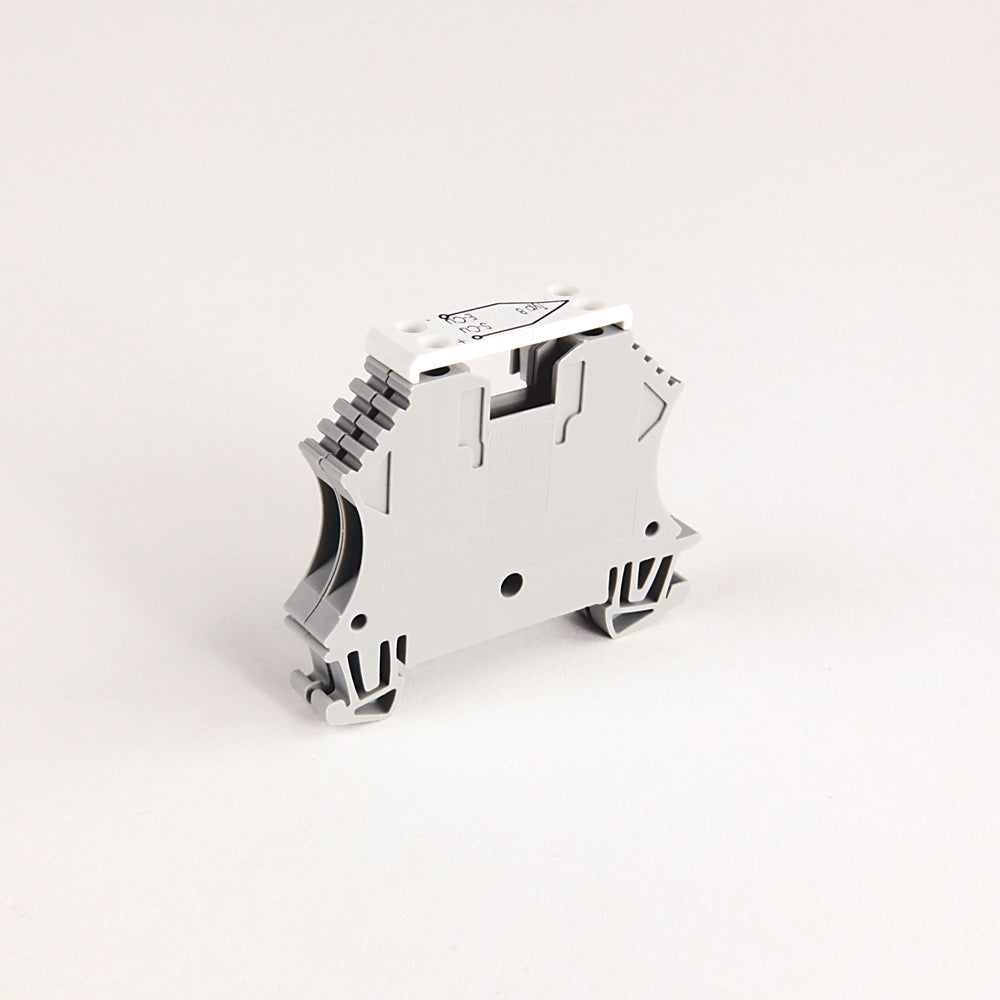

1492JT3M - Allen-Bradley 2.5mm Triple Level Terminal Block, 10A, 300V, Multi-Circuit Feed-Through

1492JT3M

1492JT3M is a 2.5 mm triple level terminal block designed for multi-circuit feed-through applications in motor control systems.This Allen-Bradley terminal block supports up to 10 amps and 300 volts, accommodating wire sizes from #22 to #12 AWG (UR) and #26 to #10 AWG (CSA). It features a compact design with dimensions of 6.1 x 88 x 56.5 mm (0.24 x 3.47 x 2.22 in) and is rated for operation in temperatures ranging from -50 to 120 degrees Celsius. The product is certified to CSA, IEC, and ATEX standards, ensuring reliable and safe use in industrial environments.

Key Specifications
• Part Number: 1492JT3M
• Manufacturer: Allen-Bradley
• Terminal Size: 2.5 mm
• Current Rating: 10 Amps
• Voltage Rating: 300 Volts AC/DC
• Wire Size: UR #22-12 AWG, CSA #26-10 AWG, IEC 0.5-2.5 mm²
• Mounting Type: Multi-circuit feed-through terminal block
• Dimensions: 6.1 x 88 x 56.5 mm (0.24 x 3.47 x 2.22 in)
• Temperature Range: -50 to 120 °C
• Certifications: CSA, IEC, ATEX

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 1492JT3M
• Manufacturer : Allen-Bradley
• Brand : Allen-Bradley
• Category : Motor Control
• Item Subcategory : Part And Accessory

Product Data

• UPC : 662074734795
• GTIN : 00662074734795
• Weight : 2
