Product Info
- Manufacturer:Allen-Bradley
- Sub-Category:Motor Control Part And Accessory
Description
1492-J6

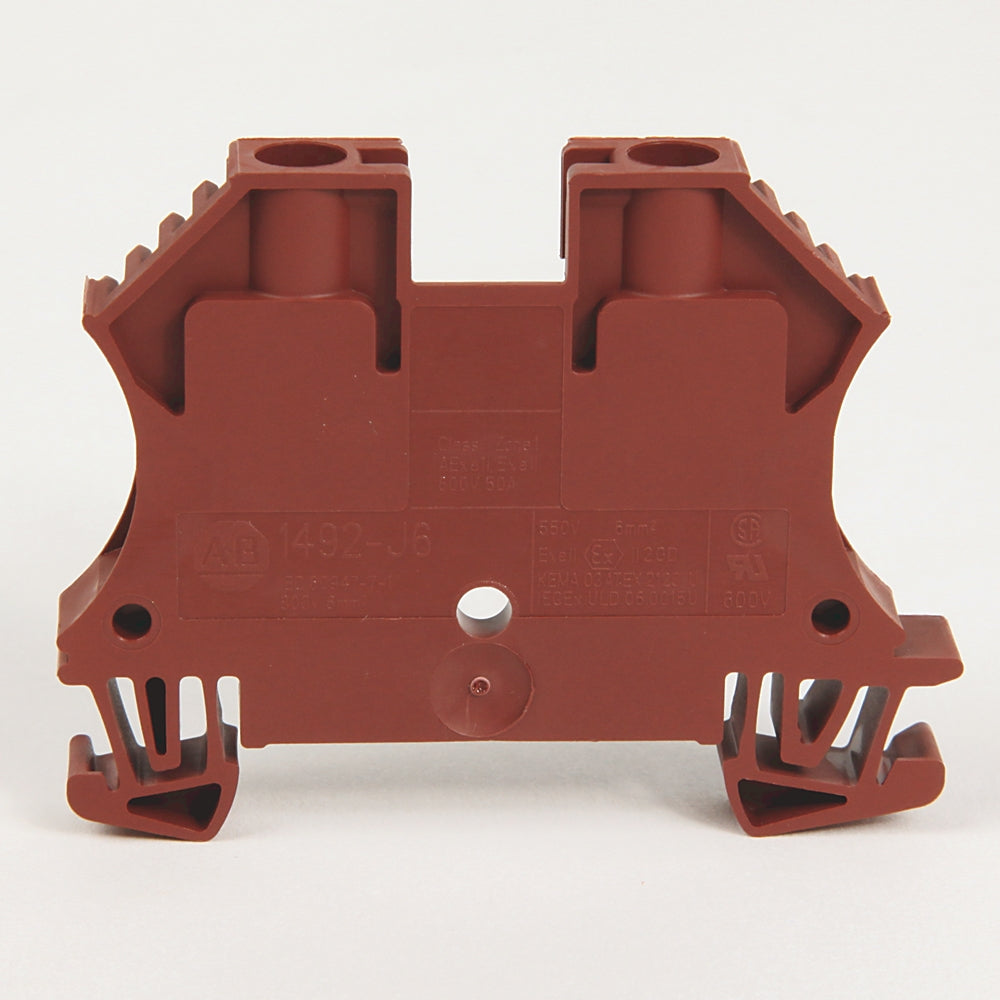

1492-J6 is a 6 square millimeter feed-through screw connection terminal block designed for reliable electrical connections in industrial control applications. The 1492-J6 features a copper current bar with tin-plated surface, counter-sinking of clamping screws, and multiple center jumper options for flexible wiring configurations. This terminal block is certified to IEC, CSA, and ATEX standards and operates across a wide temperature range suitable for demanding industrial environments. Key Specifications
- Part Number: 1492-J6
- Manufacturer: Allen-Bradley
- Wire Size: #22-8 AWG (6 mm²)
- Voltage Rating: 600 V AC/DC
- Maximum Current: 50 A
- Terminal Size: 8.1 x 60 x 39.5 mm
- Temperature Range: -50 to 120 °C
- Connection Type: Screw Terminal
- Tightening Torque: 0.5-0.8 N·m
- Wire Strip Length: 12 mm
- Density: 123 pcs/m
Specifications
- Part Number: 1492-J6
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Family : Feed-Through Terminal Block
- Type : Screw Connection Terminal Block
- Voltage : 600 V
- Connection : Screw Terminal
- Frame Size : 8.1 x 60 x 39.5 mm
- Temp Rating : -50 to 120 °C
- Wire : #22-8 AWG
- Amperage Maximum : 50 A
- Wire stripping length : 12 mm
- Tightening Torque : 0.5-0.8 N·m
Product Data
- Temp Rating : -50 to 120 °C
