Product Info
- Manufacturer:Allen-Bradley
- Sub-Category:Tools
Description
1492-J10

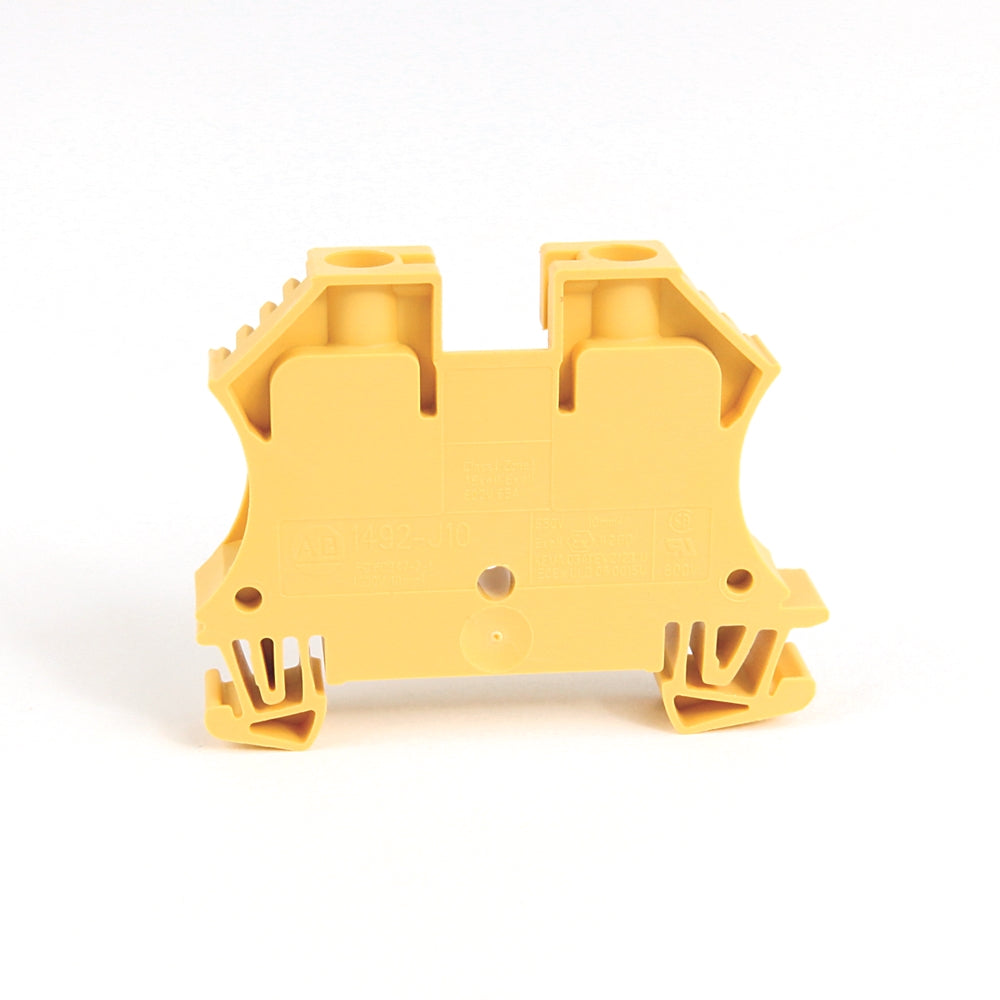

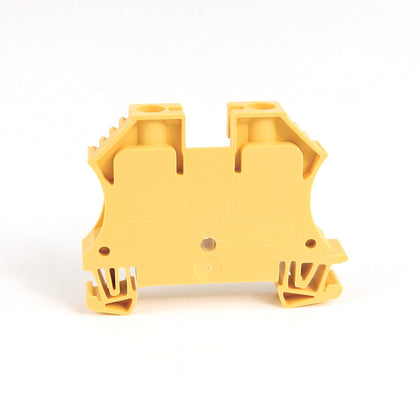

1492-J10 is a 1-pole feed-through terminal block from Allen-Bradley designed for reliable electrical connections in industrial applications.1492-J10 features a screw connection type with a maximum current rating of 65 amps and voltage rating of 600V AC/DC. It supports conductor sizes from 16 to 6 AWG and mounts easily on a 35 mm DIN rail. The terminal block is UL recognized and certified to CSA and IEC standards, ensuring safety and performance. Its compact dimensions are approximately 0.39 in x 1.56 in x 2.36 in (HxWxD).
- Key Specifications
- Amperage: 65 Amps
- Voltage Rating: 600V AC/DC
- Poles: 1
- Mounting Type: 35 mm DIN Rail
- Connection Type: Screw Feed-Through
- Conductor Size Range: 16-6 AWG
- Certifications: UL, CSA, IEC
- Dimensions (HxWxD): 0.39 x 1.56 x 2.36 inches
- Series/Frame: Bulletin 1492
Specifications
- Part Number: 1492-J10
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Circuit Breaker
- Item Subcategory : Tools
Product Data
- Weight : 1.05
