Description
1418N4D6

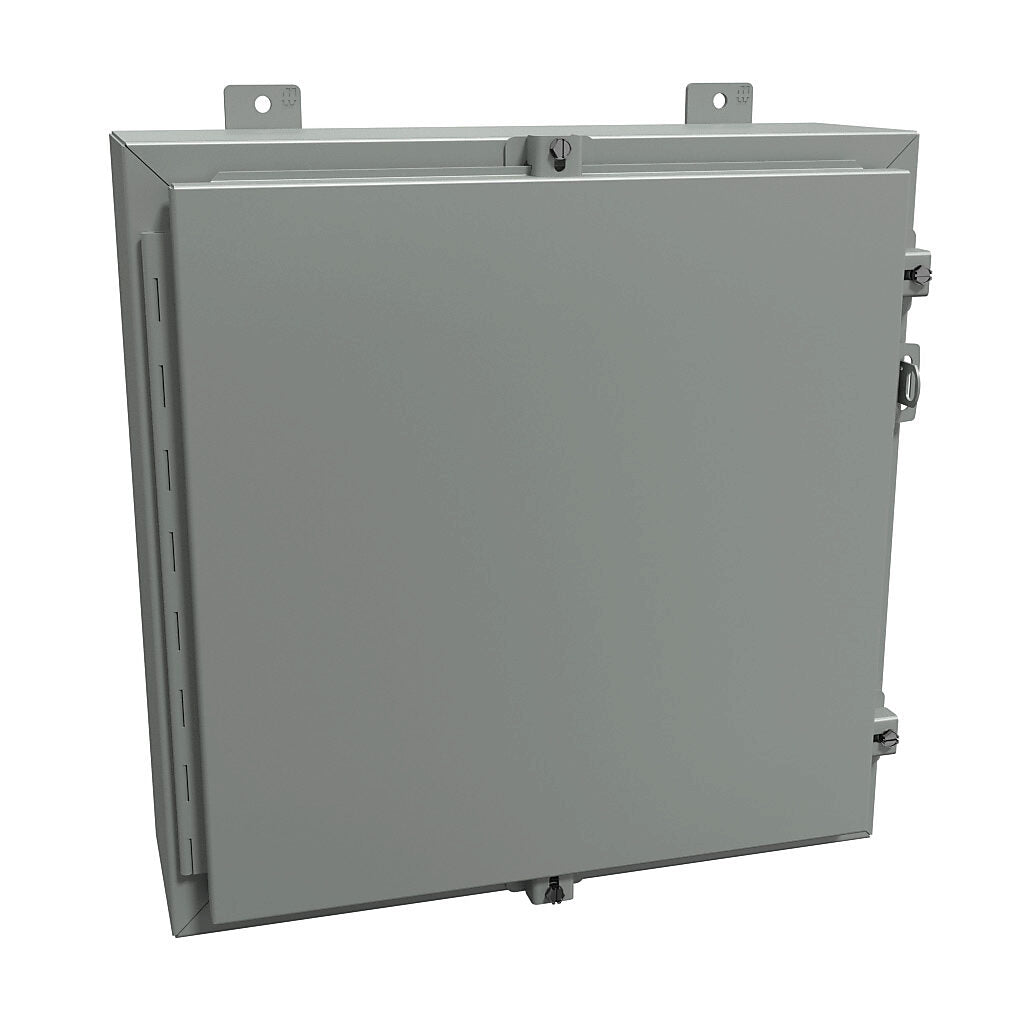

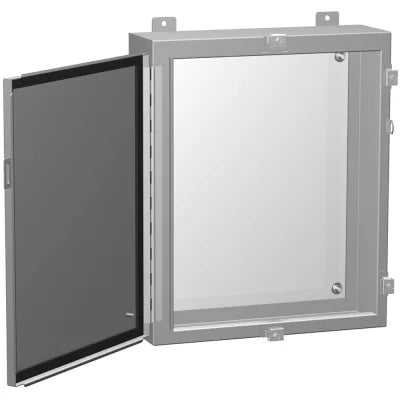

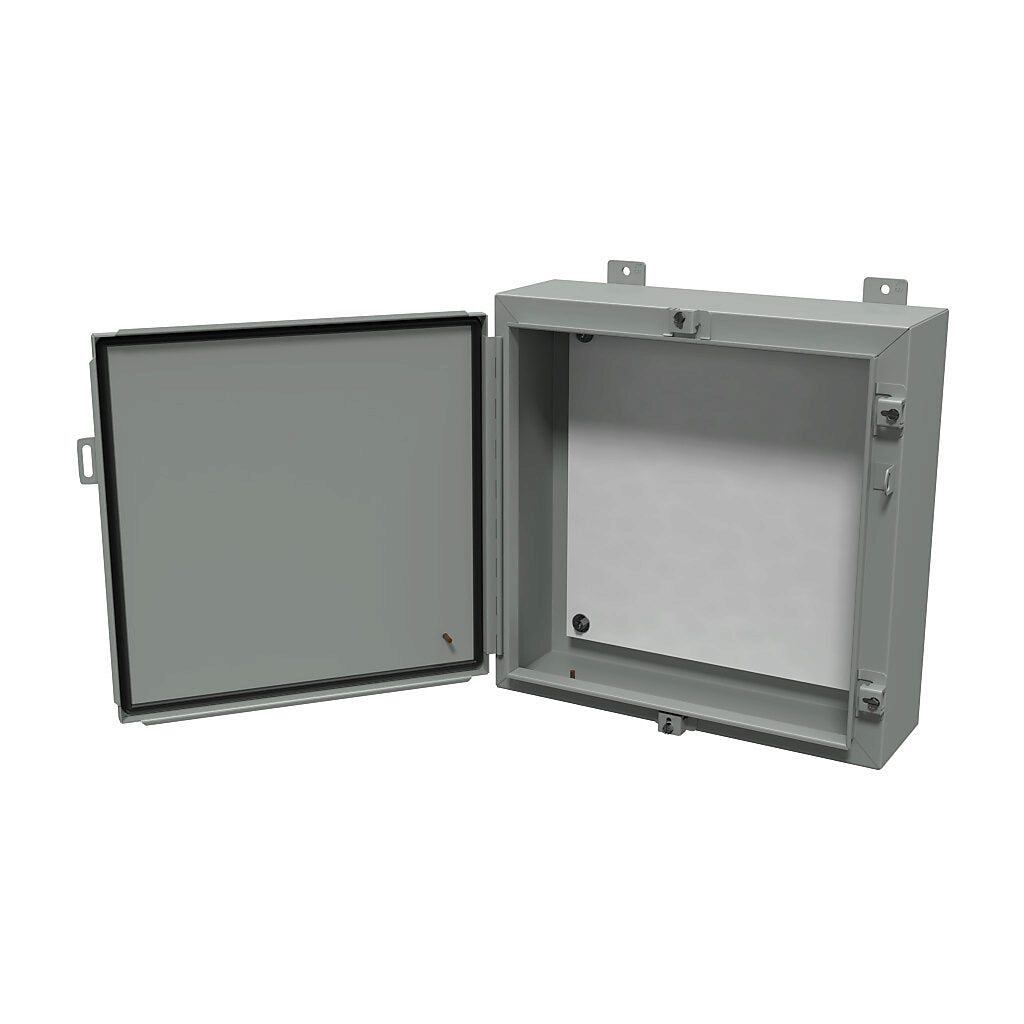

1418N4D6 is a Hammond Manufacturing steel NEMA 4 wallmount enclosure measuring 20 x 20 x 6 inches with a panel included. This enclosure is designed for industrial applications requiring robust protection.The 1418N4D6 enclosure is fabricated from 14 gauge steel with a powder-coated ANSI 61 gray finish. It features a continuous hinge door with clamps and welded brackets for secure enclosure mounting. It meets NEMA Types 4 and 4X standards, providing IP66-rated protection against dust and water ingress. The enclosure complies with CSA, UL 508A, and CE standards, making it suitable for harsh environments. A grounding stud is provided for electrical safety.
- Key Specifications
- Dimensions: 20 in Height x 20 in Width x 6 in Depth
- Material: 14 Gauge Steel
- Finish: Powder Coated ANSI 61 Gray
- Mounting Type: Wallmount with Welded Brackets
- Door: Continuous Hinge with Clamps
- Panel: Included
- Standards: NEMA 4, 4X, CSA, UL 508A, CE
- IP Rating: IP66
- Weight: Approximately 40 lbs
- Grounding Stud: Provided
- RoHS and REACH Compliant
- Part Number: 1418N4D6
- Manufacturer : Hammond
- Brand : Hammond Mfg
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- UPC : 623980378800
- GTIN : 00623980378800
- Country of Origin : Canada
- Dimensions : 20"x 20"x 8"
- Weight : 25 lb
- Certification : UL 508A Type 3R,12, 4; CSA Type 3R, 12, 4; Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66; NEMA Type 3R, 4, 12 and 13; IEC 60529, IP66
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
