Description
1418N4ALC6

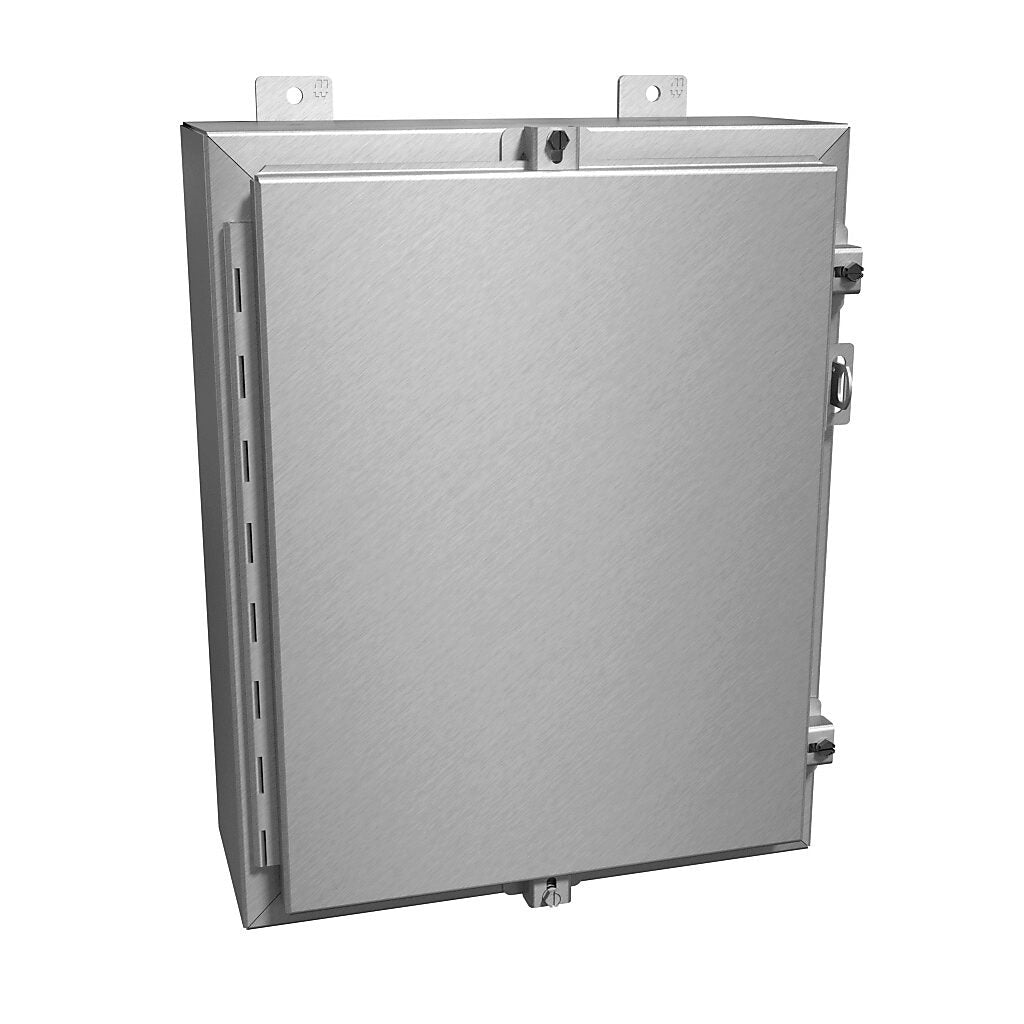

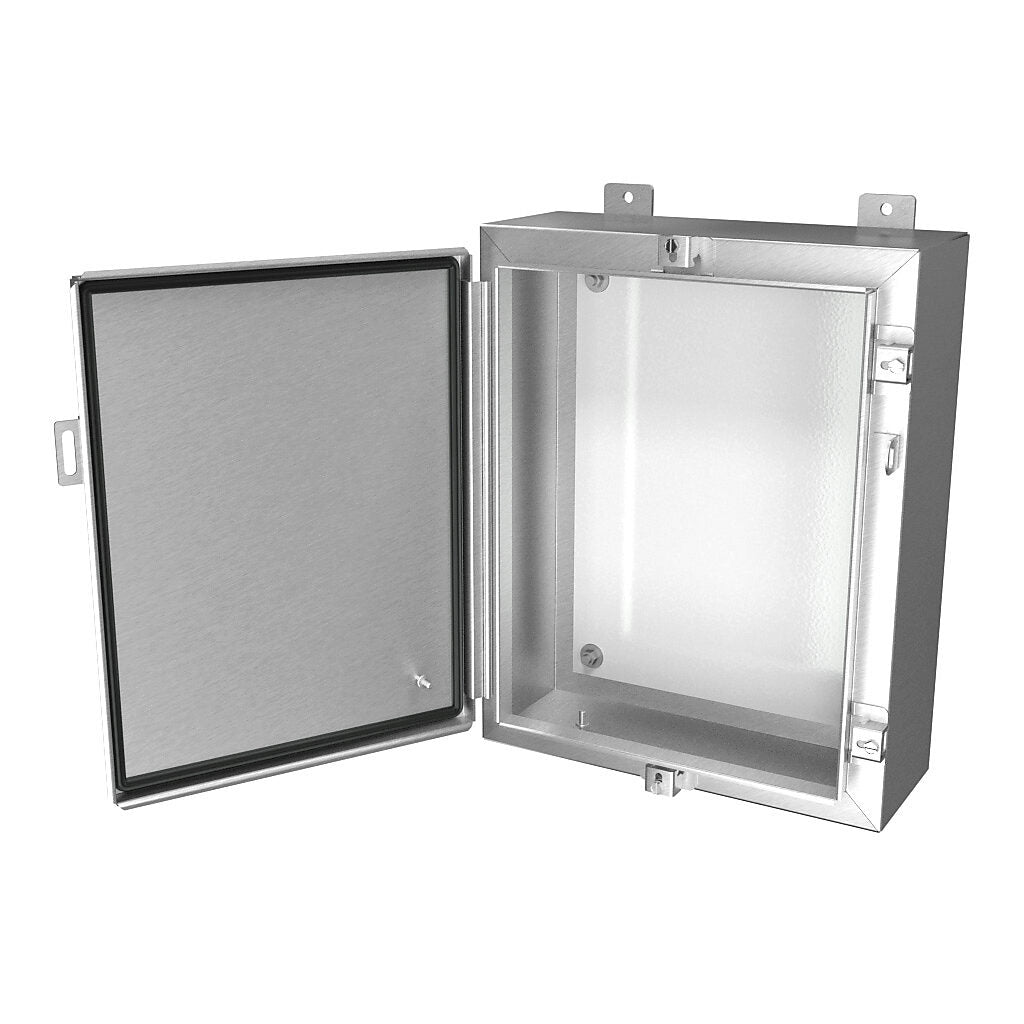

1418N4ALC6 is a Hammond aluminum wall mount enclosure measuring 20 x 16 x 6 inches, designed for robust electrical and control housing applications.This enclosure features a continuous hinge door with clamps and includes a removable panel sized 17 x 13 inches. It is fabricated from 0.09 inch Type 5052 H-32 aluminum, providing corrosion resistance and durability. Rated NEMA 4, 4X, 12, and 13 with IP66 protection, it is suitable for indoor and outdoor use, protecting against dust, water, and corrosion. The enclosure includes welded mounting brackets and a grounding stud for secure installation and safety.
- Key Specifications
- Dimensions: 20 in Height x 16 in Width x 6 in Depth (508 x 406 x 152 mm)
- Material: 0.09" Type 5052 H-32 Aluminum
- Mounting Type: Wall Mount with welded brackets
- Panel Size: 17 in L x 13 in W removable panel
- Enclosure Rating: NEMA 4, 4X, 12, 13; IP66
- Door: Continuous hinge with clamps
- Weight: 16 lbs (7.26 kg)
- Grounding stud included
- Lock: Padlock provision
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
Specifications
- Part Number: 1418N4ALC6
- Manufacturer : Hammond
- Brand : Hammond Mfg
- Category : Circuit Breaker
- Item Subcategory : Enclosure
Product Data
- UPC : 62398038310
- GTIN : 00623980383101
- Country of Origin : Canada
- Dimensions : 20" x 16" x 6"
- Weight : 16 lb
- Certification : UL 508A Type 4, 4X, 12 and 13; CSA Type 4, 4X, 12 and 13; Complies with NEMA Type 4, 4X, 12 and 13 IEC 60529, IP66; NEMA Type 4, 4X, 12 and 13; IEC 60529, IP66
