Product Info
- Manufacturer:Allen-Bradley
- Sub-Category:Molded Case
Description
140M-C2E-B63

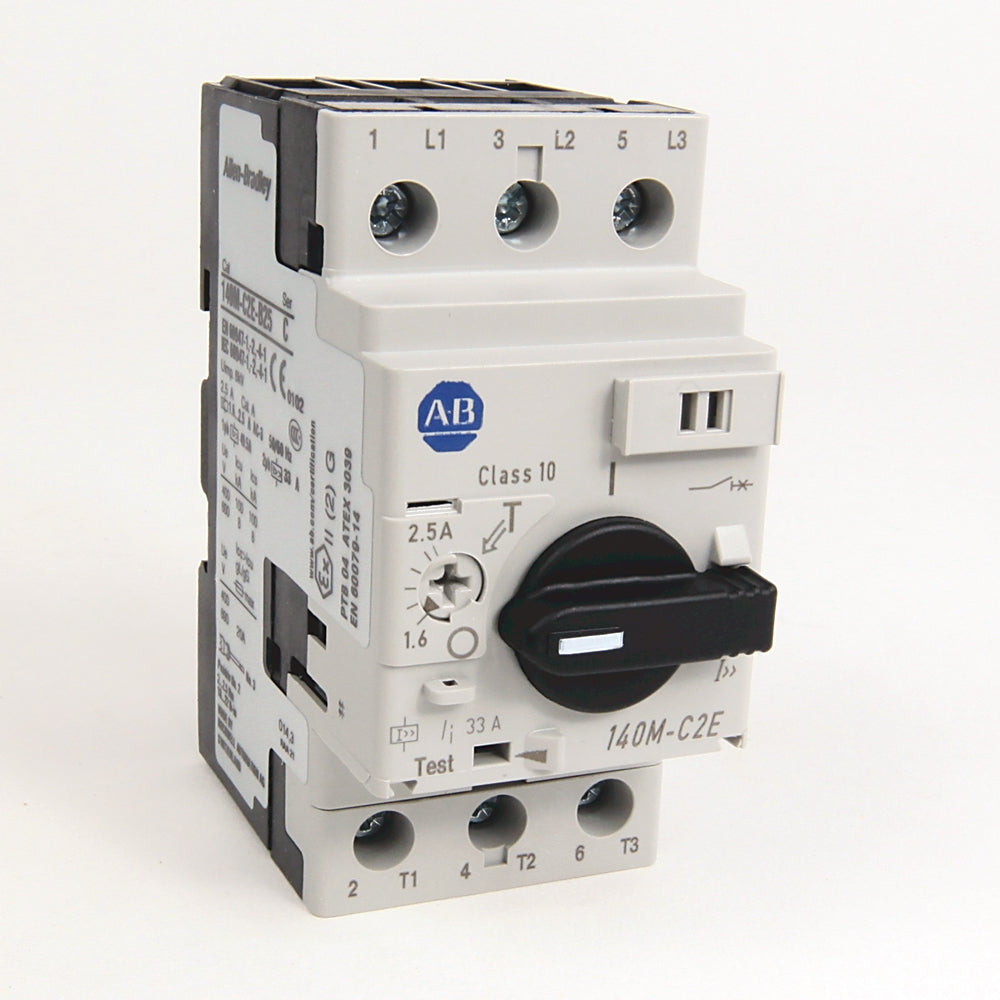

140M-C2E-B63 is a 3-pole motor protection circuit breaker from Allen-Bradley, designed for reliable protection in motor branch circuits. This device features adjustable thermal overload protection and fixed magnetic trip, suitable for a wide range of industrial applications. The 140M-C2E-B63 offers a thermal trip range of 4 to 6.3 amps and is built on the C-frame for compact DIN rail mounting. It provides manual switching, overload protection, and short-circuit protection for motor loads. The breaker is rated for up to 600VAC and features a visible trip indication for easy troubleshooting. It is UL listed as a Manual Motor Controller and Manual Self-Protected Combination Motor Controller, meeting NEC and CEC requirements for motor branch circuit protection.
- Part Number: 140M-C2E-B63
- Manufacturer: Allen-Bradley
- Type: Motor Protection Circuit Breaker
- Frame: C Frame
- Number of Poles: 3
- Rated Current: 4 - 6.3 A
- Rated Voltage: 600 VAC
- Mounting Type: DIN Rail
- Interrupt Rating: 100 kA @ 400/415VAC
- Trip Unit: Adjustable Thermal, Fixed Magnetic (13 x In)
- Standards: UL 508, CSA 22.2 No.14, IEC 60947-2
- Visible Trip Indication
Specifications
- Part Number: 140M-C2E-B63
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Bulletin 140M
- Voltage : 600
- Amperage : 6.3
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : I - Instantaneous
- Protection : Magnetic Only
Product Data
- GTIN : 10662468964354
- Weight : 5
