Description
12SFLSJ100

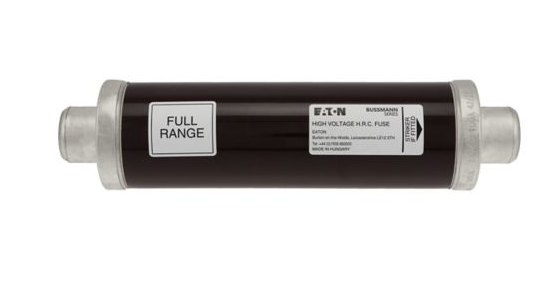

12SFLSJ100 is a medium voltage DIN fuse from Edison Bussmann designed for reliable fault protection in electrical systems.12SFLSJ100 features a 100 ampere current rating and 12 kV voltage rating with a 50 kA interrupting capacity, ensuring high performance in medium voltage applications. The fuse is full range with a DIN mounting style and includes a striker for easy operation.
- Amperage: 100 A
- Voltage: 12 kV AC
- Interrupt Rating: 50 kA at 12 kV
- Mounting Type: DIN clip-in
- Fuse Type: Full range medium voltage fuse
- Includes striker for operation
- Manufacturer: Edison Bussmann
- Construction Size: Approximately 88 x 292 mm
Specifications
- Part Number: 12SFLSJ100
- Manufacturer : Edison||Bussmann
- Brand : Edison
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 12000
- Amperage : 100
- AIC rating : 50kA@12kV
- Connection : Ferrule
- Diameter : 3
- Class Rating : J
- Barrels : 1
Product Data
- Weight : 4
