Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
129D686G02

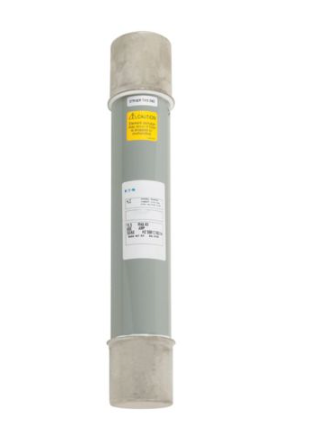

129D686G02 is an Eaton medium voltage expulsion fuse designed for reliable circuit protection using boric acid as the interrupting medium.This expulsion fuse features a complete assembly including fuse mounting, fuse holder with spring and shunt assembly, refill unit, and an exhaust control device suitable for indoor applications. It meets ANSI standards for interrupting ratings and is designed to safely interrupt fault currents by expelling gases and water vapor. The fuse is intended for use in medium voltage systems and requires altitude derating above 3300 feet. It provides effective protection with a discharge filter to moderate exhaust and noise without affecting interrupting capability.
- Key Specifications
- Fuse Type: Expulsion Fuse
- Voltage Rating: Medium Voltage (above 1000V to 69,000V)
- Interrupting Medium: Boric Acid
- Mounting Type: Indoor Mounting with Exhaust Control Device
- Standards: ANSI Compliant
- Includes: Fuse Mounting, Fuse Holder, Refill Unit, Exhaust Control Device
- Altitude Derating Required Above 3300 Feet
- Application: Utility and Industrial Medium Voltage Protection
Specifications
- Part Number: 129D686G02
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 5080
- Amperage : 18
- Connection : Ferrule
- Diameter : 3
- Class Rating : R
- Barrels : 2
- Clip Center : 12
Product Data
- Weight : 20
