Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
125E1C2.75

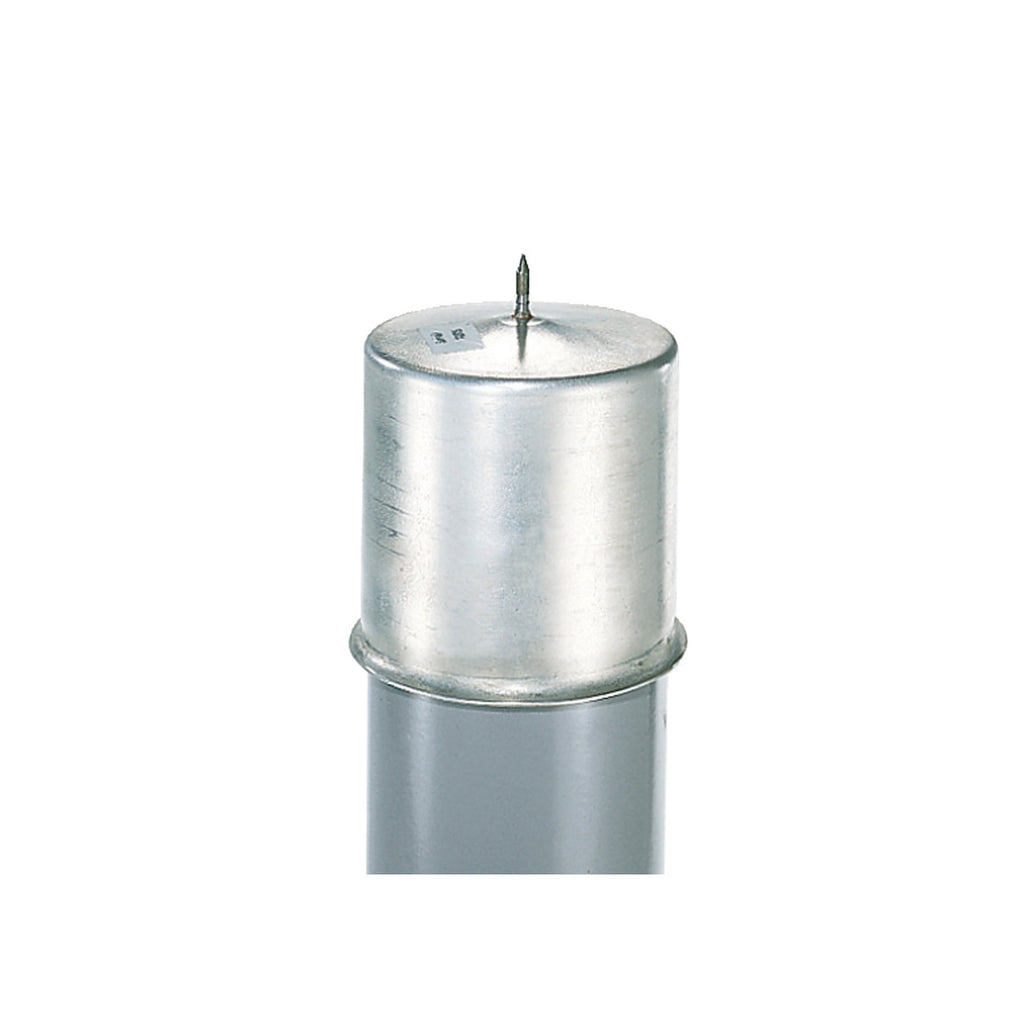

125E1C2.75 is a Littelfuse E Rated Medium Voltage Fuse designed for reliable protection in power distribution systems. This fuse features a 2750VAC voltage rating and a 125A current rating, making it suitable for a variety of medium voltage applications including transformers, feeders, and substations. The 125E1C2.75 is a cartridge-style, single barrel fuse with a mechanical indicator for easy status monitoring. It is constructed for ferrule mounting and provides current-limiting protection with an interrupt rating of 80 kA at 2.75 kVAC. The fuse is part of the Littelfuse E-Rated series, known for robust performance and compliance with NEMA standards for medium voltage fuses.
- Part Number: 125E1C2.75
- Manufacturer: Littelfuse
- Series: E-Rated
- Mounting Type: Ferrule Mounted
- Style: Cartridge, Single Barrel
- Voltage Rating: 2750VAC
- Current Rating: 125A
- Interrupt Rating: 80 kA at 2.75 kVAC
- Indicator: Mechanical
- Application: Transformers, Feeders, Substations
- Diameter: 3 inches
- Length: 10.875 inches
Specifications
- Part Number: 125E1C2.75
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : E Rated
- Type : E Rated
- Voltage : 2750
- Amperage : 125
- AIC rating : [email protected]
- Diameter : 3
- Class Rating : E
- Barrels : 1
- Clip Center : 7
Product Data
- UPC : 079458040685
- GTIN : 00079458040685
- Weight : 7
