Product Info
- Manufacturer:Eaton
Description
10316H2200

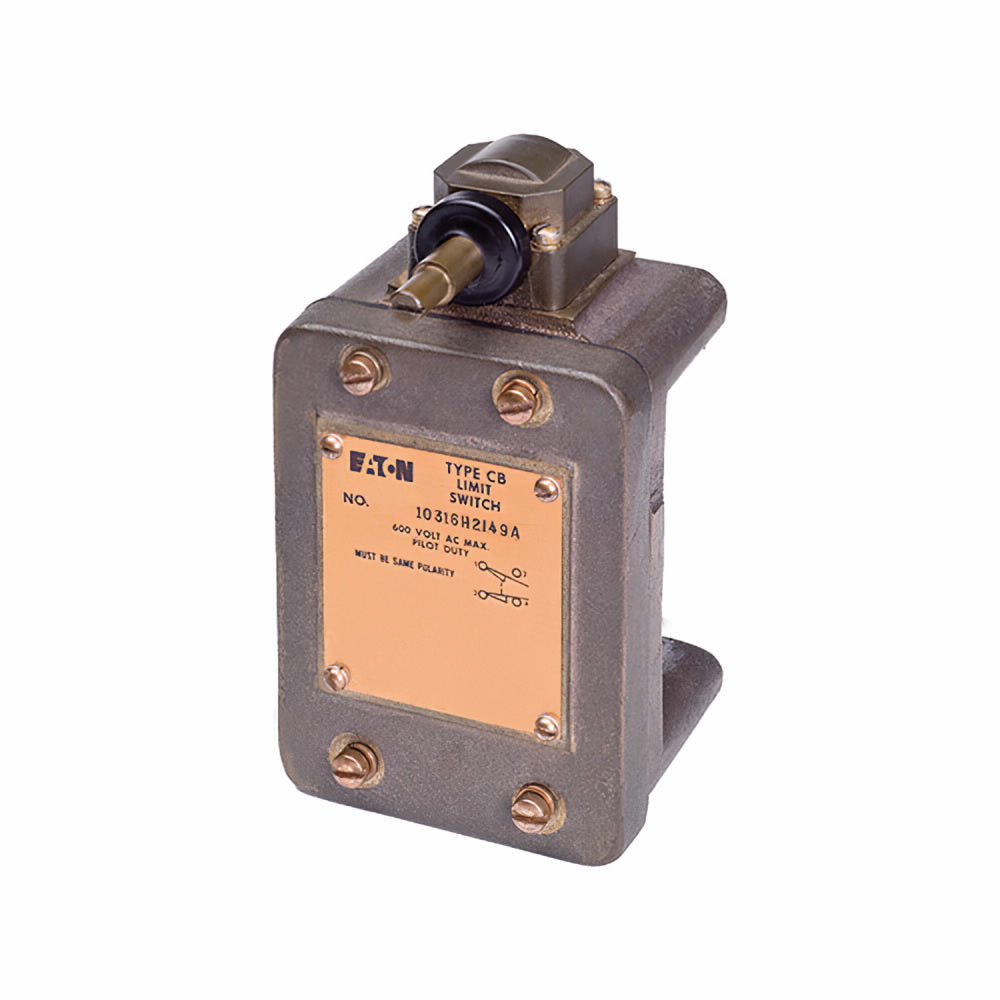

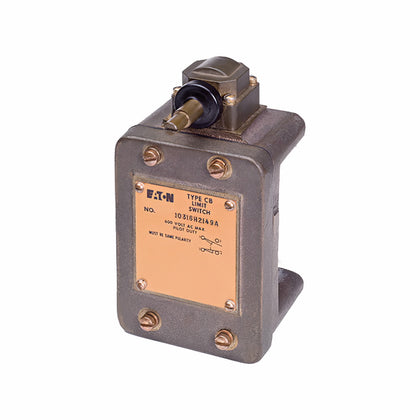

10316H2200 is an Eaton 10316 Series hazardous location limit switch with a side rotary actuator and die cast aluminum enclosure, designed for industrial sensing and position limit applications in demanding environments. This precision device provides snap-action switching with 1NO-1NC contacts, screw terminal connection, and is rated for up to 10 A at 600 V AC and 0.2 A at 125 V DC in hazardous classified locations with multiple NEMA environmental ratings. Key Specifications
- Part Number: 10316H2200
- Manufacturer: Eaton
- Functions: Hazardous location side rotary limit switch, 1NO-1NC contacts
- Connection: Screw terminal
- Amperage max: 10 A (AC)
- Amperage min: 0.2 A (DC)
- Operating temperature max: 200 F
- Operating temperature min: -20 F
- NEMA rating: NEMA 1, NEMA 4, NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG, NEMA 13
- Enclosure material: Die cast aluminum
Specifications
- Part Number: 10316H2200
- Manufacturer : Eaton
- Brand : Eaton
- Category : Sensors
- Connection : Screw terminal
- Functions : Hazardous location side rotary limit switch, 1NO-1NC contacts
- Nema Rating : NEMA 1, NEMA 4, NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG, NEMA 13
- Amperage Maximum : 10 A
- Amperage Minimum : 0.2 A
- Switch Type : Side rotary
- Operating Temperature Maximum Celsius : -20 F to 200 F
- Metal Type : Die cast aluminum enclosure
