10250TLL - Eaton 30mm Selector Switch Lever Blue, Heavy Duty, 3-Position, NEMA 3/3R/4/4X/12/13

10250TLL

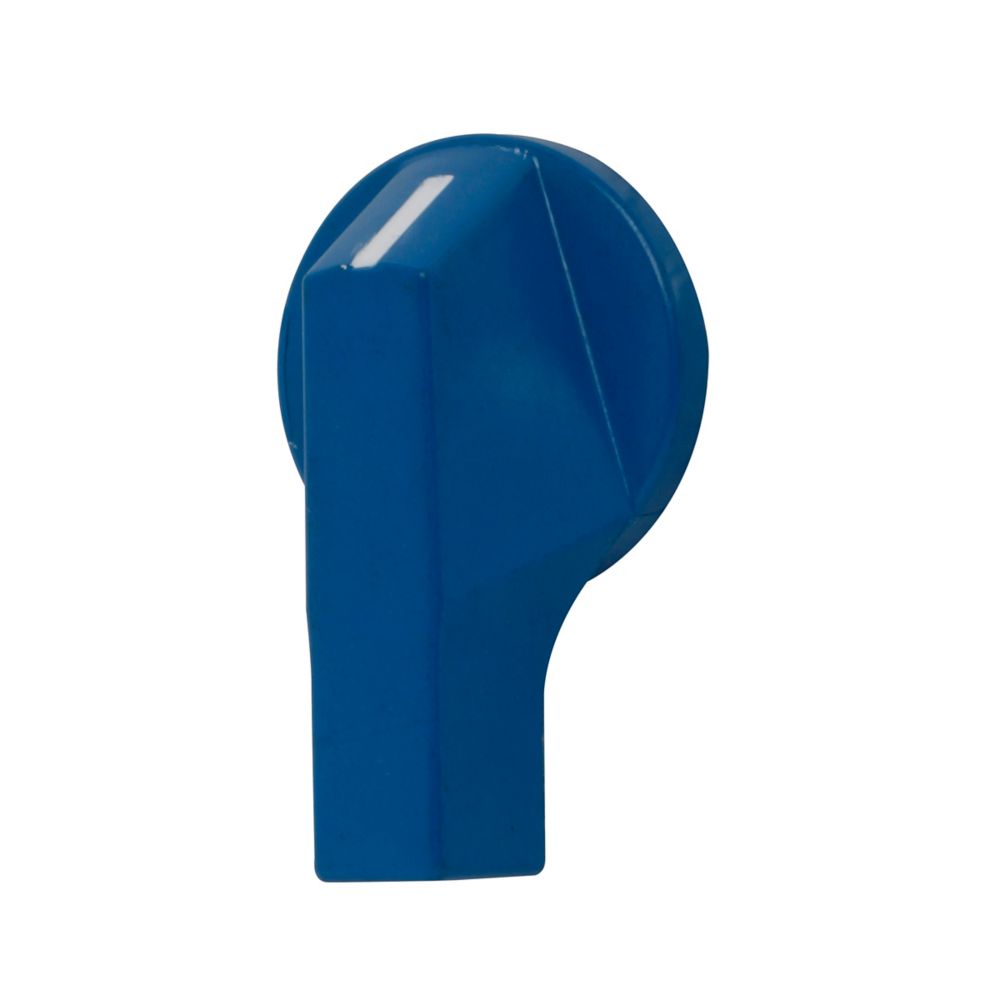

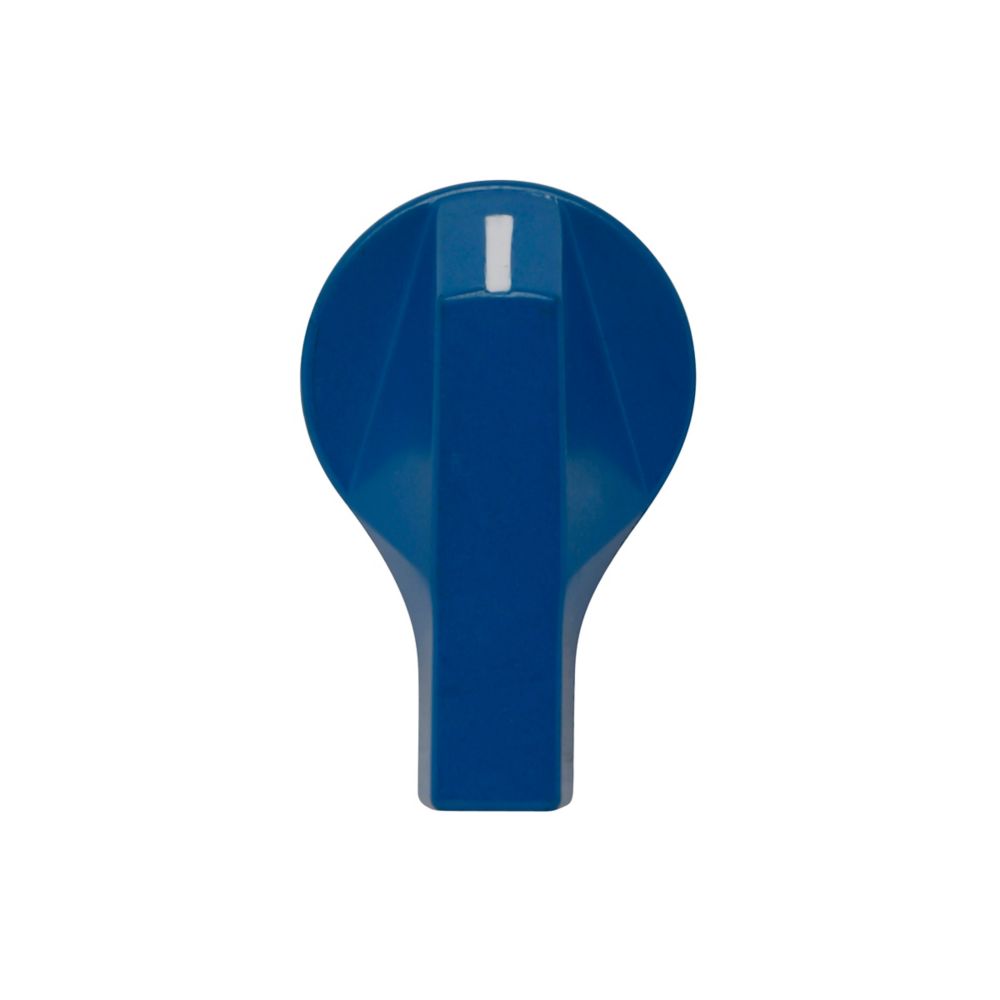

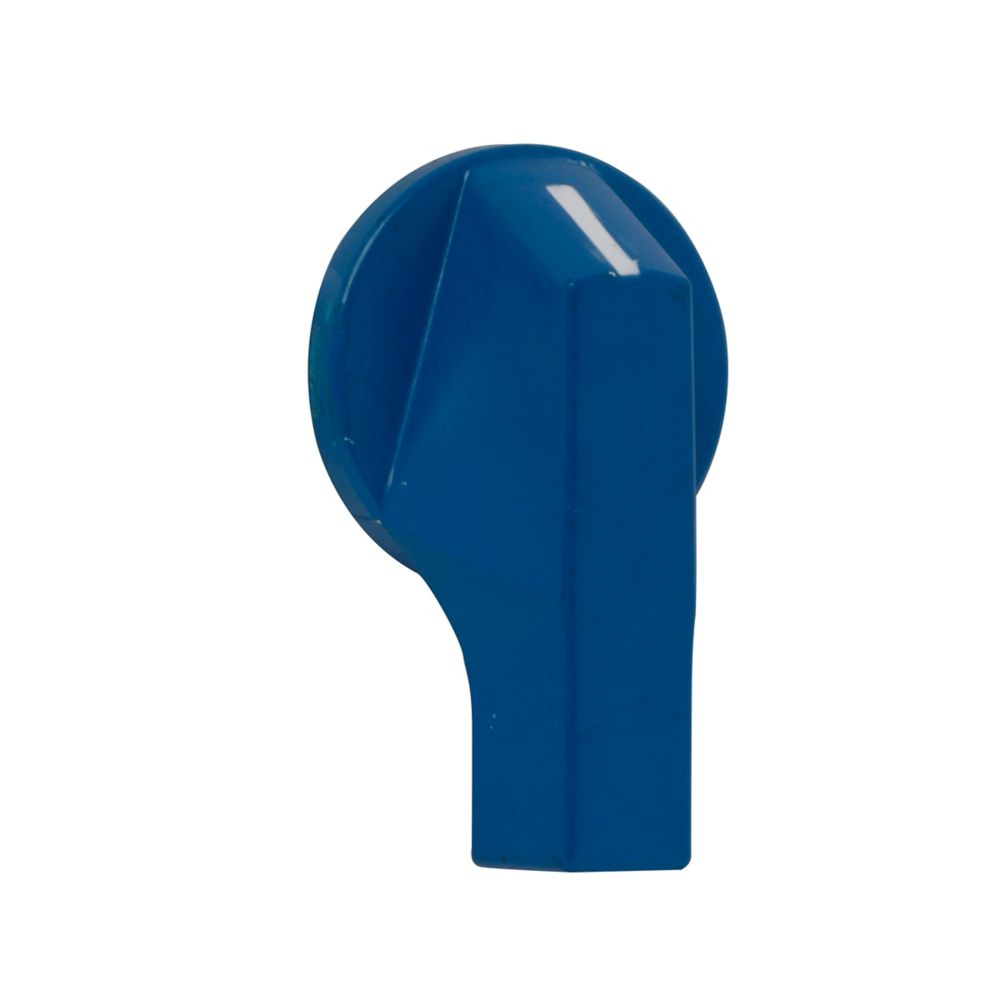

10250TLL is an Eaton heavy-duty selector switch operator lever designed for 30.5 mm control stations in demanding industrial environments.

The 10250TLL features a blue extended lever actuator with watertight and oiltight construction, making it suitable for harsh conditions where reliability and durability are critical. Built with zinc die-cast housing and chrome-plated components, this selector switch operator provides excellent protection against dust, moisture, and other contaminants. The design includes drainage holes to prevent liquid buildup and includes alternate legend plates and spare mounting screws for flexible installation.

• Size: 30.5 mm (30 mm compatible)
• Actuator Type: Extended Lever
• Actuator Color: Blue
• Legend: Blank
• Lever Length: 1 1/2 inch
• Construction: Zinc die-cast with chrome plating
• Environmental Rating: Watertight and oiltight
• Mounting: One-hole panel mount
• Terminal Type: Screw terminals
• Series: 10250T Heavy-Duty Control Stations
• Certifications: UL (NEMA) Type 4, 4X, 12, 13

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 10250TLL
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Pushbutton Switch
• Family : 10250T Series
• Type : 10250T

Product Data

• UPC : 782113203423
• GTIN : 00782113203423
• Country of Origin : Dominican Republic
• Dimensions : 1.5 in x 0.5 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.02
• Certification : UL Listed,CSA Certified,CE Marked
