10250T76G - Eaton 10 Amp 120V AC 1NO-1NC Illuminated Push Button Operator, 30.5mm, Heavy-Duty, NEMA 3/3R/4/4X/12/13, 10250T Series, Green Actuator

10250T76G

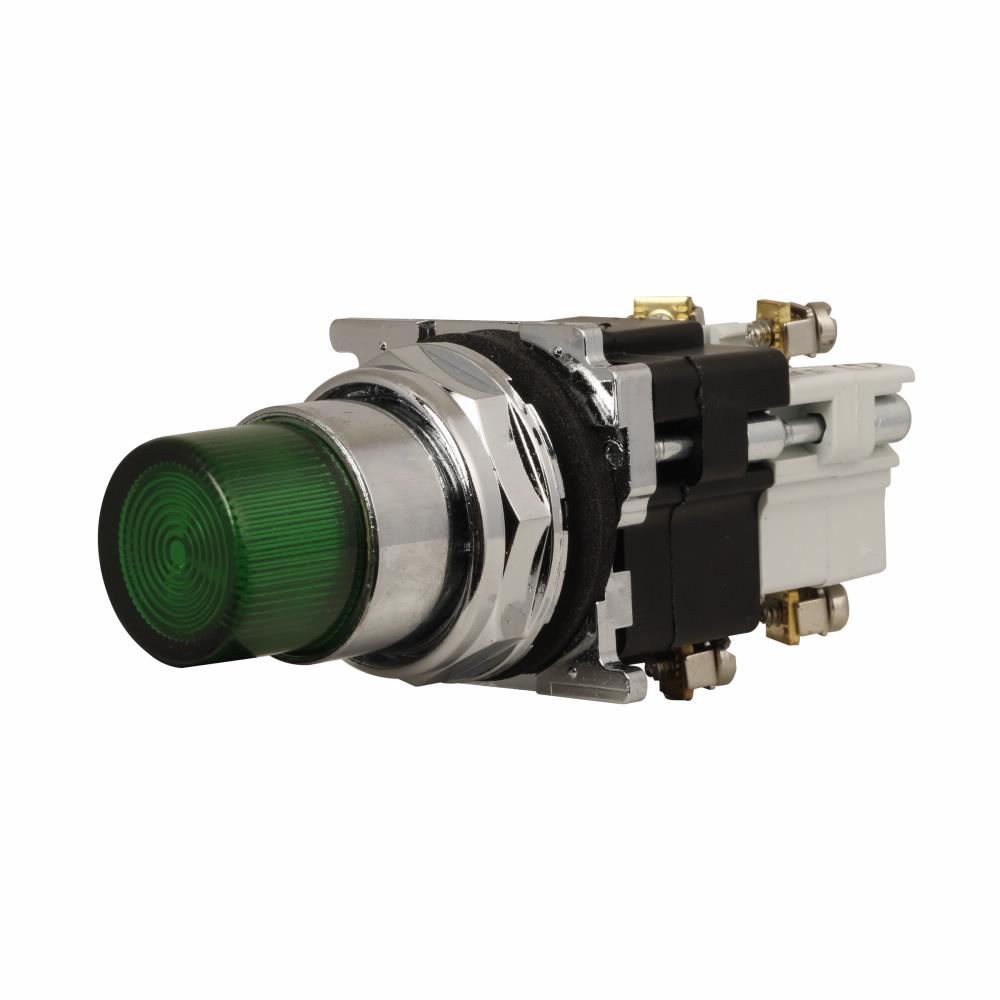

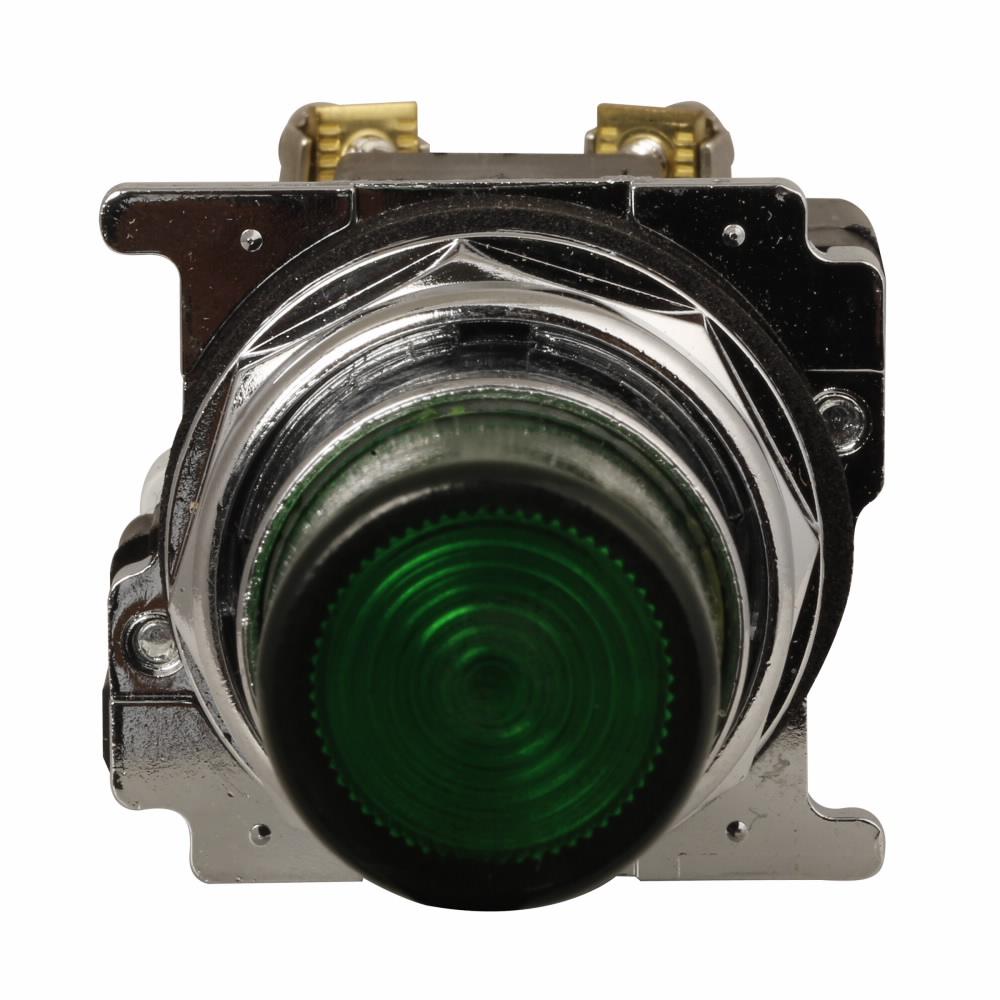

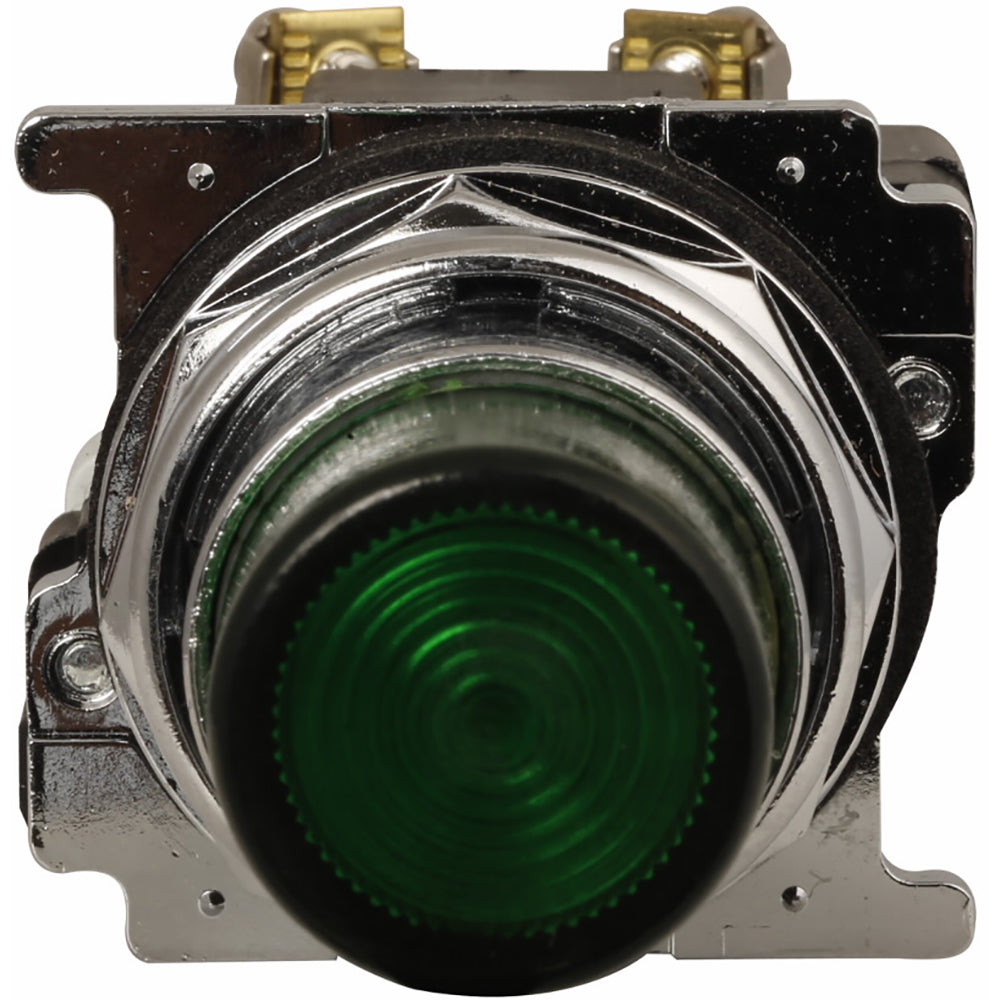

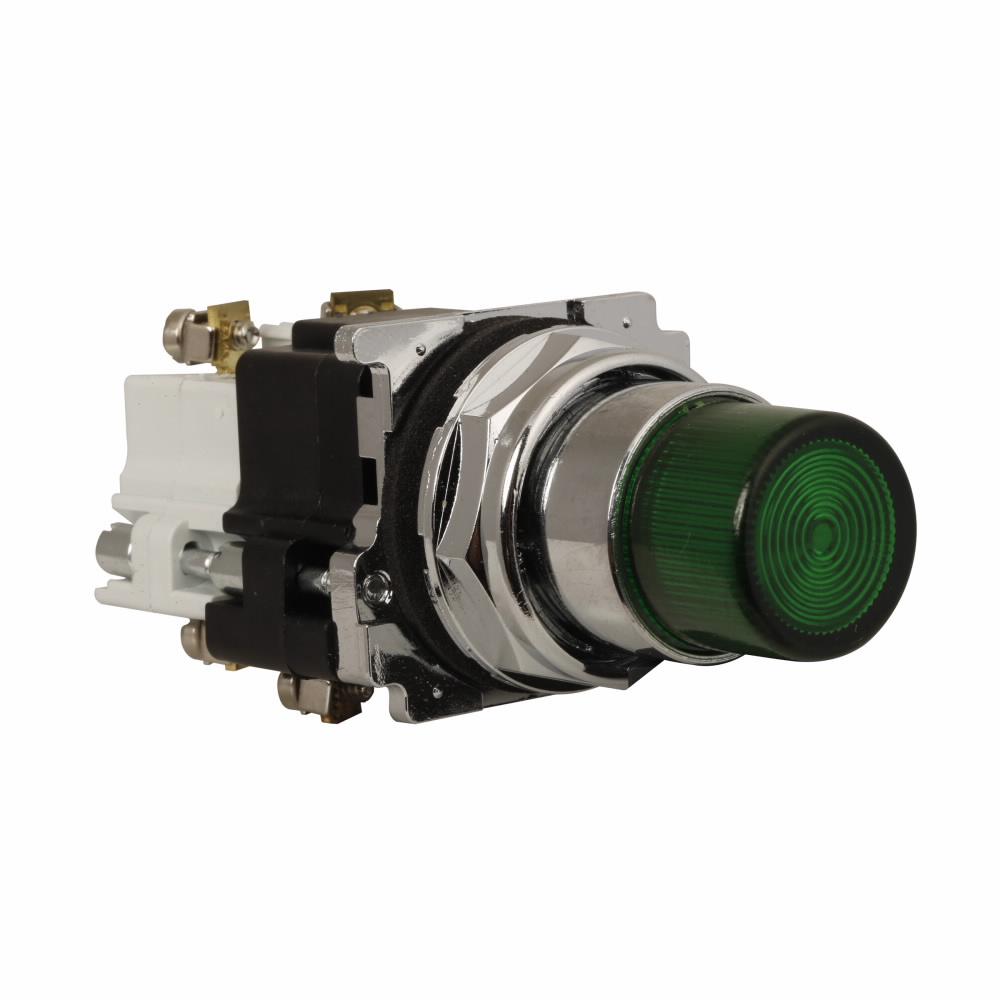

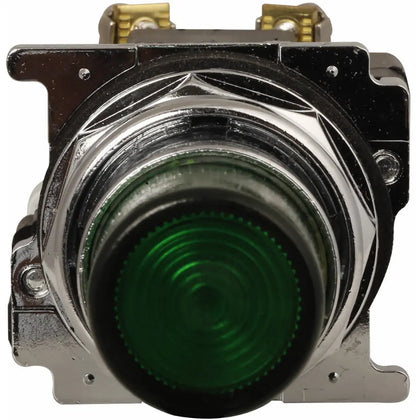

10250T76G is an Eaton heavy-duty illuminated pushbutton switch designed for industrial motor control applications.This 30.5 mm momentary pushbutton features an extended green plastic actuator, incandescent transformer light unit with 120 V operation, and 1NO-1NC contact configuration. It offers heavy-duty watertight/oiltight construction with chrome bezel, suitable for demanding environments rated NEMA 3, 3R, 4, 4X, 12, 13.Key Specifications

• Manufacturer: Eaton
• Series: 10250T
• Type: 30.5 mm Heavy-Duty Watertight/Oiltight
• Amperage: 10 Amp
• Voltage: 120V AC
• Actuator: Extended, Green, Plastic
• Operating Mode: Momentary
• Contact Configuration: 1NO-1NC
• Illumination: Illuminated, Incandescent Transformer, #755 Lamp
• Bezel: Chrome
• Certifications: CSA Certified, UL Listed, CE Marked
• NEMA Rating: 3, 3R, 4, 4X, 12, 13

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 10250T76G
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Part And Accessory
• Family : 10250T Series
• Type : 10250T
• Voltage : 120 AC

Product Data

• UPC : 78211368508
• GTIN : 00782113685083
• Country of Origin : Dominican Republic
• Dimensions : 2.5 in x 4.5 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : UL Listed,CSA Certified,CE Marked
