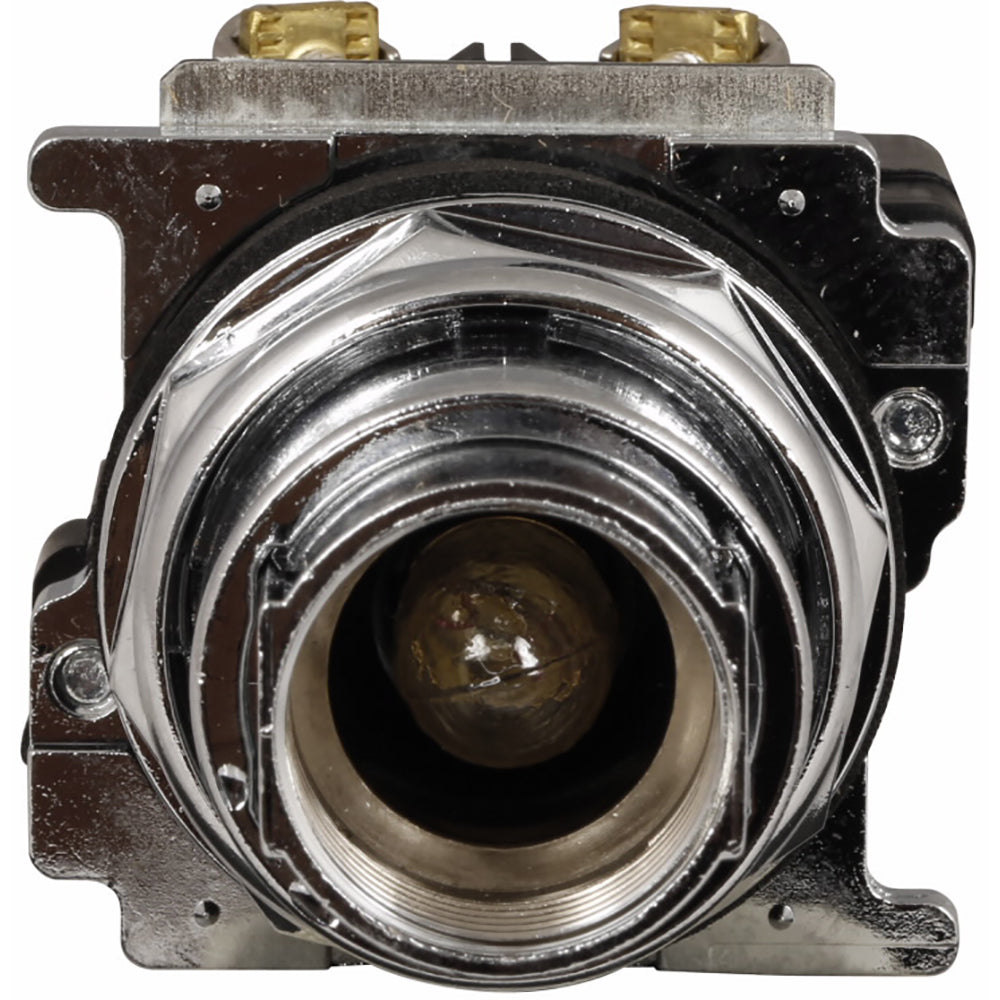

10250T563 - Eaton 30.5 mm Heavy-Duty Watertight/Oiltight Push-Pull Unit Class I Division 2

10250T563

10250T563 - Eaton 30.5 mm heavy-duty watertight/oiltight push-pull unit with illuminated 120 VAC incandescent lamp, designed for industrial control applications.This Eaton 10250T series push-pull operator features a standard actuator with plastic bus, 1NO-1NC contacts, and maintained push-pull operation in two positions. It is Class I Division 2 rated, illuminated with lamp #755 incandescent transformer at 120 VAC, and suitable for panel mounting in harsh environments. Without lens, for use with pushbutton lenses.

• Series: 10250T
• Size: 30.5 mm / 40 mm
• Product Type: Pushbutton, Push-Pull Unit
• Operating Mode: Maintained Push, Maintained Pull
• Number of Positions: 2
• Contact Configuration: 1NO-1NC
• Illumination: Illuminated, Incandescent Lamp #755 with Transformer
• Light Unit Voltage: 120 VAC
• Type: Class I Division 2, Standard Actuator, Plastic Bus
• NEMA Ratings: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Certifications: UL Listed, CSA Certified, CE Marked
• Mounting: Panel Mount, Mounting Hole Size 30.5 mm

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 10250T563
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Switch
• Item Subcategory : Pushbutton Switch
• Family : 10250T Series
• Type : 10250T

Product Data

• UPC : 782113347455
• GTIN : 00782113347455
• Country of Origin : Dominican Republic
• Dimensions : 3.3 in x 2.1 in x 2.4 in (Length/Depth x Height x Width)
• Weight : 0.4 lb
• Certification : UL Listed,CSA Certified,CE Marked
