Product Info
- Manufacturer:Eaton
Description
10250T53P

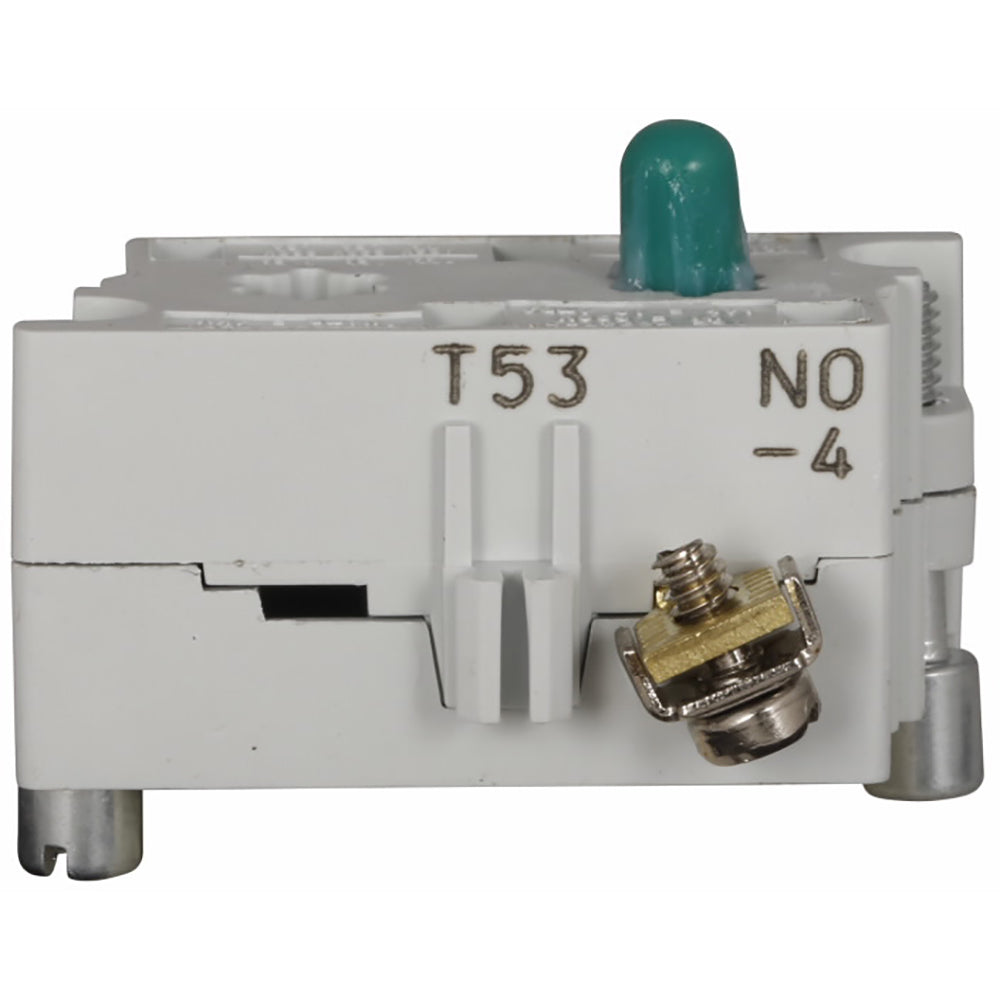

10250T53P is a heavy-duty standard contact block for 30.5 mm pushbutton operators from Eaton.10250T53P features 1NO contact configuration with silver contacts, pressure terminals, and fingerproof shroud for enhanced safety and reliability in industrial control applications.
- Part Number: 10250T53P
- Manufacturer: Eaton
- Series: 10250T
- Type: Heavy-Duty Standard Contact Block
- Size: 30.5 mm
- Contact Configuration: 1NO
- Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
- Material: Die-Cast Zinc
- Terminals: Pressure
- Dimensions: 1.9 in L x 1.3 in W x 2.3 in H
- Certifications: UL Listed, CSA Certified, CE Marked
Specifications
- Part Number: 10250T53P
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Family : 10250T Series
- Type : 10250T
Product Data
- UPC : 782114121467
- GTIN : 00782114121467
- Country of Origin : Dominican Republic
- Dimensions : 1.9 in x 2.3 in x 1.3 in (Length/Depth x Height x Width)
- Weight : 0.05 lb
- Certification : UL Listed,CSA Certified,CE Marked
